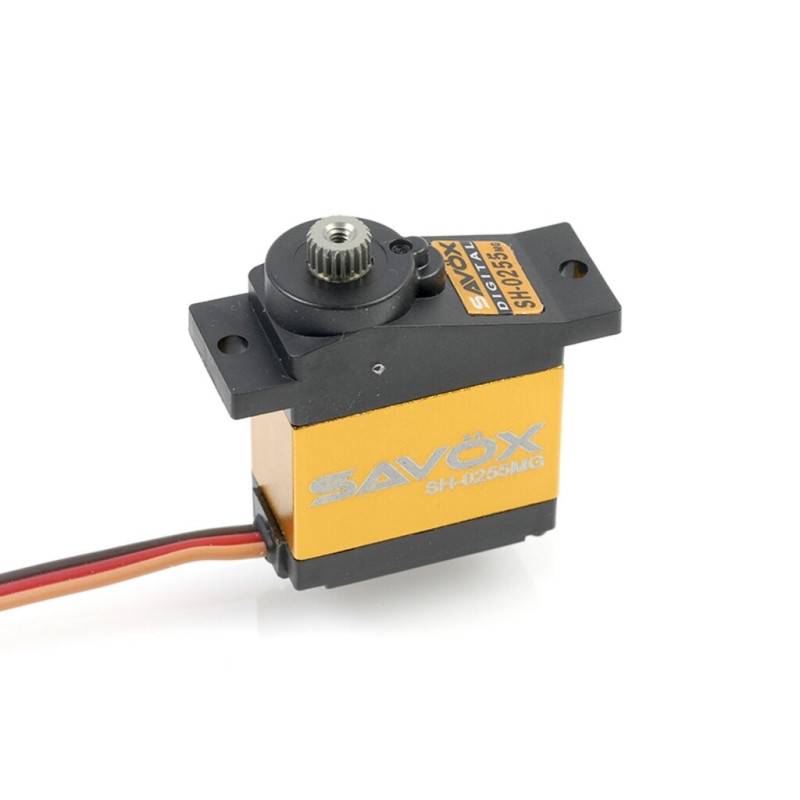

SAVOX SERVO SH-0255MG 6V 4KG .13S

Ref: 240932
Estoque: Indisponível
R$ 255,06
Comprar

The Savox SH-0255MG micro, metal-gear, digital servo has plenty of torque to match much larger standard size servos and outperform other competitive micro-size servos.

Features:

  • Metal gear train ensures durability and longevity.
  • Aluminum middle case allows for cooler operating temperatures.
  • Ideal for small planes, and 450 size helicopters.

Specifications:

  • Torque @4.8v - 3.1kg/43.1oz-in
  • Torque @6v - 3.9kg/54.2oz-in
  • Speed @4.8v - 0.16 sec/60 deg
  • Speed @6v - 0.13 sec/60 deg
  • Dimensions L x W x H (mm):22.8 x 12.0 x 29.4
  • Weight: 15.8g

Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 1200mA @4.8V, 1400mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 90° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 750 → 2250 µ second
  • Maximum Travel: Appx 145° (750 → 2250 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
