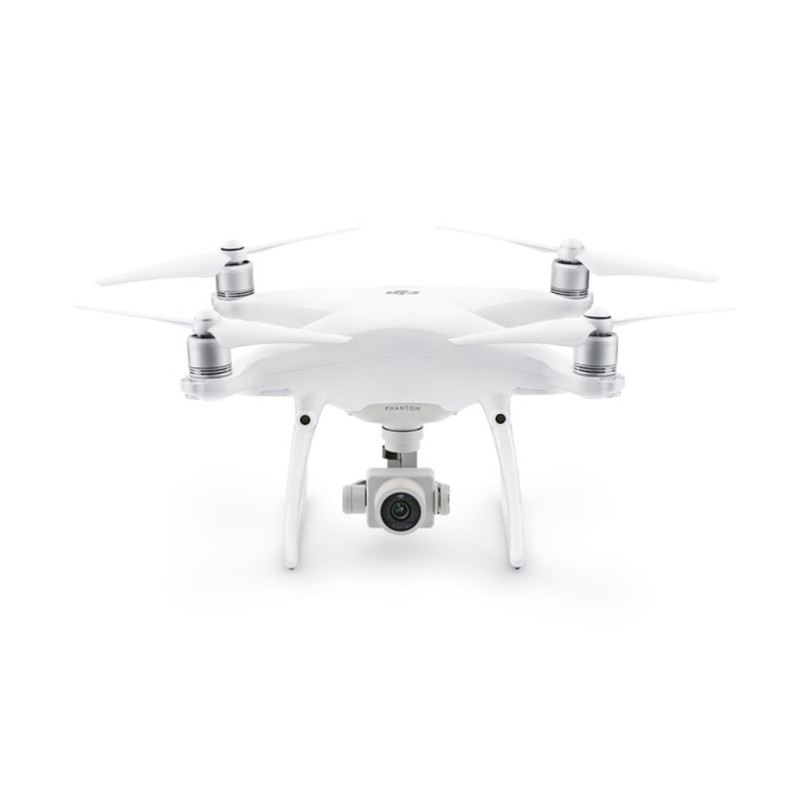

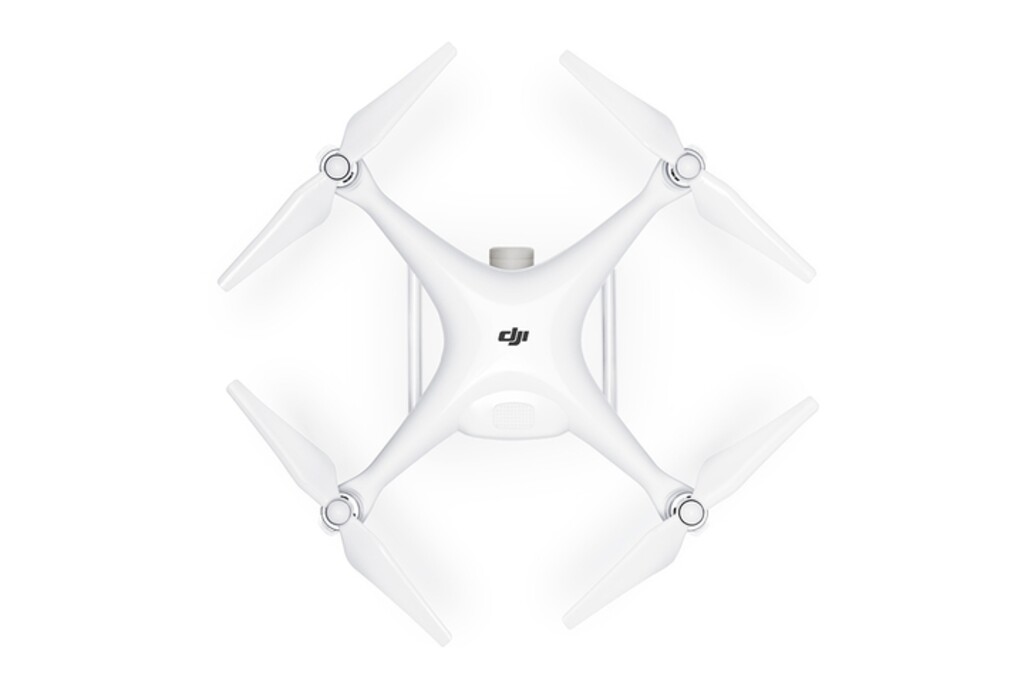

DJI RTF PHANTOM 4 ADVANCED S/TELA

Ref: 235068

Estoque: Indisponível

R$ 6.370,25

Comprar

MAIN FEATURES:

20MP 1 inch CMOS camera, 4K 60fps fluent video shooting and up to 14fps Burst Mode, H.264 and H.265 video coding at 100Mbps

A mechanical shutter is used to eliminate distortion when taking images of fast moving objects or flying at a high speed

Advanced FlightAutonomy system made up of 5 vision sensors, GPS and GLONASS, ultrasonic rangefinder and redundant sensors

Up to 4.3 mi. ( 7km ) super long image transmission range, 2.4GHz ISM working frequency and 220ms low latency, 720P 30fps Live View

More reliable and steady flight thanks to the dual compass modules, dual IMU units and state-of-the-art algorithm to process data

30 minutes' flying and outstanding BMS for extended battery lifetime; rigid titanium alloy and magnesium alloy airframe, even lighter than Phantom 4

Intelligent flight with optimized Waypoints ( Draw ), ActiveTrack, TapFly, Return to Home as well as Gesture Mode for taking selfies at a distance

SPECIFICATIONS:

AIRCRAFTWeight: 1368g ( including battery and propellers )

Diagonal size: 350mm ( excluding propellers )

Max. ascent speed: S-mode: 6m/s; P-mode: 5m/s

Max. descent speed: S-mode: 4m/s; P-mode: 3m/s

Max. speed: S-mode: 45 mph ( 72 kph ); A-mode: 36 mph ( 58 kph ); P-mode: 31 mph ( 50 kph )

Max. tilt angle: S-mode: 42 degree; A-mode: 35 degree; P-mode: 25 degree

Max. angular speed: S-mode: 250 degree/s; A-mode: 150 degree/s

Max. service ceiling above sea level: 19685 feet ( 6000m )

Max. wind speed resistance: 10m/s

Max. flight time: approx. 30 minutes

Operating temperature range: 32 to 104 Deg.F ( 0 to 40 Deg.C )

Satellite positioning system: GPS / GLONASS

Hover accuracy range: vertical: + / - 0.1m ( with Vision Positioning ); + / - 0.5m ( with GPS Positioning ); horizontal: + / - 0.3m ( with Vision Positioning ); + / - 1.5m ( with GPS Positioning )

VISION POSITIONING

Vision system: Forward Vision System, Downward Vision System

Velocity range: 31 mph ( 50 kph ) or less at 6.6ft ( 2m ) above ground

Altitude range: 0 - 33 feet ( 0 - 10m )

Operating range: 0 - 33 feet ( 0 - 10m )

Obstacle sensory range: 2 - 98 feet ( 0.7 - 30m )

FOV: forward: 60 degree ( horizontal ), + / - 27 degree ( vertical ); downward: 70 degree ( front and rear ), 50 degree ( left and right )

Measuring frequency: forward: 10Hz, downward: 20Hz

Operating environment: surface with clear pattern and adequate lighting ( more than 15 lux )

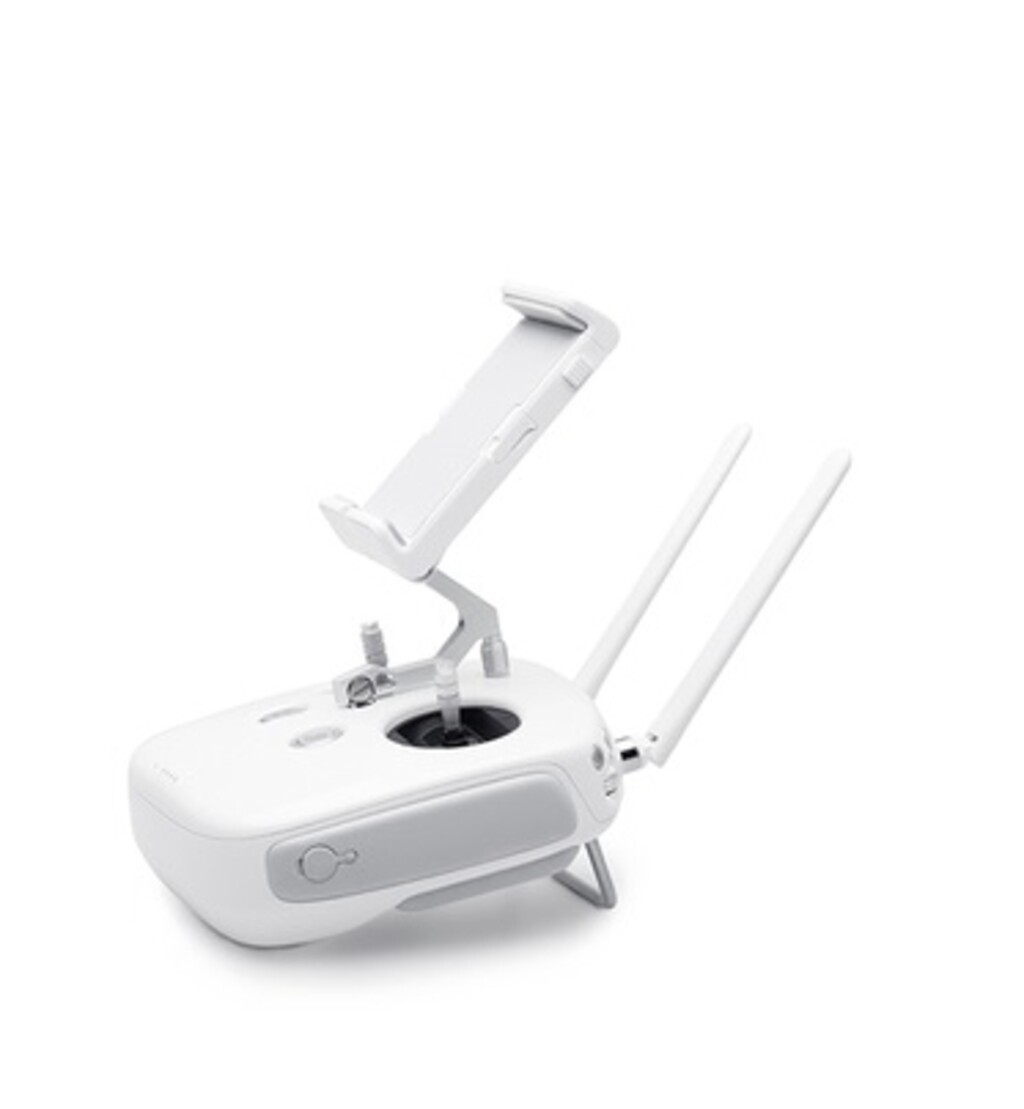

TRANSMITTER

Operating frequency: 2.400 - 2.483GHz

Max. transmission distance: FCC: 4.3 mi. ( 7km ); CE: 2.2 mi. ( 3.5km ); SRRC: 2.5 mi. ( 4km )

Operating temperature range: 32 to 104 Deg.F ( 0 to 40 Deg.C )

Battery: 6000mAh 2S LiPo

Transmitter power ( EIRP ): FCC: 26dBm; CE: 17dBm; SRRC: 20dBm

Operating current / voltage: 1.2A at 7.4V

Video output port: GL300C: USB

Mobile device holder: GL300C: for tablets ans smart phones ( not included )

INTELLIGENT FLIGHT BATTERY

Capacity: 5870mAh

Voltage: 15.2V

Battery type: 4S LiPo

Energy: 89.2Wh

Net weight: 468g

Charging temperature range: 41 to 104 Deg.F ( 5 to 40 Deg.C )

Max. Charging power: 100W

GIMBAL

Stabilization: 3-axis ( pitch, roll, yaw )

Controllable range: pitch: -90 to +30 degree

Max. controllable angular speed: pitch: 90 degree/s

Angular control accuracy: + / - 0.02 degree

CAMERA

Sensor: 1 inch CMOS, effective pixels: 20MP

Lens: 84-degree FOV 8.8mm / 24mm ( 35mm format equivalent ) f/2.8 - f1.1 auto focus at 1m to infinity

ISO range: video: 100 - 3200 ( auto ), 100 - 6400 ( manual ); photo: 100 - 3200 ( auto ); 100 - 128000 ( manual )

Mechanical shutter speed: 8 - 1/2000s

Electronic shutter speed: 8 - 1/8000s

Image size: 3:2 aspect ratio: 5472 x 3648; 4:3 aspect ratio: 4864 x 3648; 16:9 aspect ratio: 5472 x 3078

PIV image size: 4096 x 2160; 3840 x 2160; 2720 x 1530; 1920 x 1080; 1280 x 720

Still photography modes: Single Shot; Burst Shooting: 3 / 5 / 7 / 10 / 14 frames; Auto Exposure Bracketing ( AEB ): 3 / 5 bracketed frames at 0.7 EV Bias

Interval: 2 / 3 / 5 / 7 / 10 / 15 / 20 / 30 / 60s

Video recording modes: H.265; H.264; C4K: 4094 x 2160; 4K: 3840 x 2160; 2.7K: 2720 x 1530; FHD: 1920 x 1080; HD: 1280 x 720

Max. video bitrate: 100Mbps

Supported file system: FAT32 ( 32GB or less ); exFAT ( more than 32GB )

Photo: JPEG, DNG ( RAW ), JPEG + DNG

Video: MP4 / MOV ( AVC/H.264, HEVC/H.265 )

Supported micro SD card: max. capacity: 128GB; write speed: 15MB/s or more, Class 10 or UHS-1 rating

Operating temperature range: 32 to 104 Deg.F ( 0 to 40 Deg.C )

CHARGER

Voltage: 17.5V

Rated power: 100W

APP / LIVE VIEW

Mobile app: DJI GO 4

Live View working frequency: 2.4GHz ISM

Live View quality: 720P at 30fps

Latency: Phantom 4 Advanced: 220ms ( depending on condition and mobile device )

Required operating system: iOS 9.0 or later, Android 4.4 or later

App download: App Store, Google Play

General

Features: Brushless Version,Camera,Radio Control,WiFi APP Control,WiFi FPV
Functions: Automatic Return,Forward/backward,Hover,Sideward flight,Slow down,Speed up,Tap to Fly,Turn left/right,Up/down,Visual Tracking,Waypoints,WiFi Connection,With light
Size: Large
Satellite System: GLONASS,GPS
Diagonal Length: 350mm ( excluding propellers )
Max Speed: S-mode: 45 mph ( 72 kph ); A-mode: 36 mph ( 58 kph ); P-mode: 31 mph ( 50 kph )
Max Ascent Speed: S-mode: 6m/s; P-mode: 5m/s
Max Descent Speed: S-mode: 4m/s; P-mode: 3m/s
Hover Accuracy: + / - 0.1m ( with Vision Positioning ); + / - 0.5m ( with GPS Positioning ); horizontal: + / - 0.3m ( with Vision Positioning ); + / - 1.5m ( with GPS Positioning )
Built-in Gyro: 6 Axis Gyro
Kit Types: RTF
Level: Advanced Level

Connectivity

Remote Control: 2.4GHz Wireless Remote Control
Channel: Unknown
Radio Mode: Mode 2 (Left-hand Throttle)
Control Distance: 7km
Compatible with Additional Gimbal: Yes
FPV Distance: 7km
Transmitter Power: Built-in rechargeable battery
Model Power: Built-in rechargeable battery

Battery

Battery: 5870mAh 14.8V 4S LiPo
Flying Time: About 30mins
Battery Weight: 468g

Camera

Camera Pixels: 20MP
Video Resolution: C4K: 4094 x 2160; 4K: 3840 x 2160; 2.7K: 2720 x 1530; FHD: 1920 x 1080; HD: 1280 x 720

Package Contents

Package Contents:

1 x Aircraft Body ( Intelligent Flight Battery Included ),

1 x Transmitter, 8 x Propeller,

1 x Battery Charger,

1 x Power Cable,

1 x Set of English Manuals,

1 x Gimbal Clamp,
