MUFFLER OS 46FX ENGINES 873S 25425020

MUFFLER OS 46FX ENGINES 873S 25425020

Ref: 23146

Estoque: Disponível

R$ 416,75

Comprar

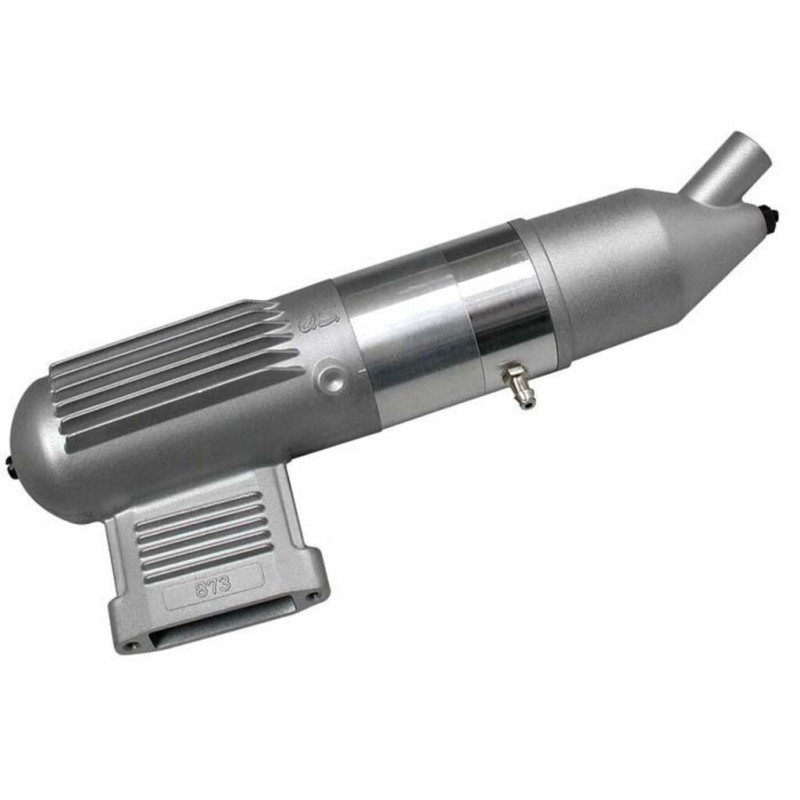

This is the #873S OS Super Silencer Muffler used for the OS Max 40FX and 46FX Engines.

FEATURES:

Direct Fit Optional Part.

Natural Aluminum Construction.

Three Expansion-Chambers Separated by Cone Baffles.

Offers Appreciable Reductions in Noise Emissions.

Exhaust Outlet and/or Pressure-Fitting Can Be Rotated To The Most Convenient Positions.

INCLUDES:

One 873S Muffler w/Pre-installed Pressure Fitting

Two black steel 3x35mm Cap-Head Screws w/.5 pitch threads

One Instruction Sheet

REQUIRES:

A 2.5mm hex wrench to install to engine

SPECS:

Length: 175mm

Diameter: 38mm at largest point including cooling fins

Mounting Hole Centers: 37mm

Mouting Flange:

44mm Wide
10mm Height
27mm Length from end of flange to muffler body
28mm Intake Port Height
6mm Intake Port Width

Exhaust Port Diameter:

6.8mm ID
11mm OD

Pressure Nipple: Length:

14mm
Diameter: 4.5mm line end
Threads Length: 6mm
Diameter: 3.5mm
Pitch: .6
