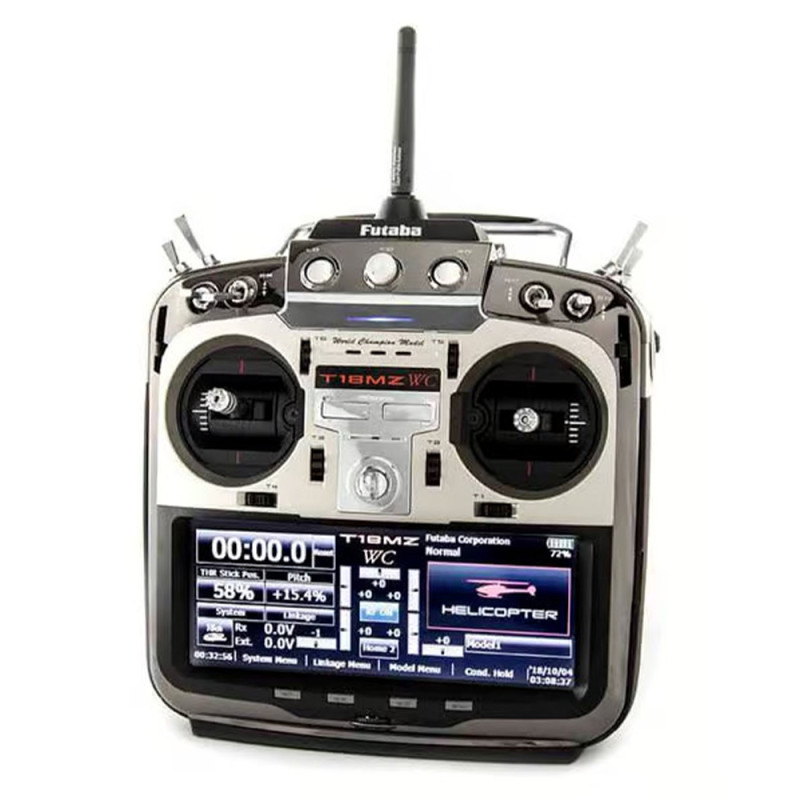

RADIO FUTABA 18CH 18MZH WC HELI MODE2 FASSTEST/FASST/S-FHSS FUTK9541

18MZ-WC World Championship Transmitter – 18-Channel Computer System

Features:

FASSTEST SYSTEM:

• The 18MZ-WC transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.

S.BUS2 SYSTEM:

• By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

WINDOWS CE:

• T18MZ-WC utilizes the world famous Microsoft Windows CE, which offers outstanding dependability and valuable resources

COLOR LCD:

• T18MZ-WC has a HVGA (640 x 240 pixels) full color backlit LCD touch screen. The screen is manufactured of a transflective construction which enables both indoor and outdoor visibility.

MUSIC PLAY:

• T18MZ-WC can playback WMA (Windows Media Audio) files on a SD Card. You can enjoy music by the internal speaker or stereo headphones from the earphone jack. A switch can be assigned to start/stop your music.

VOICE RECORDING:

• You can record your own voice using the internal microphone and then play back commands assigned to certain switches. Recording time is 3 seconds maximum and 24 voice files can be stored.

CAMERA FUNCTION + PICTURE PASTE FUNCTION:

• The transmitter has a 0.03M megapixel digital camera function. Picture files can be inserted as pictures of each model, and shown on the home screen. Identification during model selection is easy and convenient. (File type: bmp, JPEG – Picture size: 158 x 80 pixels.

SECURE DATA (SD CARD):

• Model data, music files, voice files, and picture files can be stored on optional SD card. The SD card is also used when updating the software/features of the T18MZ-WC.

HIGH CAPACITY LITHIUM POLYMER BATTERY (3500 MAH):

• The high capacity Lithium Polymer battery gives you extended flight time.

USB CONNECTION:

• A USB connector is built in. A commercial PC mouse and keyboard can be used. The model data can also be stored in a USB memory flash drive.

EDITING:

• The touch panel and rotary encoder editing system allows you to edit your model in the manner that is easiest for you.

FUNCTIONS:

• The internal dual processors operate the many 18MZ-WC functions and optimize the response time. Most of the mixing functions are operated by curves which give you very precise settings.

STICK:

• Each axis is supported by dual ball bearings. This allows for finer and more precise operation, the potentiometers also offer a very long lifespan.

REPLACEABLE SWITCHES:

• You can replace 8 of the toggle switches on the right and left shoulder, with optional switches (two position, three position, and momentary etc.)

VIBRATION FUNCTION:

• Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

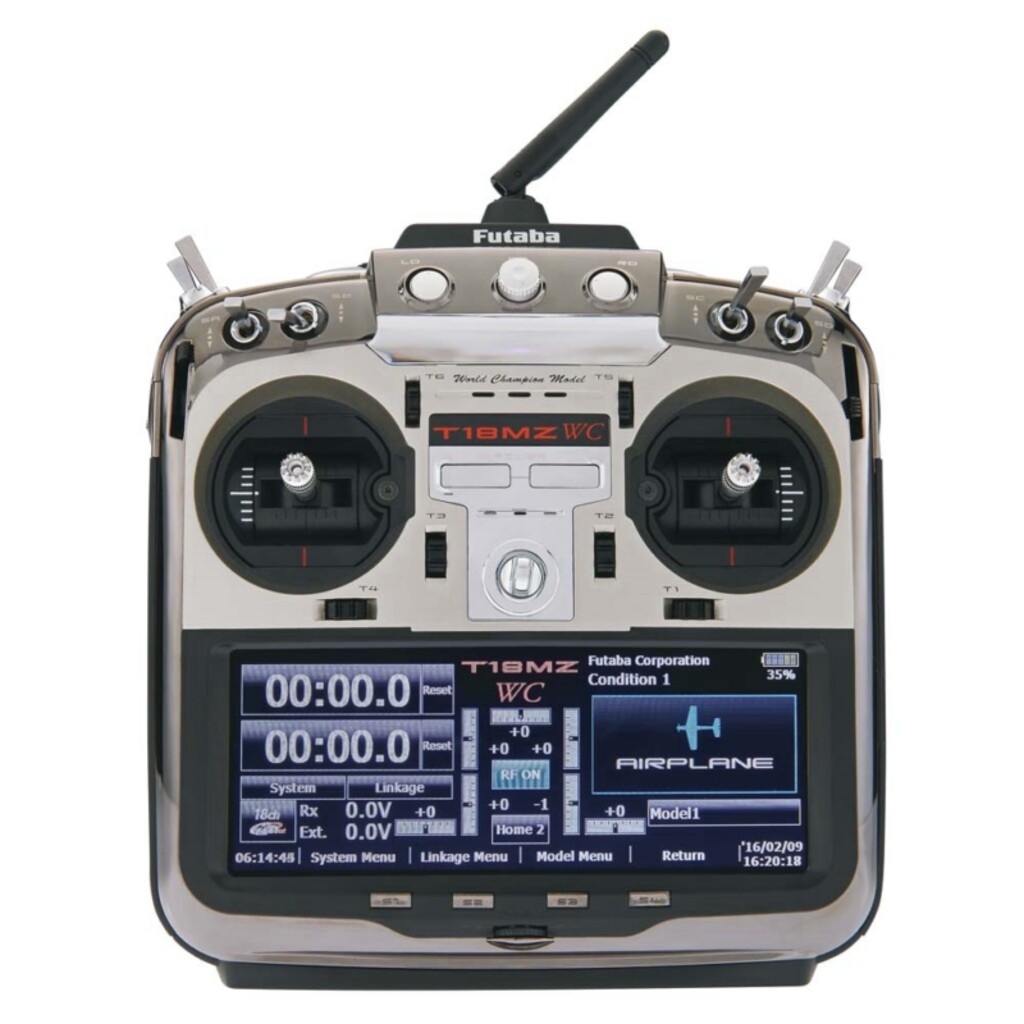

• T18MZ-WC Transmitter
  – Air Version includes ratcheting throttle
  – Helicopter Version includes smooth throttle
• R7008SB OR R7014SB Receiver
• LT2F3500XH Lithium Polymer Battery and AC Adapter
• Switch Harness
• Tool Box (includes special jig for adjustment)
• Neck Strap

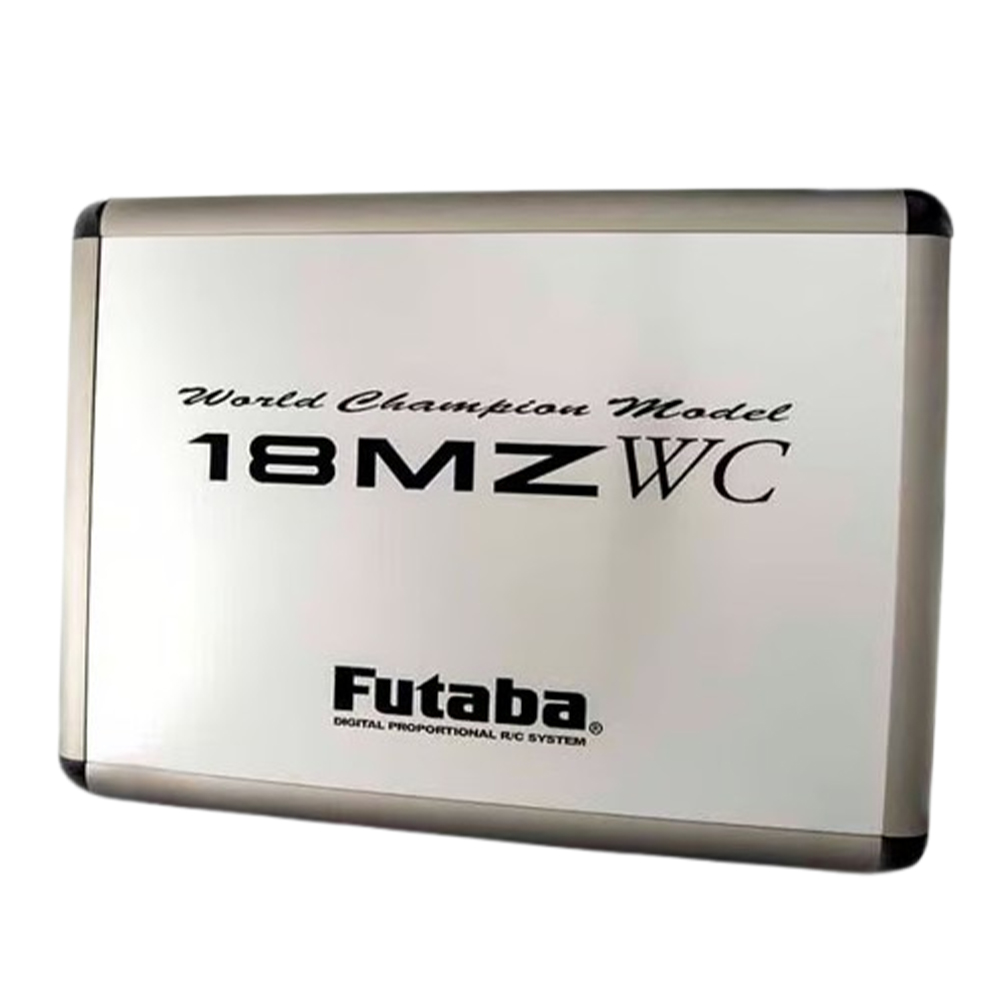

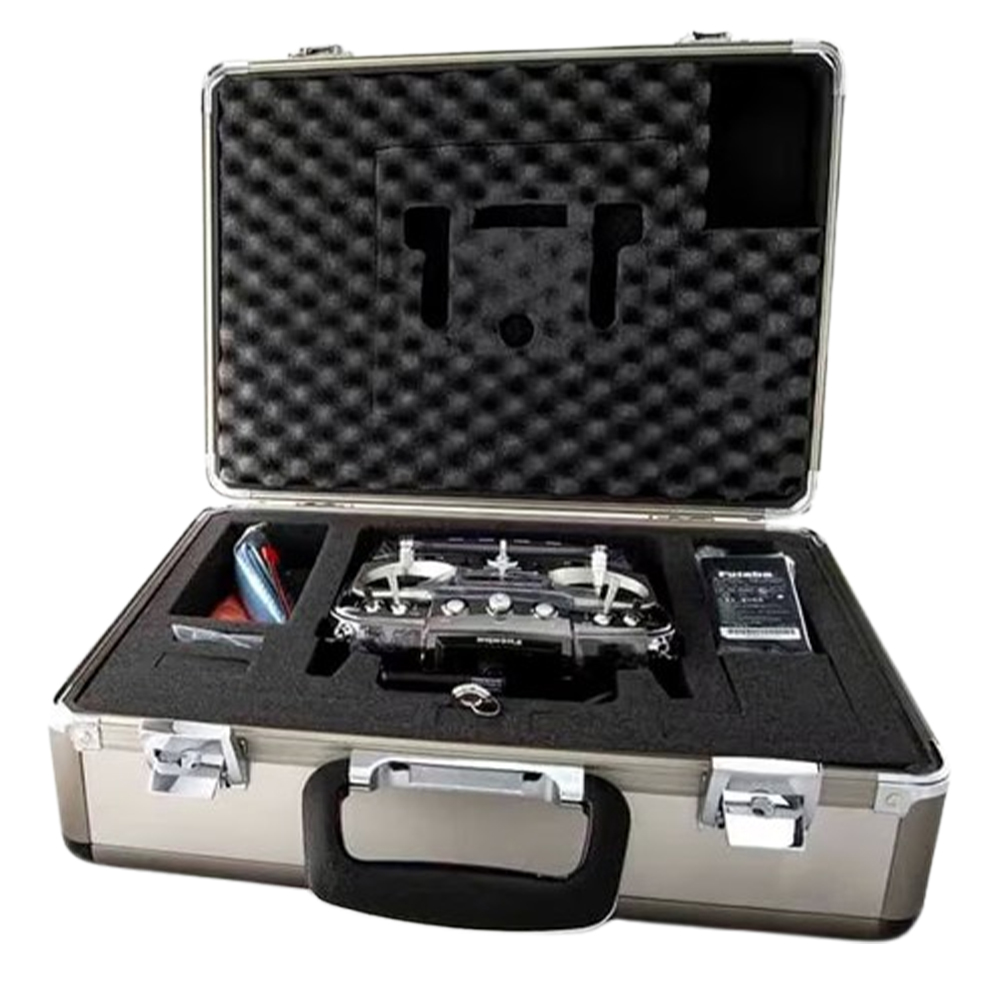

• Transmitter Case

Transmitter Specifications:

• TRANSMITTER FREQUENCY:
  2.4 GHz band
• OPERATING SYSTEM:
  2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System
• POWER SUPPLY:
  7.4 V LT2F3500 Li-Polymer battery
• CURRENT DRAIN:
  1 Ampere maximum (RF power on and back light on) 700 mA average

Receiver Specifications:

R7014SB

SIZE:

• 50.2 x 37.0 x 15.9 mm
• 1.98 x 1.45 x 0.63 in

WEIGHT:

• 20.8 g
• 0.73 oz

POWER REQUIREMENTS:

• DC 3.7~7.4V

VOLTAGE RANGE:

• DC 3.5~8.4V

R7008SB

SIZE:

• 24.9 x 47.3 x 14.3 mm
• 0.98 x 1.86 x 0.56 in

WEIGHT:

• 10.9 g
• 0.38 oz

POWER REQUIREMENTS:

• DC 3.7~7.4V

VOLTAGE RANGE:

• DC 3.5~8.4V
