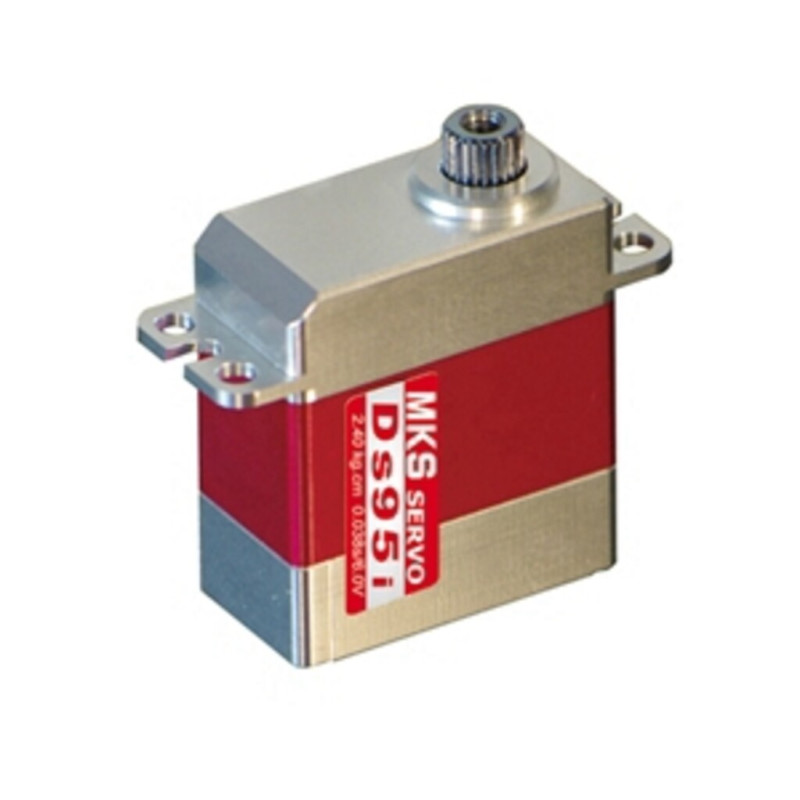

MKS DS95 MICRO 3KG 0.05S

Ref: 219945

Estoque: Indisponível

R$ 560,62

Comprar

Details
SKU	RC-MKS-DS95
Dead Band	0.001ms (Default)
Control System	+Pulse Width Control
Working Frequence	1500μs / 333hz data: 850μs~2150μs
(RX) Required Pulse	3.0~5.0 Volt Peak to Peak Square Wave
Operating Voltage	4.8~6.0 V DC Volts
Operating Temperature Range	-10 to + 60 Degree C
Operating Speed (4.8V)	0.066 sec/60Â° degrees at no load
Operating Speed (6V)	0.053 sec/60Â° dagrees at no load
Stall Torque (4.8V)	2.44 kg-cm (33.88oz/in)
Stall Torque (6V)	3.05 kg-cm (42.36oz/in)
Motor Type	Coreless Motor
Potentiometer Drive	Direct Drive
Driver Type	FET
Bearing Type	Dual Ball Bearings
Gear Type	Chrome-Titanium alloy gear
Programmable	NO
Connector Wire Length	20.0 cm (7.86 in)
Dimensions	23X12X27.25 mm (0.9X0.47X1.07 in)
Weight	21.21 g (0.74 oz)
