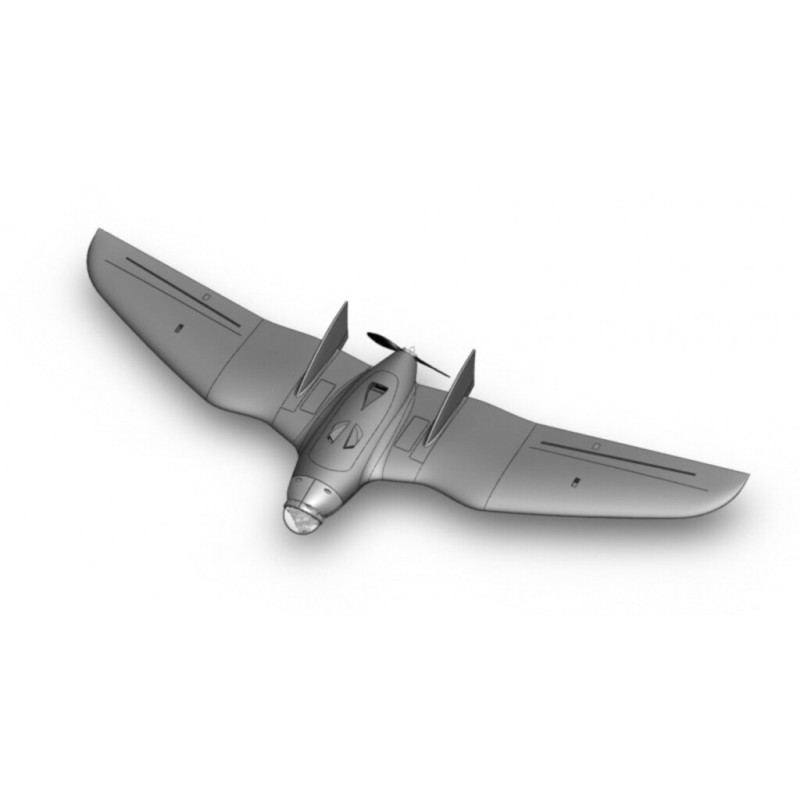

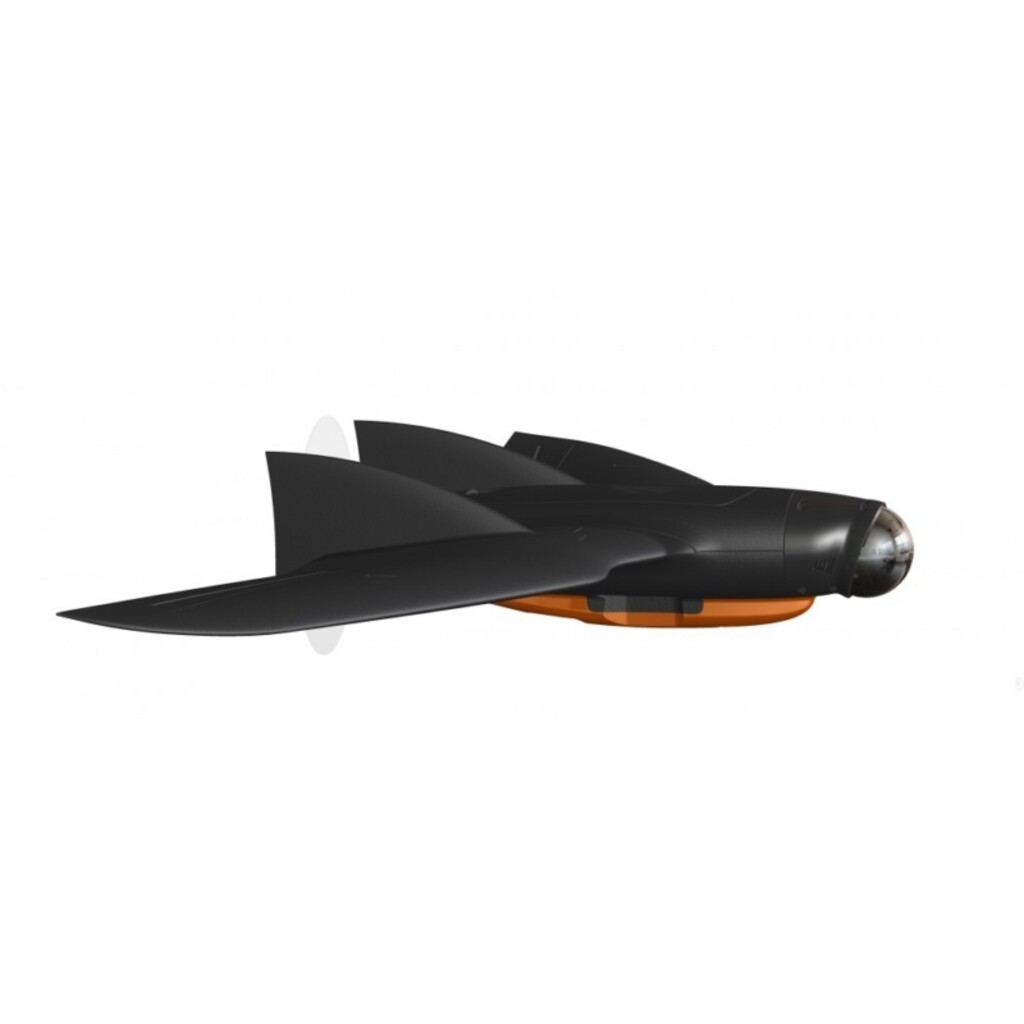

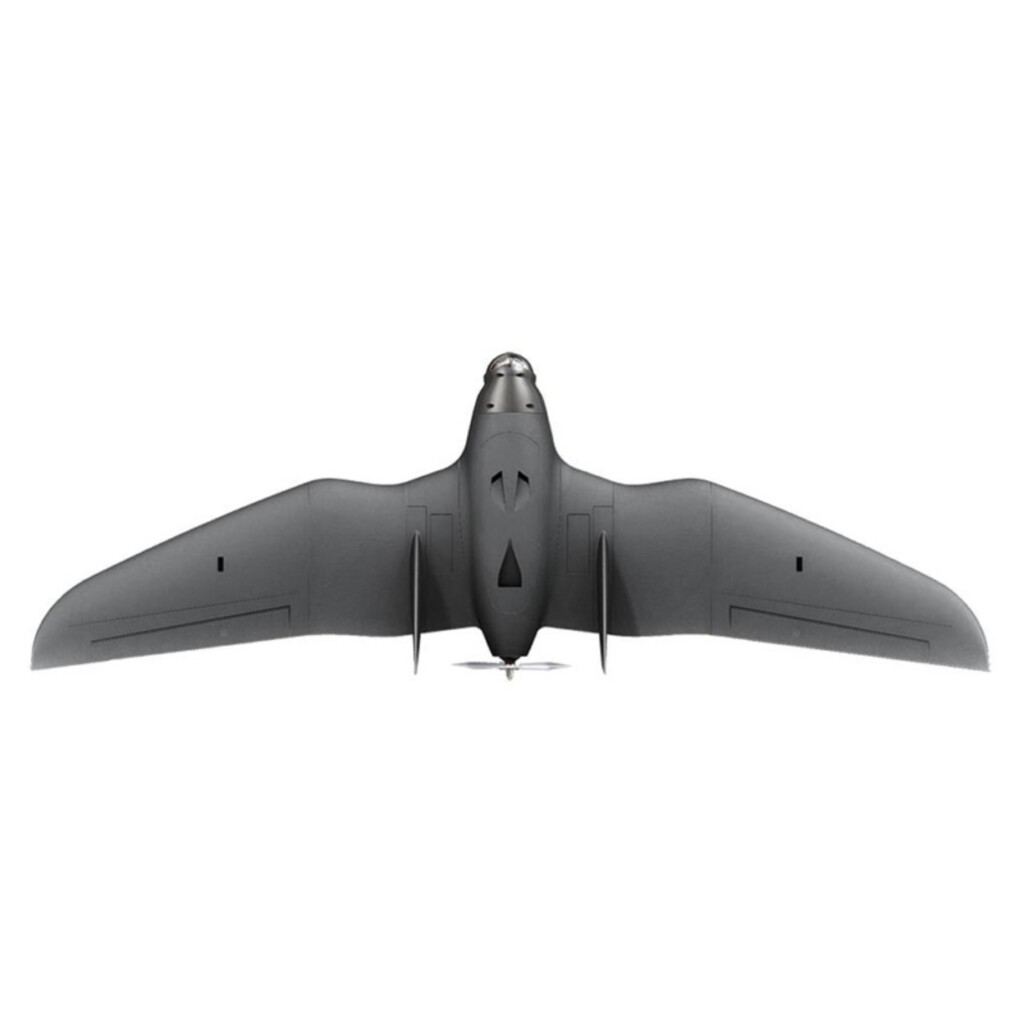

RVJET FPV FLYING WING KIT BLACK

Ref: 218764

Estoque: Indisponível

R$ 2.968,25

Comprar

Este é o Kit Rangevideo RVJET Flying Wing . Eletrônica e do RVPNT pan e tilt são vendidos separadamente.

The RVJET platform features 2 wingspans, a huge 1.95 meter (76.7 inches) wing span for ultra stabile video footage, and a shorter 1.55 meter (61 inches) wing span for a fast and dynamic FPV experience. You get all the parts to build the RVJET in wither long wing, or short wing.

RVJET features a unique and versatile camera gimbal, designed to suit both the popular GoPro Hero series as well as most micro cameras available on the market. The mechanics are designed to be 100% play-free, eliminating shaky video footage. The gimbal allows pan & tilt angles up to 170 degrees. Dome reflections are almost completely eliminated by implementing a smart design. The camera lens is positioned extremely close to the dome, maintains an equal distance form the dome at all angles and is protected by a glare shield . The front dome is easily removed without any tools or parts, simply twist and lock it into place.

The dome protects the camera inside and is of extreme high quality. The material used is optically clear as glass to ensure there is no image distortion and it is hard coated to improve the scratch resistance.
Available in both black and white, the RVJET airframe is made from very durable molded EPO foam. The kit includes high quality injection molded hardware. On the underside of the wing the landing skid protects the airframe and clear dome during rough landings and integrates a rugged hook that enables bungee launches.

The RVJET is shipped inside a custom made foam box that can be used for transporting the finished RVJET to and from the flying field safely for assembly.

What is included in the box:

EPO airframe elements, CF spars

Pushrods, control horns

Glass fiber motor mount.

Landing skid with bungee launch hook integrated (yellow color skid with black EPO kit, red color skid with white EPO kit)

Servo wire extensions for servos and body FPV channel (3 total pcs)

Antivibration mount for autopilot

Printed manual

This is a KIT, it does not include any servos and it does not include the RVPNT - Pan and tilt front nose gimbal.

What you will need:

Motor, ESC, propeller, spinner (RangeVideo RVJET Power Pack)

25g wing servo (2)

3 channel radio control system

5000mah - 8000mAh 11.1V flight battery

Camera, video transmitter, video receiver (FPV equipment)

Requer

1 x RV65A 65 Amp ESC with 5A adjustable SBEC

1 x Carbon Fiber Prop Stopper for Folding Blades

1 x RVJET 900kV 35mm diameter brushless motor

1 x 45mm Aluminum Folding Prop Spinner/Hub (5mm Shaft)

1 x AeroNaut Carbon Fiber Folding Propeller Blades 13x8" (set)

Highlights

Micro Camera Module

Allows mounting of any micro camera with a 12 mm diameter diameter threads (most common).

GoPro Camera Module

Allows mounting of GoPro1, GoPro 2, Hero 3 , Hero3+

Integrated Pan and Tilt

Full 170 degrees of play-free motion with swappable pan/tilt axis allows for precise control and stunning footage

Protective Dome

Distortion-free and scratch-resistant to protect your camera investment from the unexpected without interfering with footage quality.

Easy Assembly

Intuitive design choices complemented by a world-class instruction manual really narrow the margin of error ensuring success for even the most novice of enthusiasts.

Strong Design

Constructed from durable EPO foam which is reinforced by carbon fiber rods and features a replaceable skid for rough landings.

Flexible Design

Removable bottom wing covers, universal motor mount and a generous payload compartment provide the flexibility necessary to create groundbreaking applications.

Adjustable Wingspan

Included wing extensions allow for two wingspan configurations; shorter wingspan(1.55m) increases aerial maneuverability while the longer wingspan(1.95m) supports a greater payload and increases flight stability.

Safer Launches

Large hand grip was designed for safe hand throws but also includes a hook for bungee launching.

High-Performance Servos

Included servos were hand selected with quality in mind. Wing servos are digital, high torque, metal gear, ball bearing type. Pan &tilt servos are also metal gear and offer a wide range of motion.

Storage Container

Shipping container doubles as a protective storage container to keep your RVJET safe during transportation

Multiple Color Options

Choose between a white or black RVJET body and stay tuned post-launch for additional color options
