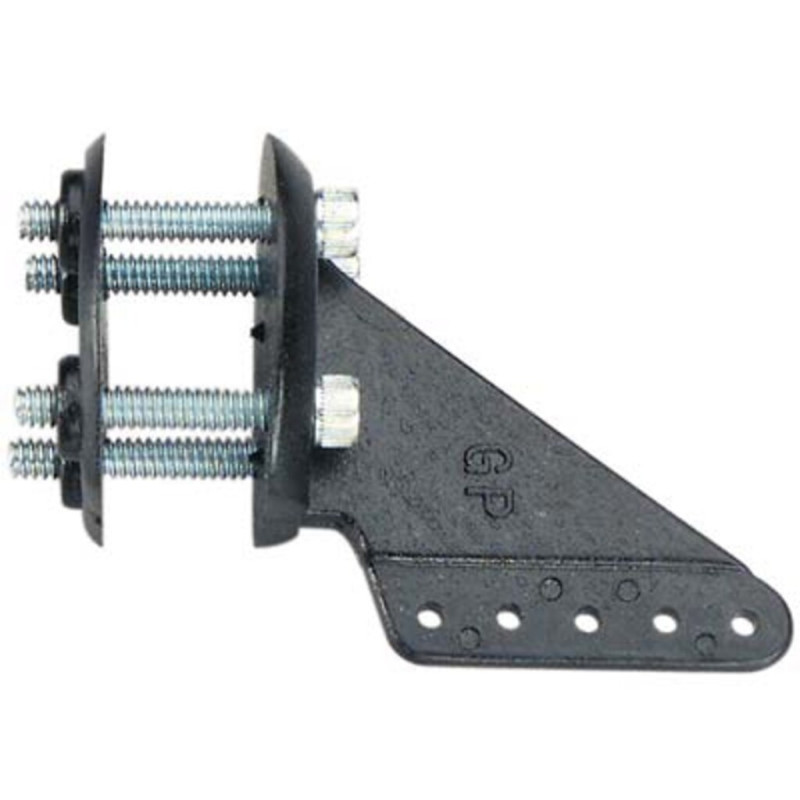

CONTROL HORN LARGE SCALE 2PC GPMQ3902

Ref: 216043
Estoque: Indisponível
R$ 42,53
Comprar

FEATURES

Glass-filled for extra strength in giant scale or large sport-scale applications.

A larger base provides more mounting stability

Mounting hardware is included

Control horn has 5-holes for different control throws



INCLUDES

Two Large Scale Control Horns

Two Control Horn Mounting Bases

Eight 4-40 socket head cap screws



REQUIREMENTS

3/32"-hex head wrench to tighteh 4-40 cap head screws.

1/8"(3mm) Drill bit, to drill holes in mounting plate.



SPECIFICATIONS

4-40-Screw Length: (34.1mm) (1.346")-Thread Only-(23.7mm) (.935")

Base Length: (25.1mm) (.988")

Base width at widest point: (24.2mm) (.954")

Control horn at highest point from bottom of base: (34.1mm) (1.346")
