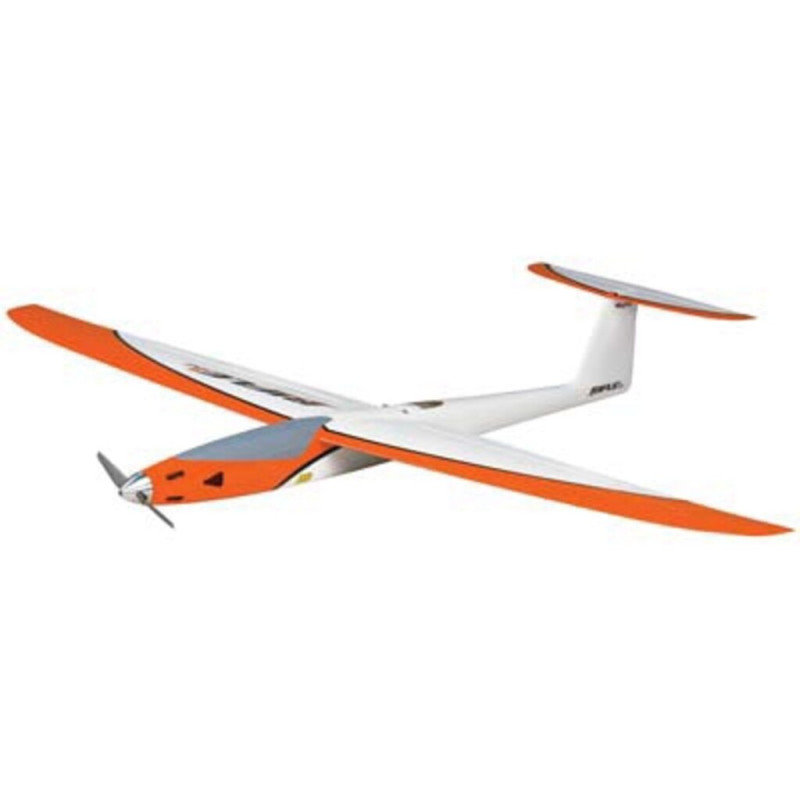

AVIAO GP RIFLE 1M EP SPORT ARF GPMA1806

Ref: 215954

Estoque: Indisponível

R$ 2.136,42

Comprar

FEATURES

Construction: Fiberglass and foam composite
Wings: One-piece with prehinged ailerons, and carbon fiber wing spar
Aileron Control: Dual servo

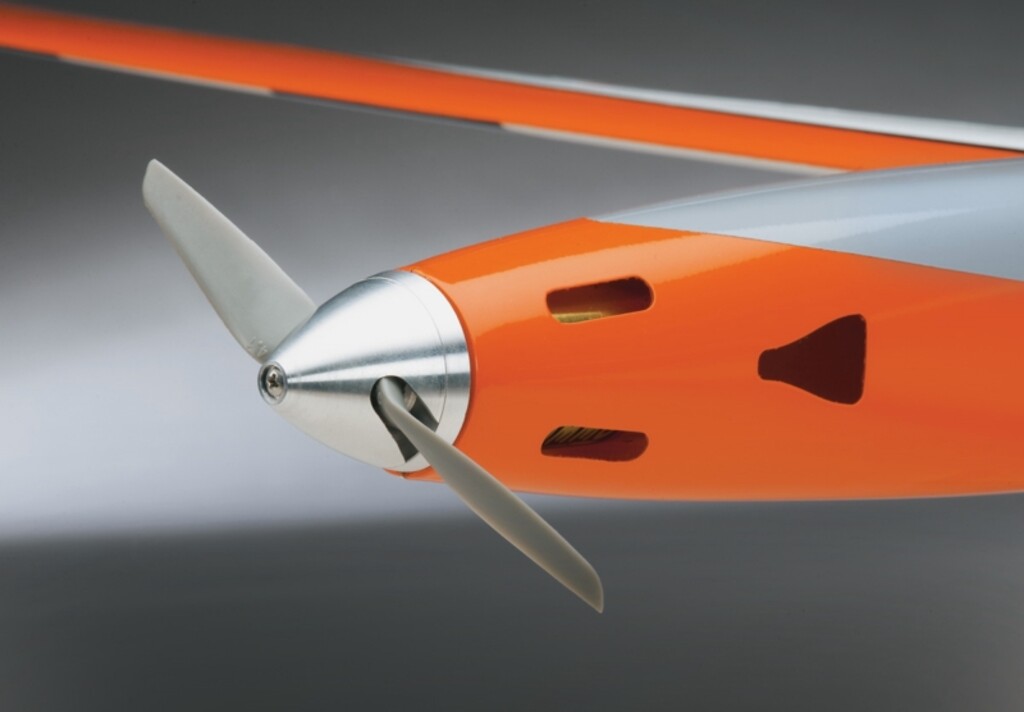

Spinner: Machined aluminum, 1.2" (29.5mm) diameter, silver in color
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover any component
parts damaged by use or modification.

INCLUDES

ARF Rifle 1M Sport Electric Airplane, Spinner, One-Piece Wing
Tail Section, Decals and Instruction Manual

REQUIREMENTS

Radio: 4-5 channel with 3 micro servos, and programmable mixing
Motor: Brushless, Ammo 28-45-3600 recommended
ESC: 50A
LiPo Battery: 2S-3S 2200mAh
Battery Charger: Compatible with selected battery

SPECIFICATIONS

Wingspan: 39.5" (1000mm)
Wing Area: 174 sq in (11.2 sq dm)
Weight Range: 25-28 oz (710-795 g)
Wing Loading: 20.7-23.2 oz sq/ft (63-71 g sq/dm)
Length: 30.5" (775mm)
Center of Gravity (CG): 1-3/16" (30mm) from the leading edge of the
wing at the fuselage
Control Throws: Low Rate High Rate
Elevator: Up & Down 3/16" (5mm) 11° Up 5/16" (8mm) 18°
Down 1/4" (6.5mm) 14°
Ailerons: 3/16" (5mm) 9° 5/16" (8mm) 16°
Spolierons: 5/16" (8mm) 16° Up
(1/16" (1.5mm) 3° Up Elevator Mix)
