MR 433MHZ RMILEC T4047NB20 20CH NB20COMB

Ref: 211345
Estoque: Disponível
R$ 3.431,91
Comprar



Looking for the ultimate LRS radio system offering a massive 5.8w of transmitting power? The RMILEC NB20 system has arrived! The NB20 is essentially a relay system for radio control and a LRS system all in one. How does the system work? Your existing transmitter sends a signal to your receiver which is connected to the NB20 transmitter (on the ground) The NB20 takes that signal and rebroadcasts it at an impressive 2 - 5.8w! (selectable)

When the NB20 system is set up to use all of its 20 available channels your models parameters can be adjusted in flight, meaning a pilot and co-pilot / aerial videographer can work together with a single radio system, In addition to this, the new system offers vast improvements in both range and reliability as any source of interference can be quickly and accurately ruled out.

The NB20 adopts the very latest RF technology, providing very high adjacent channel rejection ratio and anti-blocking performance. The NB20 receiver can detect the frequency and amplitude of EMI interference with unbeatable accuracy and precision.

The RF performance of the latest NB20 system surpasses the older generation 4047 system. The system uses superfast processors for signal transmission and acquisition which delivers extreme accuracy. The NB20's transceiver makes full use of the bandwidth limitation which reduces the time for data exchange and frequency calibration.

In short the NB20 system offers staggering performance and quality for the long range flying enthusiast and all at an affordable price.

Features:
• 2 ~ 5.8w of transmitting power!
• Incorporates the very latest RF technology
• High adjacent channel rejection and anti-blocking performance
• Superfast processors for signal transmission and signal acquisition
• Ultra efficient transceiver system
• 20 channels of PWM, 18 channel SBUS or up to 14 PPM inputs

Specs:
RF power: 2 ~ 5.8w (peak)
Sensitivity: -115dBm
Adjacent Channel Rejection: High
Anti Signal-blocking: High
Operating Frequencies: 435 +/-2.5,445 +/-2.5, 455 +/-2.5, 433ISM (selectable)
Signal Of Servo For Transmission: 20ch
Signal Of Servo For Output: PWM output 20ch, PPM output 20ch, SBUS output 18ch
Input Mode: PPM, PWM, SBUS
Input Voltage: 12v DC
RF Module Weight: 265g
Signal Acquisition Module Weight: 38g
Receiver Weight: 30g

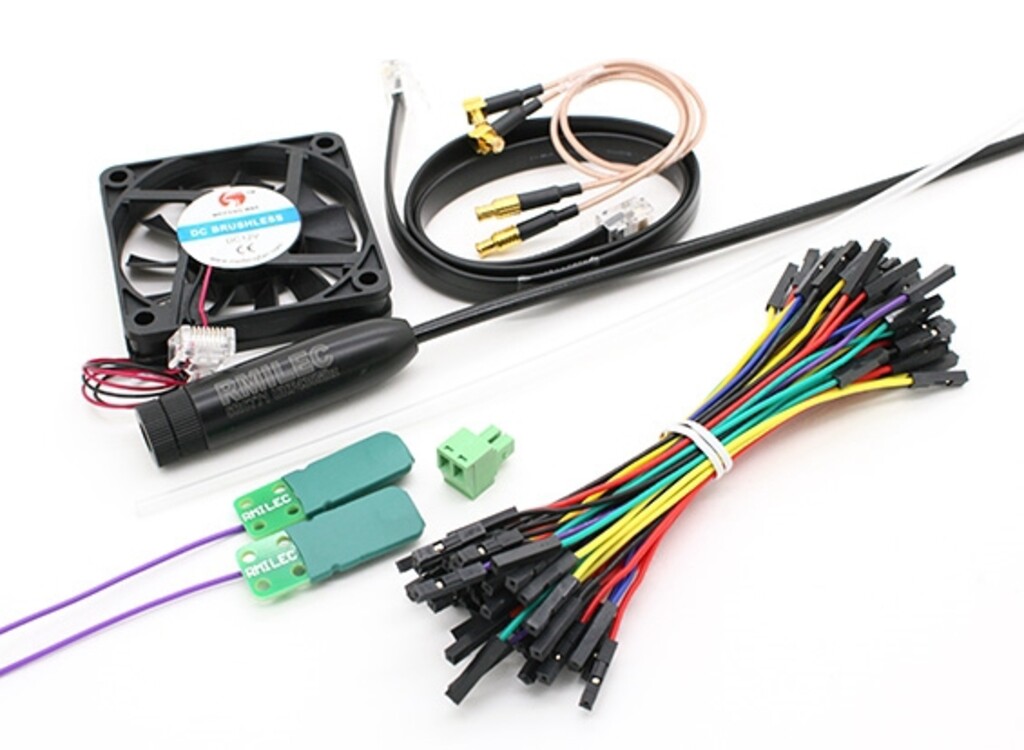

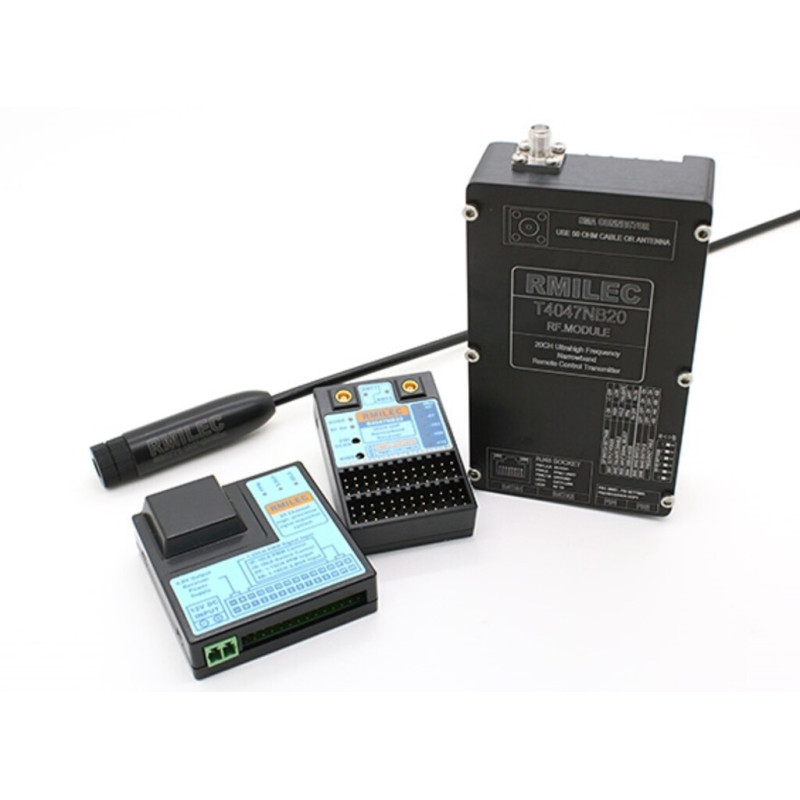

The package includes:
1 x R4047NB20 20ch narrow band receiver with detachable antennas

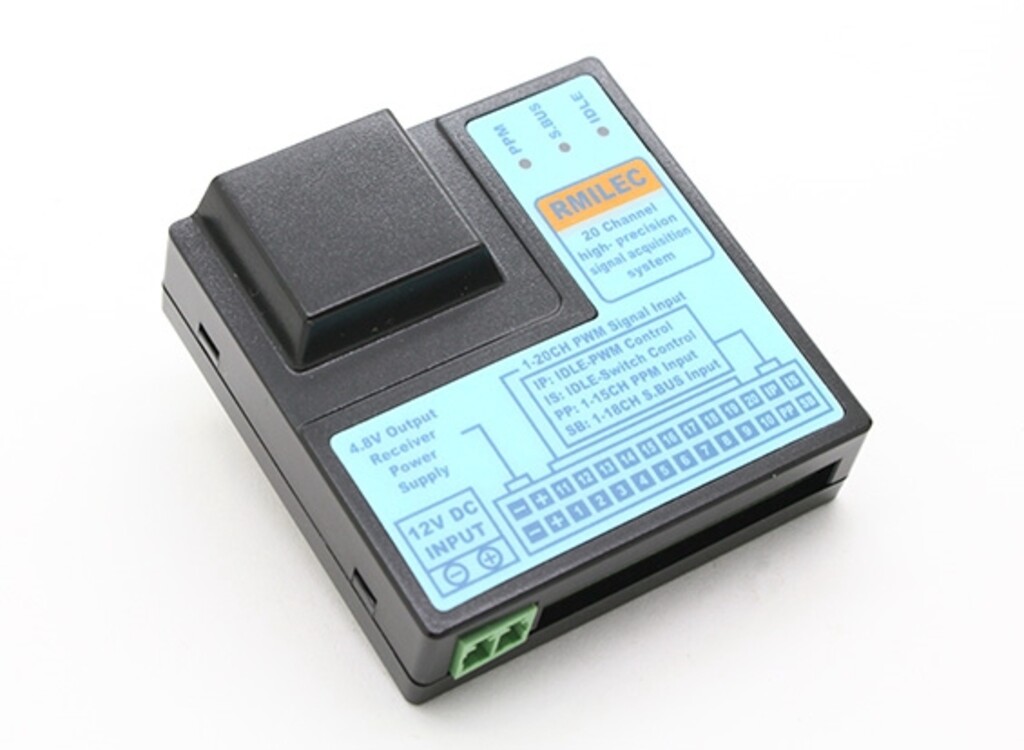

1 X 20ch signal acquisition module
1 x T4047NB20 RF Module with cooling fan
1 x Wiring kit
