MR 433MHZ MODULE & REC 16CH PA04

Ref: 211338
Estoque: Disponível
R$ 849,42
Comprar
Introduction:
The latest edition of the 16 channels support (need two 8 receiver can output 16 channels, which can be either one 1-8 channel receiver is defined as the output signal or output 9-16 channel signals, the tactile two receiver can be set independently Run, and each other). Fixed a version before the receiver is out of control protection failure of bugs occasionally 433 already passed his test and modulus of a N time, already very mature, stability can be guaranteed, for 240-930m full frequency high speed frequency hopping! (can be set, the default 433 band 400-470m frequency hopping, other frequencies need to change into the corresponding frequency band antenna).
Support JR, FUTABA, WFLY, FLYSKY, Walkera, Radio Link and computer simulation and so on all the remote control, as long as you have coach simulation interface of remote control can use PPM input mode, forward PWM mode is more compatible with the earth all the remote control (Forward PWM mode is to your original 2.4 G receiver (2.4 G receiver, not necessarily can also is 72 m, and so on, is your remote control the original receiver) signals converted into 433 and launch out for extreme distance, so you don't have to change anything in the original remote control, also can wander at will with a remote control).
What is PPM and PWM ?
PPM would be to merge all channels on the remote control on a line
PWMsignal is a channel of a signal, such as ordinary remote control receiver is PWM signal output
v.youku.com/v_show/id_XNjE4OTI3MDc2.html  (Compare the video)
tudou.com/programs/view/EmjAEFW2He8/ (8.6 KM away from flying video)
Features:
1. The latest version with the shell function is stronger, more stable performance, shell using aluminum alloy grinding technology, better heat dissipation effect, support 100 mw to level 2 w ten power regulation. Transmitter support 2 s - 6 s (7 v and 24 v) super wide voltage power supply, meet the won't burn.
2. Supports 240 m - 930 - m full frequency fast frequency hopping (no longer is the only support 433 a spectrum frequency hopping).
3. A total of eight frequencies, each spectrum was up to jump can be set up to 24 channels.
4. Support relay control, that is, one can receive and multiple transmitter frequency, (point A remote control to point B, then B point the remote control and control of the plane), and support for multiple receive A launch.
5. Support single bond function set menu button, all functions as long as through a button to set the line, do not need to jump line sub (please see baby function table below)
6. Transmitter and receiver are support online upgrade, as long as you have turn the USB serial port can upgrade the software, in order to obtain more features

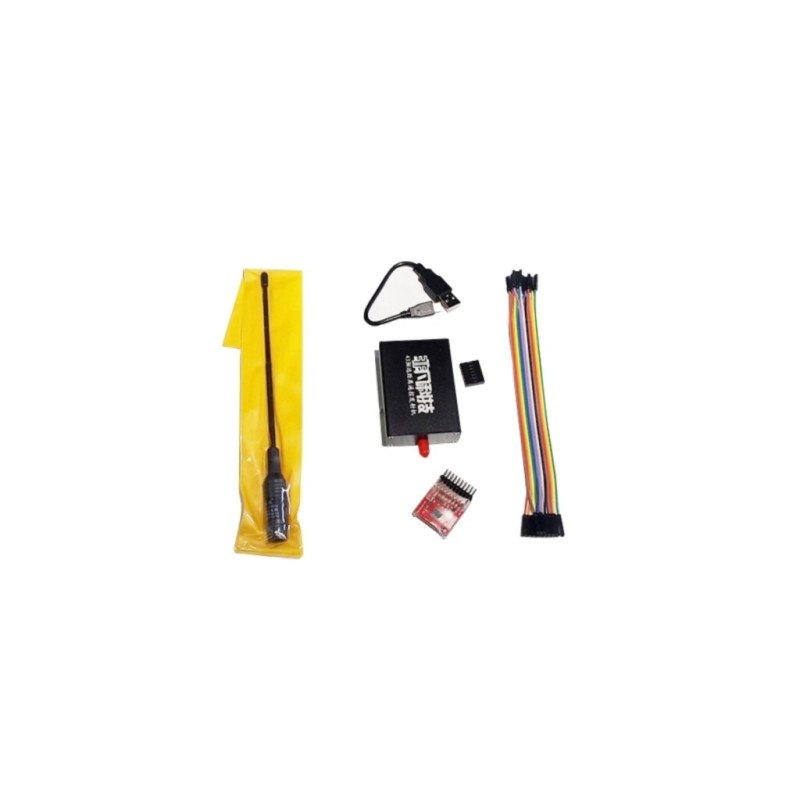

Package Lists:
Receiver*1pc
Transmitter*1pc
Dupon Cable*13pcs
14P Dupon Shell*1pc
771 Antenna*1pc
