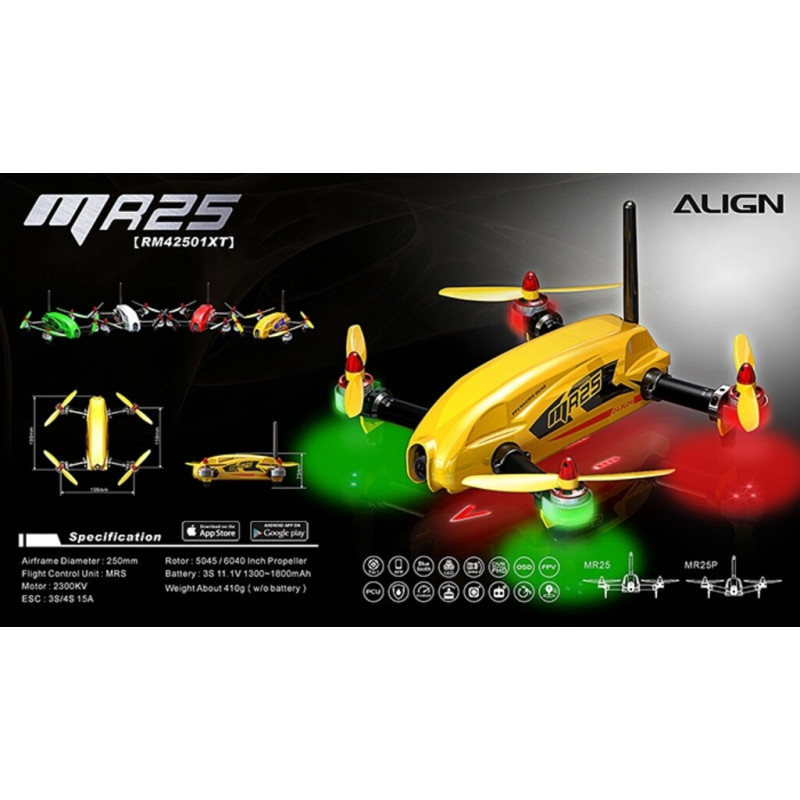

HELICOPTERO ALIGN T-REX MR25 QUADCOPTER RACING RM42501XET

Ref: 210102

Estoque: Disponível

R$ 640,72

Comprar

Não acompanha bateria

MRS Flight Control

Input Voltage: 10V~16.8V

Operating Frequency: 800HZ

Operating Temperature: -20°C~65°C(-4°F~149°F)

Maximum Angular Speed: Aileron/Elevator 400°/sec, Rudder 45°/sec

Maximum Tilting Angle: 80 degrees

Supports Multicopter Configurations: MR25, MR25P

Multicopter Brushless ESC

Input Voltage: 11.1V~14.8V(3S~4S Li-Po)

Max Continuous Current: 15A

Operating Temperature: -5°C~45°C(23°F~113°F)

RCM-BL1806 Brushless Motor 2300KV(RPM/V)

Input Voltage: 11.1V

Max Continuous Current(3 min): 12A

Max Continuous Power(3 min): 135W

Stator Arms: 12

Magnet Poles: 14

Dimesion/Weight: Φ5xΦ23x25.6mm/18.5g

5.8GHz Video Transmitter

Operating Frequency: 5.8GHz

Operating Channels: 32 CH

Input Voltage: 7~19V DC

Operating Current: 300mA 12V

Antenna Interface: RP SMA

Transmitting Power: 350mW

Dimesion: 31x23x11mm

Weight: 14g(Exclude Antenna)/21.48g(Include Antenna)

Video Camera

Recording: 1080P 30FPS/720P 60FPS

Encoding Format: avi

Photo Resolution: 5M/3M pixels

Shutter speed: 2~1/8000sec

Input Voltage: 5V

Perspective: 90°

Memory Cards: Micro SD(Maximum Supported 32GB)

Standard Equipment

MRS Flight Control System x 1

Brushless Motor BL1806(2300KV) x 4

5.8GHz Video Transmitter x 1

MR25 DV Video Recorder x 1

DV Camera Gimbal x 1

Specification

AirFrame Diameter: 250mm

AirFrame Height(Excluding Antenna): 78mm

Propeller Diameter: 5 inches(127mm) / 6 inches(152mm)

AUW(Excludes Battery): Approx.410g

Radio Transmitter and Electronic Equipment Required

R/C Transmitter(6-channel or more,aircraft / multicopter system)

Receiver(6 channel or more)

Satellites Receiver

Balance Charger RCC-3SX

5.8G to 2.4G Converter

Smartphone

FPV Goggle

FPV Monitor

Optional Equipment

MR25 Racing Quad x 1

5045 Propeller x 4

6040 Propeller x 4

Circular Ploarized Antenna TX x 1

MR25 Sticker x 1

S.BUS Connector x 1

Receiver Signal Wire x 2

Satellite Adapter x 1

Hook and Loop Tape x 3

Double Sided Tape x 1

Hook and Loop Tape x 1

Dual Lock Fastener x 2

Hex Head Wrench x 2

With all the top and modern Elec technology, the MR25 is equipped with 7 in one: Flight Controller system, utilizes a 32 bits high speed processor that results in a highly stable and reliable performance. Providing the most effective way of system and camera setting adjustment via APP iOS & Android system, as well as with Bluetooth 4.0 compatibility featuring low power long distance high speed transmission. The ideal Tilt angle camera provide instant tilting compensation in high speed flight.

The mainly structure is uniquely designed with adjustable motor tilt angle offering flexible compensation, and customizable 256 LED colors through APP. Superb lightweight and anti-collision frame design is also capable of 3D flips by moving aileron/elevator stick to the end. This is the one you definitely need, come and take a look!

A flight controller born from the intrgration of cutting edge electronics and innovative information technology. Utilizes a 32 bits high speed processor, combining ESC, power distribution systen, OSD, Bluetooth connectivity, and gimbal control function. Featuring high precision 6-axis gyroscopic sensor and barometric sensor. Drived from Align's core technology, the highly intelligent attitude calculation subroutine results in a highly stable and reliable performance.

Setup and flight parameter tuning can be done through apps running on iOS/Android smart phone or tablets. In addition, the app can be used to control DV camera and video recordings. Bluetooth 4.0 compatibility featuring low power long distance high speed transmission.

High intensity LEDs at bottom, motor mounts, and back plate. With RGB colors customizable through smartphone app.

Single axis camera gimbal to provide camera tilting angle compensation during high speed flights, keeping camera image level with horizon. Tilting angle is also manually adjustable.

High Definition DV Video Recorder(1080P 30fps).

Supports 32G SD card.

Live Flight data display including flight time, mode, attitude, voltage, capacity, current, camera mode, recording mode, and low voltage warning.

FPV through MR25 onboard DVR camera and 5.8GHz Video Transmitter, broadcast live with zero latency to LCD screen or FPV goggles.

Aerodynamically efficient outer shell made with light weight impact resistant ABS plastic alloy material. Provides extra protection while increasing flight visibility. Multiple color scheme available for customization.

Brand new Align BL1806-2300kv multirotor race motor, based on Align's legendary motor core technology, featuring high torque, high speed, high efficiency, low power consumption, and low temperature. Normal Flight time approximately 9 minutes with 3s-1300mah battery.

Adjustable Motor Tilting Angle with maximum +/- 30 degrees angle offering flexibility to compensate for camera angle, or improve speed and stability, giving you the optimal edge at starting line.

Manages signal and power distribution. With single battery, power is distributed to flight control, motors, DVR, 5.8Ghz video downlink, gimbal, multifunction panel. Has a master power switch to make powering up simple, and a battery meter to display current battery capacity. The multifunction panel has unique brake and turn signals for the added realism during FPV racing.
