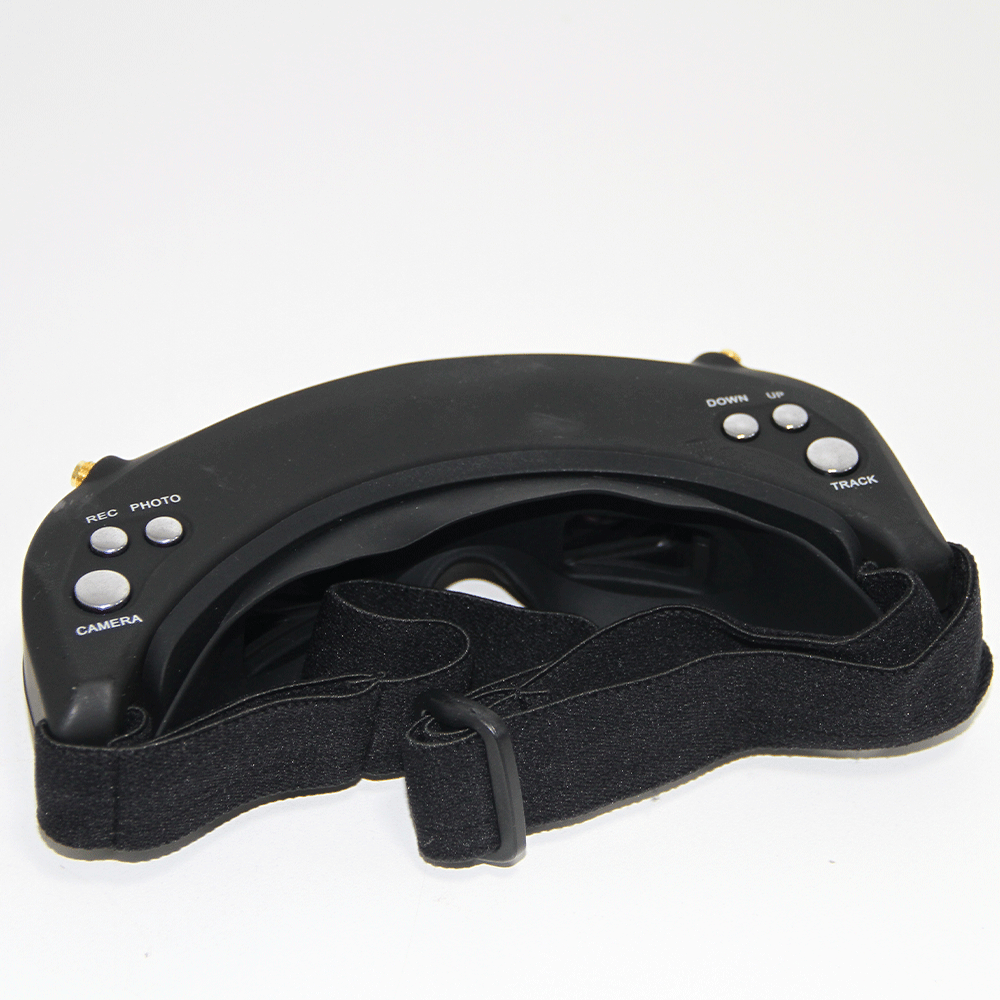

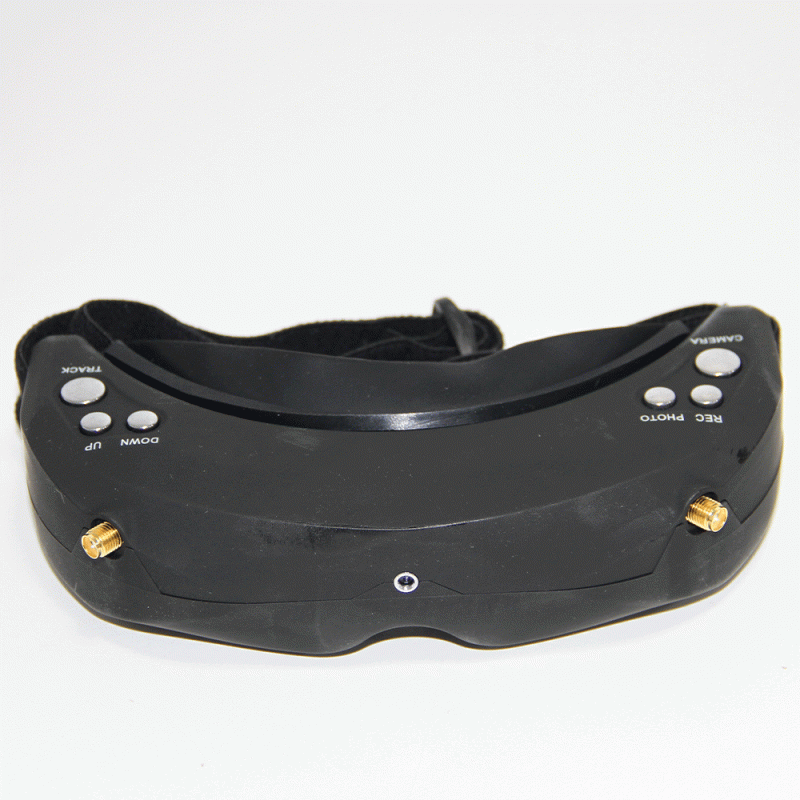

SKYZONE OCULOS 3D GOGGLES SKY-02 (OUTLET)

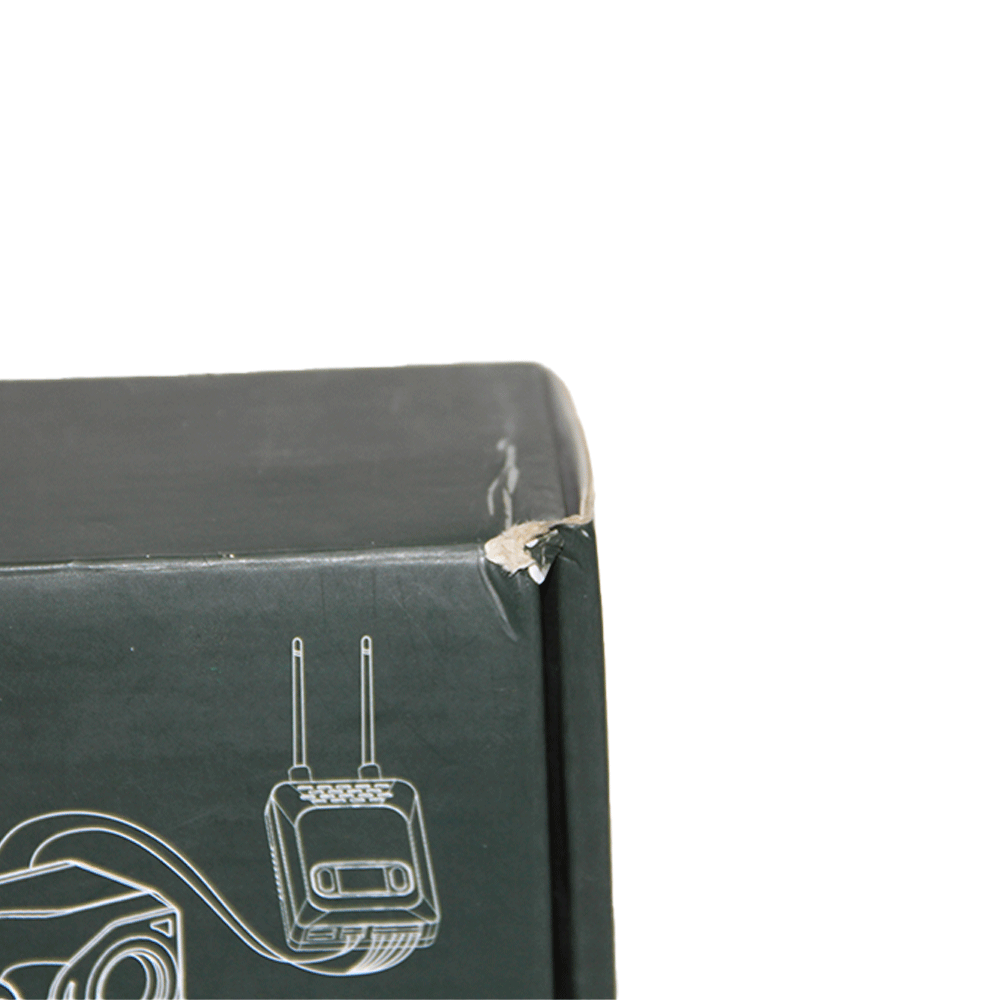

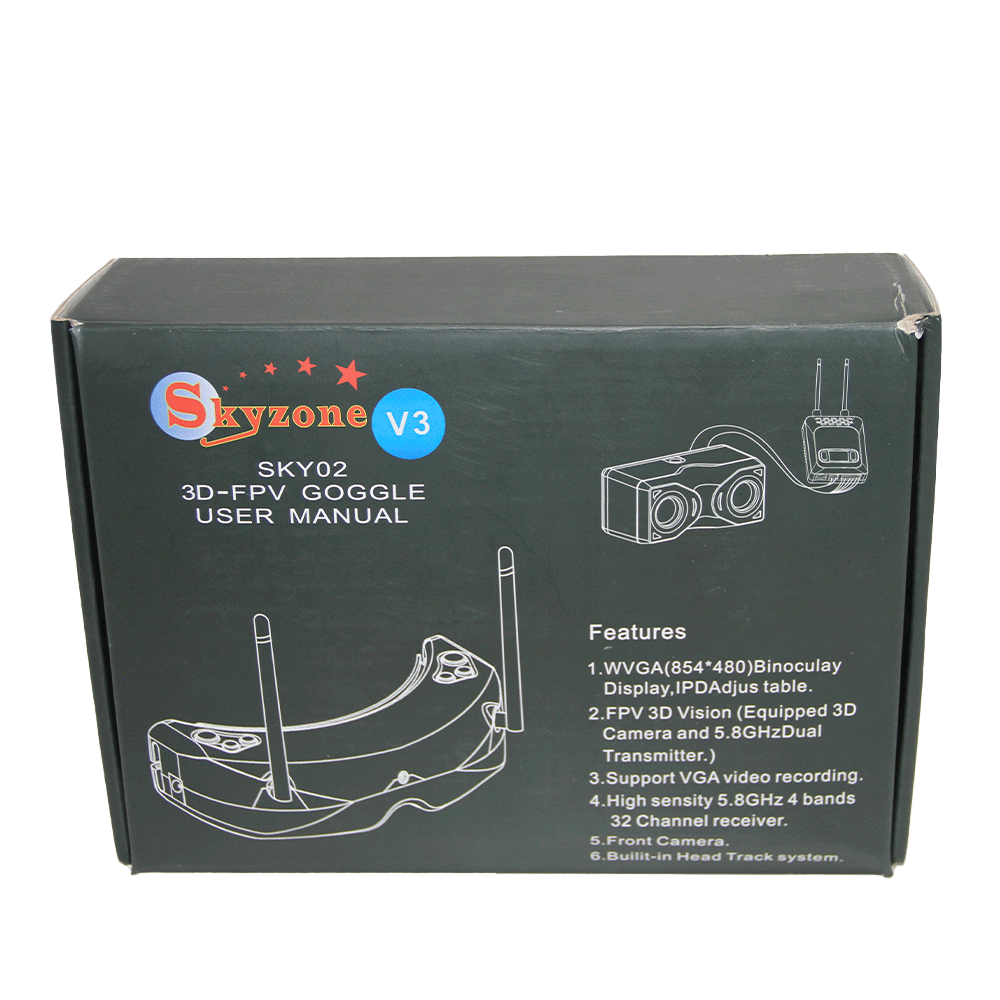

PRODUTO ANTIGO; CAIXA AMASSADA;

Skyzone 3D Goggles SKY02 Specifications:

• 3D Camera SKY301 Specifications:
• FOV: 85 Degrees (Diagonal)

• F/NO: 3.0

• Resolution: 720X576

• Video Standard: PAL / NTSC

• Video output level: 1.0Vp-p Typ. / 75ohm

• Audio output level: 2.0Vp-p Typ. / 10Kohm

• Power supply: DC 5.0V/ 0.5A

• Power Consumption: 1.6W

• Dimensions:  65mm (L) X 30mm (W) X 28mm (H)

• Operating Temperature: 0℃～+60℃

Dual Transmitter SKY201 Specifications: This is the latest V3 Version of Skyzone 3D FPV goggles.

• Skyzone 3D Goggles have a front mounted camera, with a quick push of a button your view switches allowing you to perform all kinds of tasks without the need to lift the goggles. The High resolution widescreen matched with a 30 degree field of view puts you in the cockpit, the new included 3D camera and match special 600mW VTX works with the dual receivers built in giving you a true seamless 3D FPV experience.
• Skyzone 3D Goggles require both 3D camera SKY301 and dual transmitter SKY201 to realize the 3D effect. The two lens 3D camera that uses the parallel shooting method will strengthen 3D vision for close-range shooting and weaken long-distance shooting.

• Skyzone 3D Goggles can also work in normal diversity mode which is in 2D vision, and they are well compatible with SKY201 and most of other transmitters in the markets. (Bands Selection and Resulting Frequencies see details in Parameters)

Features:

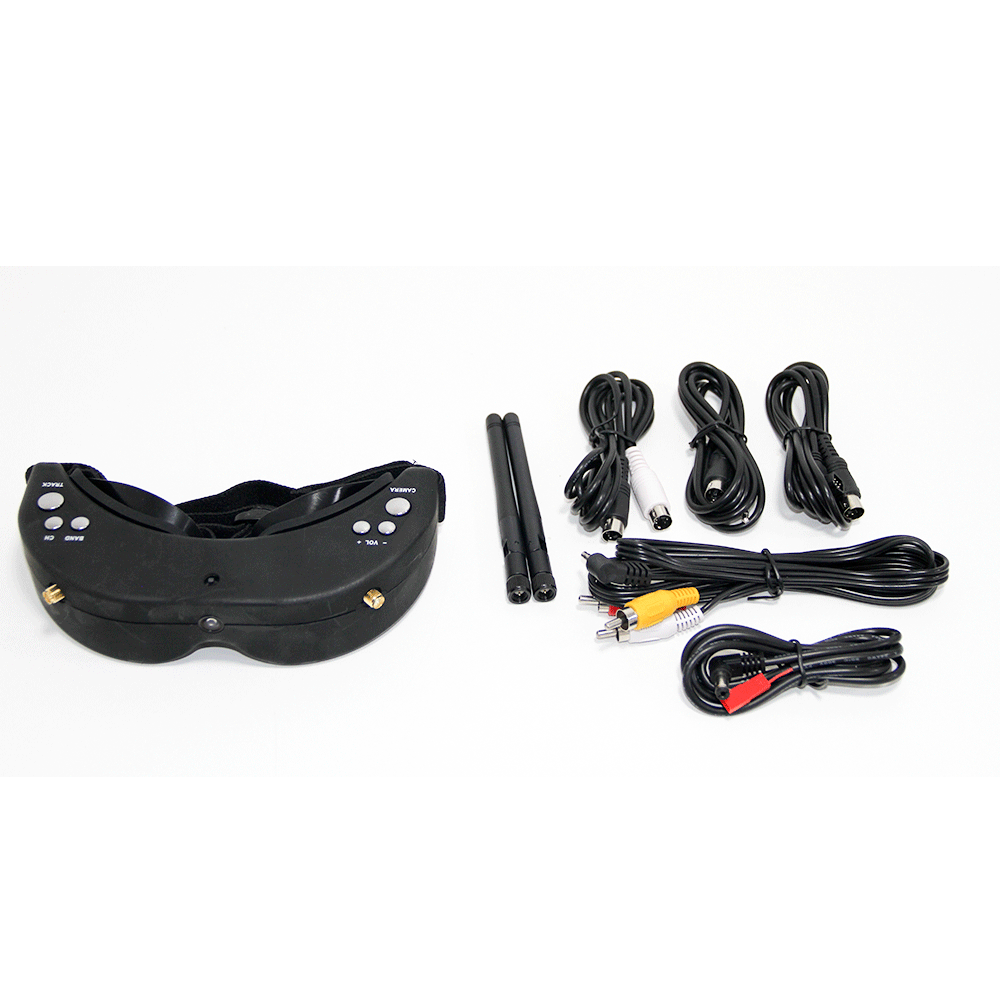

• 3D goggles, all in one kit
• 2D diversity mode
• DVR built in with playback
• Built-in 32CH 5.8G Diversity receiver compatible with most FPV 5.8G TX in the market ( Fatshark, DJI, Walkra, Boscam etc)
• Built-in self-calibrating head tracking (gyro, inertial and compass)
• Built in Dual 854X480(WVGA) Monitors
• Built-in external camera for surrounding view (640X480)
• AV in/ AV out/ Earphone socket (with volume control)
• Adjustable Interpupillary and Diopter for your eyes
• Adjustable brightness and contrast
