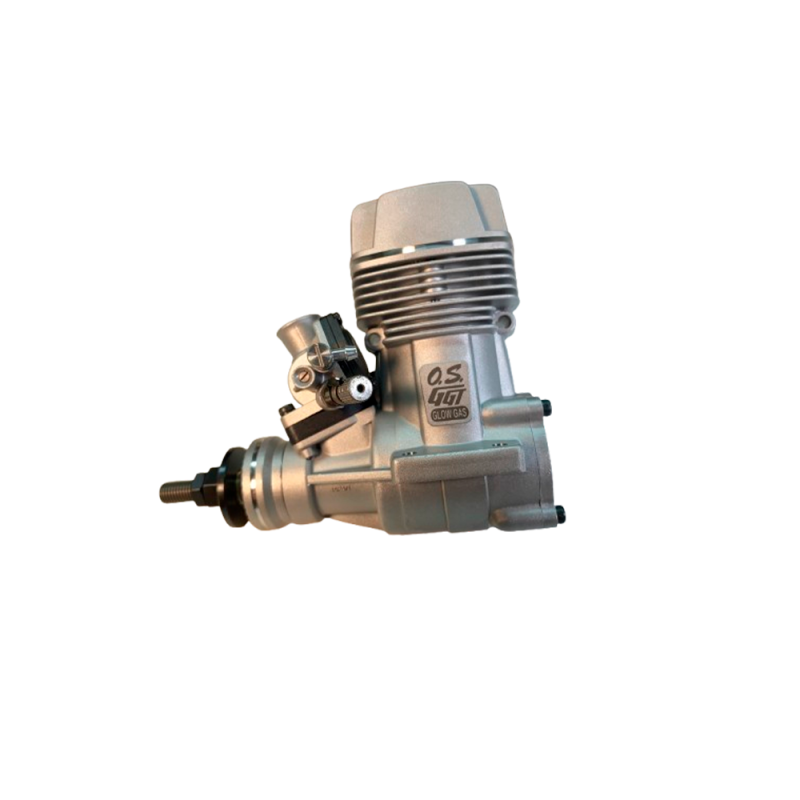

MOTOR OS GGT15 15CC GASOLINE 3A200 1513

Ref: 208956
Estoque: Indisponível
R$ 3.423,42
Comprar

The convenience of glow in a gasoline engine.

  • Glow plug ignition makes the GGT15 a unique 15cc gasoline engine – its performance is the icing on the cake! Glow plug ignition makes it much easier to start up the GGT15, and there's no ignition module required! Additional features you'll find on this exceptional engine include specialized shell-type roller bearings and a 61H carburetor with PD-8 pump system. It's the perfect power plant for larger, .60-.91 class models.
  • Glow plug ignition
  • Simple glow driver starts
  • Simple 50:1 fuel oil mix ratio
  • 61H carb with PD-8 pump
  • Shell-type roller bearings
  • Ideal for 2-stroke .60 class and 4-stroke .91 class models

Notes from our tech department:

  • This is the Gasoline Powered GGT15 Engine w/E4040 Muffler from O.S. Engines.

FEATURES:

  • Ideal for larger 2-stroke .61-.91 class models, and 4-stroke .91 class models
  • Starts easily using a glow driver and glow plug-eliminates ignition module and reduces weight
  • 61H carburetor with PD-08 pump system
  • Shell type roller bearings
  • Two year limited warranty through Hobby Services beginning at date of purchase

INCLUDES:

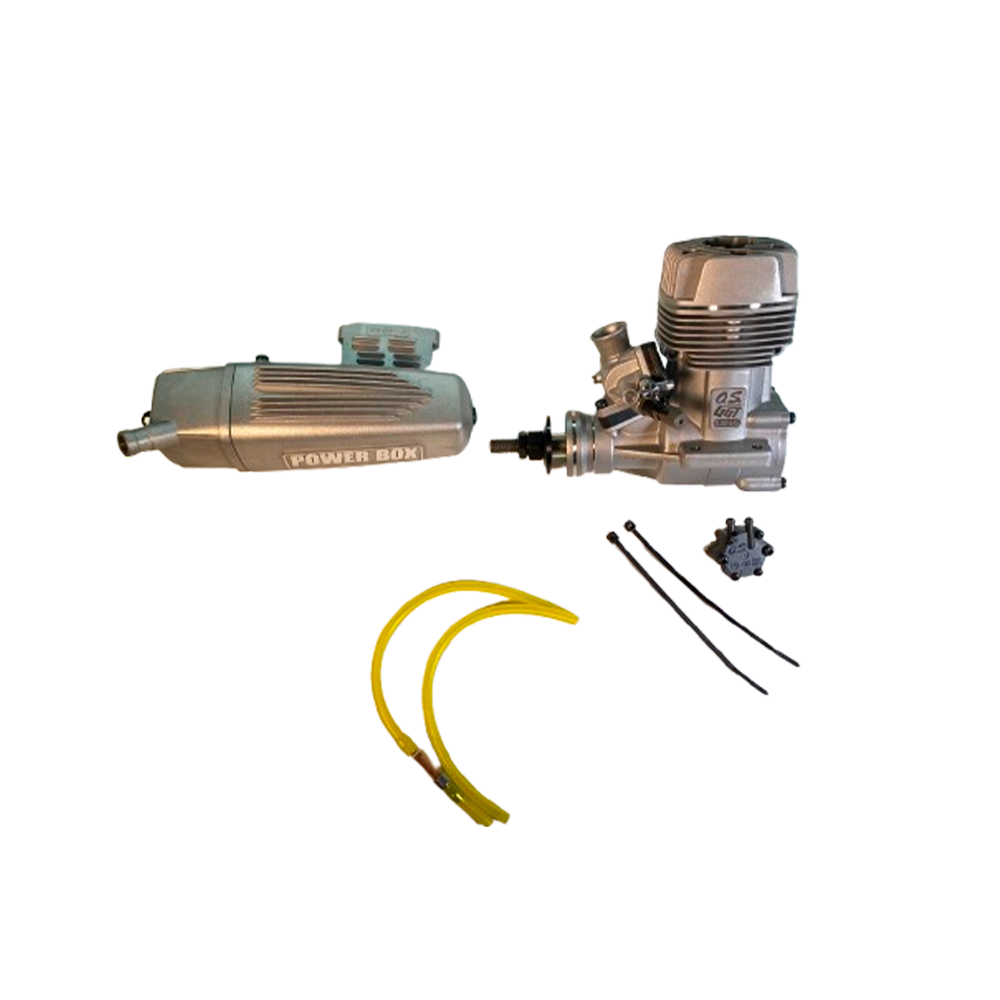

  • GGT15 Engine w/E4040 Muffler, #G5 Glow Plug and Instructions

REQUIREMENTS:

  • Fuel: Gasoline and 2-cycle oil in a 50:1 mixture
  • Propeller depending on aircraft: Sport,13x8-11
  • Acro, 14x8-10
  • Scale, 15x6-8
  • Glow starter & field equipment

SPECIFICATIONS:

  • Displacement: 0.912 cu in (14.95cc)
  • Bore: 1.091" (27.7mm)
  • Stroke: 0.976" (24.8mm)
  • Practical RPM Range: 2,000-11,000
  • Output: 2.35 ps/2.32 hp @ 15,000 RPM
  • Weight: Engine, 21.5oz (610g) Muffler, 6.28oz (178g)
  • Distance between Mounting Hole Centers Same Side: 0.98" (25mm)
  • Distance between Mounting Hole Centers Opposite Side: 2.04" (52mm)
  • Width at Mounting Tabs: (61mm)
  • Width of Crankcase below Mounting Tabs: 1.7" (44mm)
  • Width from Crankcase Center to Exhaust Outlet: 4.4" (112.3mm)
  • Height/bottom of Mounting Tabs to Muffler Bottom: 1.5" (37.6mm)
  • Length/Crankcase Center to Drive Washer: 2.6" (66.8mm)
  • Length/Crankcase Center to end of Crankshaft: 4.03" (102.6mm)
  • Length from Pump to end of Crankshaft: 5.6" (142mm)
  • Crankshaft Size: UNF 5/16-24
  • Rearward Needle Valve Angle Relative to Engine: 30°
  • Needle Valve Adjustment;
  • Gradually open throttle fully when engine is started.
  • Close needle valve 30-45° increasing RPM
  • When RPM starts decreasing, close needle valve 60-90°, then open slowly 15° per second as RPM increases
  • Open needle valve 90° further from point where max RPM is obtained
  • Fly model until running in is completed (10 tanks of fuel)
  • After running in is completed, set idle around 3000RPM
  • Stop engine, close mixture control valve 15°, note idling RPM
  • 90° opened position from where max idling RPM is obtained is optimum mixture control valve position
  • Mixture Control Valve Position;
  • Never try to adjust until needle valve adjustment is performed
  • Open mixture control valve one turn (360°), open & close a few times to be sure there is no resistance during throttle movement
  • Close mixture control valve 30°
  • Rotate throttle until resistance is felt when opening throttle from closed position
  • Open mixture control valve approximately 90° from this point-this is the initial mixture control valve position
