DJI LIGHTBRIDGE <2> HDMI 2.4GHZ

Ref: 206808

Estoque: Indisponível

R$ 11.906,92

Comprar

DJI's Lightbridge 2 is an all-in-one solution that combines video downlink (complete with OSD), aircraft control, gimbal control, and video monitoring in a unified system. It breaks into two key components: the first, an air unit that includes connections for select Zenmuse Z15 gimbals as well as connection for an A2 or a WooKong-M flight controller; the second, a special transmitter (radio controller) that incorporates the Lightbridge ground unit (a separate module on previous systems). The controller features mini-HDMI and 3G-SDI video outputs for connecting an HD display and a USB port for connecting a mobile device such as a smartphone or tablet. The controller provides dedicated camera and gimbal controls for convenient operation, while more advanced features can be accessed via the DJI GO mobile app.

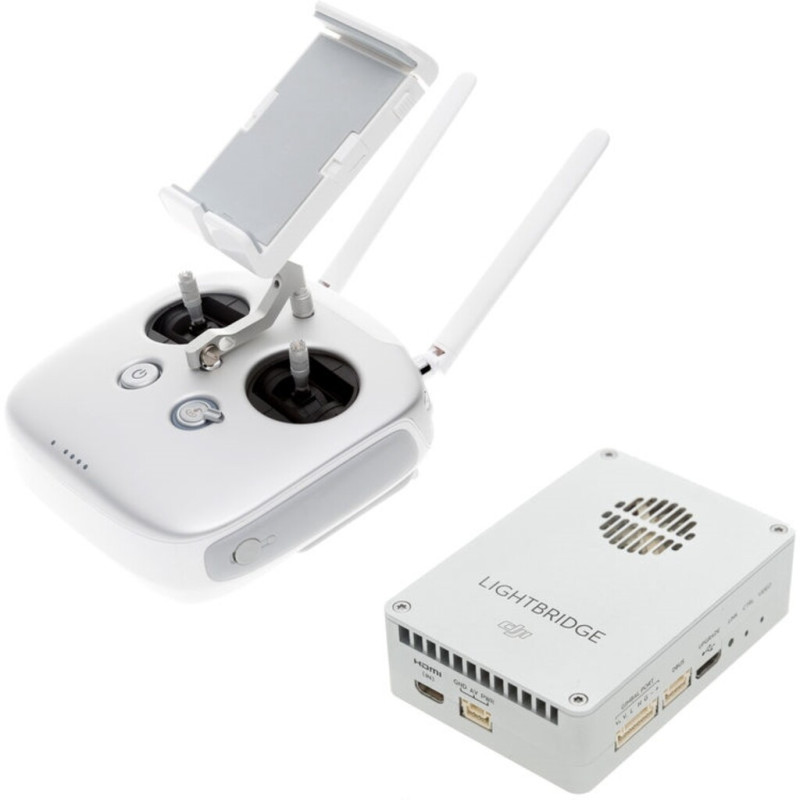

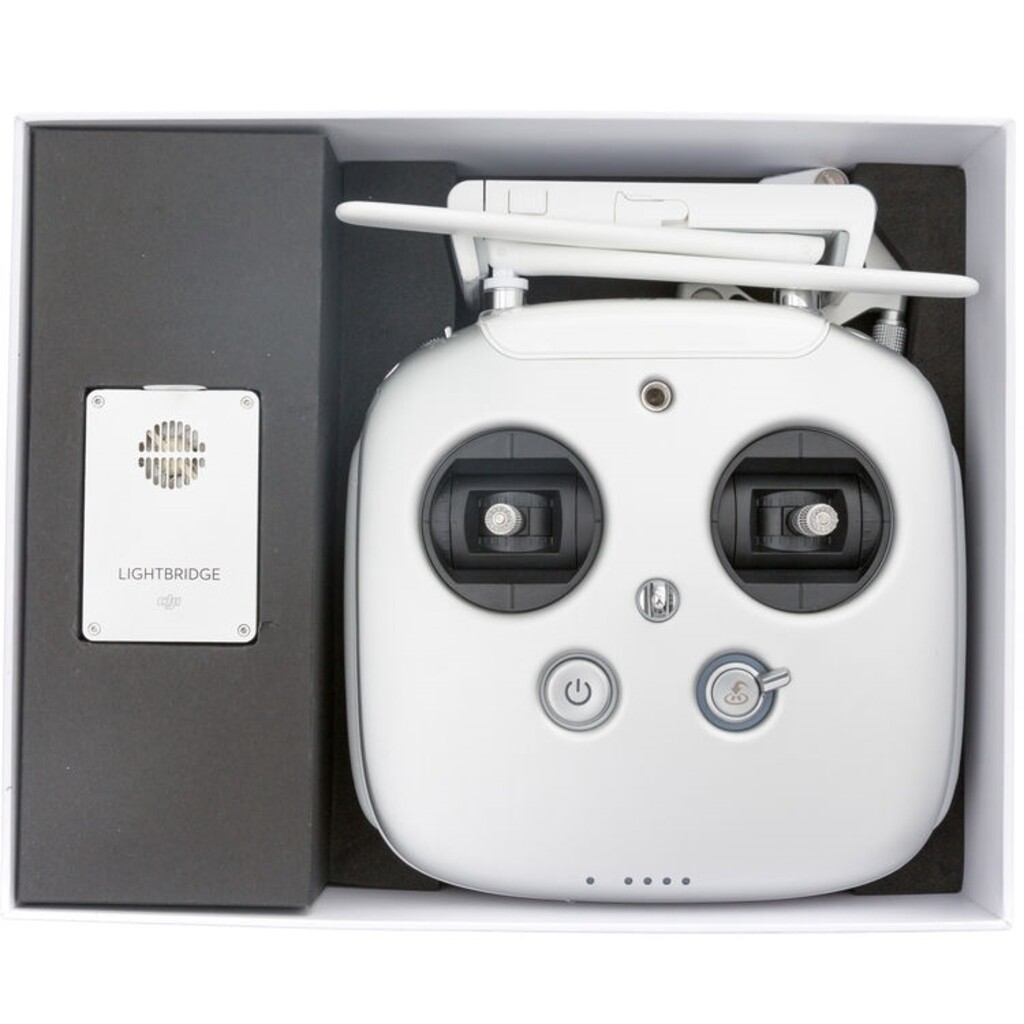

Integrated Design: To simplify both installation and setup, Lightbridge 2 features just two key components: an air unit and a special transmitter (radio controller) that features the ground unit built in

Dedicated Controls: In addition to standard control sticks for piloting, the remote provides direct access to key functions. It has dedicated hardware controls for photo and video capture, gimbal pitch control, Return To Home, as well as customizable buttons

App-Based Control and Monitoring: Use the DJI GO app to control your camera, access intelligent navigation settings, and receive a live HD view of what the camera sees, all on your paired mobile device. Flight information including current status, full telemetry, location, heading, and more is displayed and updated live

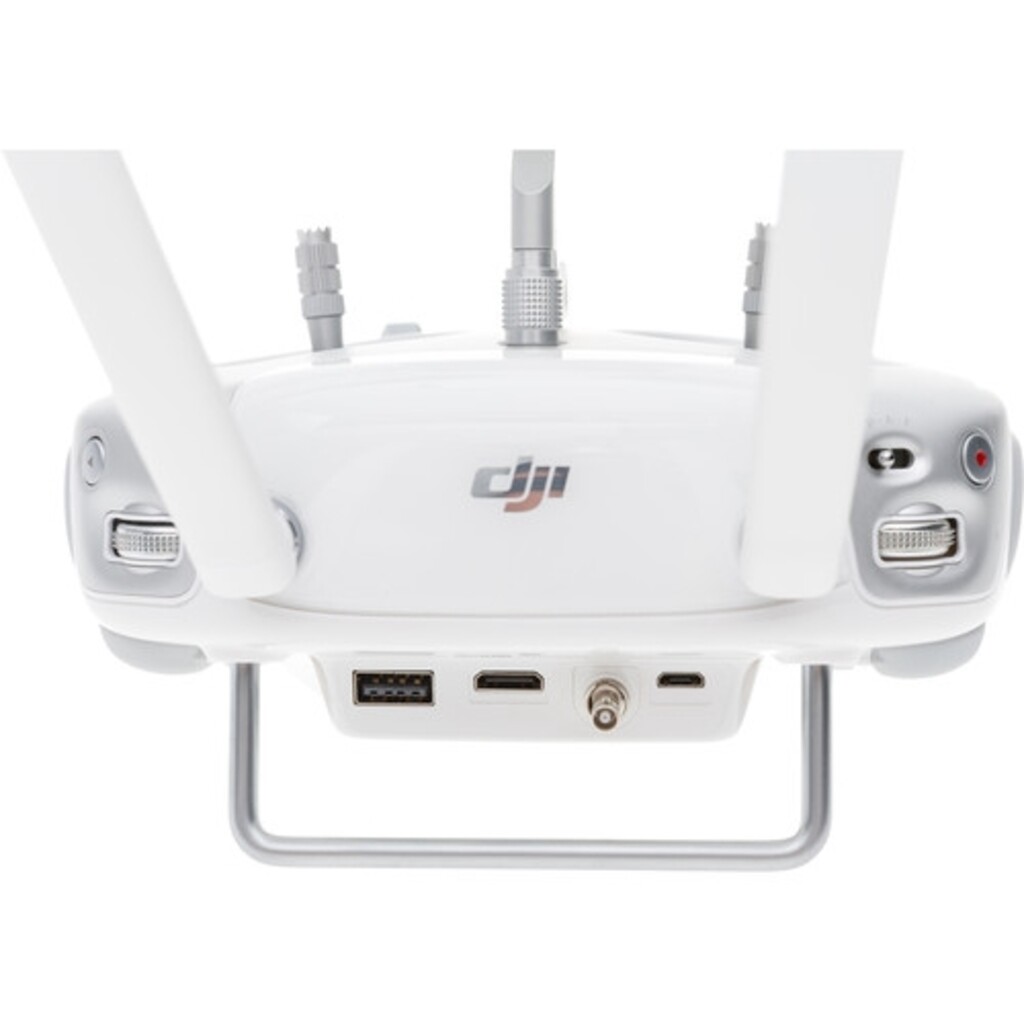

Multiple Output Options: A combination of 3G-SDI, USB, and mini-HDMI ports enables the controller to be connected to a variety of display devices – TVs, field monitors, FPV goggles, mobile devices, and more. You can even output video to several devices simultaneously by using a combination of ports

Dual Video Stream: Lightbridge 2 can transmit video from two cameras simultaneously: the main camera used to capture video and photographs, and a second camera showing the First Person View (FPV). Output a picture-in-picture view via mini-HDMI or 3G-SDI to a TV or other external display, where the FPV is layered with the main camera view. The views and controls are completely independent so that the gimbal control will not affect the pilot view or the aircraft's navigation, and vice versa

Built-In Battery: An internal, rechargeable 6,000 mAh LiPo battery lets you fly longer than AA-powered alternatives and simplifies charging

Dynamic Radio System

To help ensure uninterrupted transmission, a high-speed processor chooses the best channel and bandwidth based on current distance and presence of any sources of potential interference. Additionally, when using the DJI GO app, you can choose to maximize video quality or focus on lower latency as well as manually change to your desired transmission channel

Air End
Antenna Gain	2 dBi at 2450 MHz
Antenna Connector	MMCX male
Supported Input Resolutions	AV: PAL, NTSC HDMI: 720p50, 720p60, 1080i50, 1080i60, 1080p25, 1080p30, 1080p50, 1080p60
Power Consumption	650 mA at 12 VDC
Power Requirements	9 to 12 VDC
Operating Temperature	14 to 104°F / -10 to 40°C
Dimensions (L x W x H)	Without Antenna: 2.7 x 1.9 x 0.8" / 68 x 48 x 21 mm
Weight	2.5 oz / 70 g

Ground End
Antenna Gain	3.5 dBi at 2450 MHz
Connectivity	1 x USB Type-A female (for mobile device connection) 1 x mini-HDMI 1 x 3G-SDI on BNC female 1 x micro-USB (for service)
Supported Output Resolutions	SDI/HDMI: 720p50, 720p60, 1080i50, 1080i60, 1080p24, 1080p30, 1080p50, 1080p60
Power Consumption	900 mA
Built-In Battery	Voltage: 7.4 VDC Capacity: 6000 mAh
Operating Temperature	14 to 104°F / -10 to 40° C
Charging Temperature	32 to 104°F / 0 to 40°C
Dimensions (L x W x H)	7.2 x 6.6 x 4.1" / 182 x 167 x 104 mm
Weight	1.8 lb / 810 g

Battery Charger
Output Voltage	17.4 VDC
Rated Power	57 W

General
Compatibility	Gimbals: Z15-GH4, Z15-5D III, Z15-A7 Flight Controllers: A2, WooKong-M Aerial Systems: S1000+, S1000, S900, S800 EVO, F550, F450
Operating Frequency	5.725 to 5.825 GHz 2.400 to 2.483 GHz
Transmission Distance	1.2 miles / 2 km (line-of-sight)
EIRP	100 mW at 2.4 GHz
