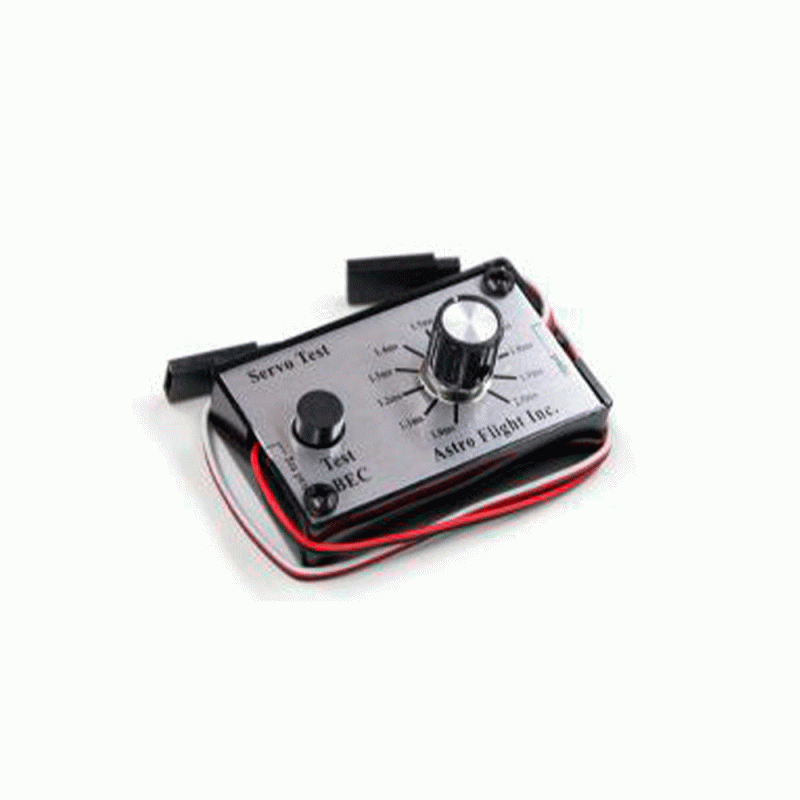

SERVO TESTER ASTRO FLIGHT 105

Ref: 20596

Estoque: Indisponível

R$ 331,70

Comprar

105 Servo Tester Simulates a receiver so you can test your motors and servos without having to use a transmitter and receiver.

It can send RC-PWM signal of 1ms to 2 ms in 20ms period. It connects to an ESC via three wires. The servo tester is powered by the BEC in your speed control or by a std 4 cell 5 volt receiver battery

Minimum Pulse Width: 1 millisecond

Maximum Pulse Width: 2 milliseconds

Pulse Period: 20 milliseconds

Pulse Voltage: 5 volts

BEC Load Test: 500 ma

Length: 2.5 inches

Width: 1.5 inches

Height: 1/2 inch

Weight: 1 ounce

Connector to ESC:
- Futaba Male, 3 pin
- Pin1, GND (Black or Brown)
- Pin2, 5V (Red)
- Pin3, Signal (White)

Connector to Battery
- Futaba Male, 2 Pin
- Pin1, GND (Black or Brown)
- Pin2, 5V (Red)
