CARREGAD.ACCU-CYCLE ELITE HOBBICO 0280

Ref: 19958

Estoque: Indisponível

R$ 671,90

Comprar

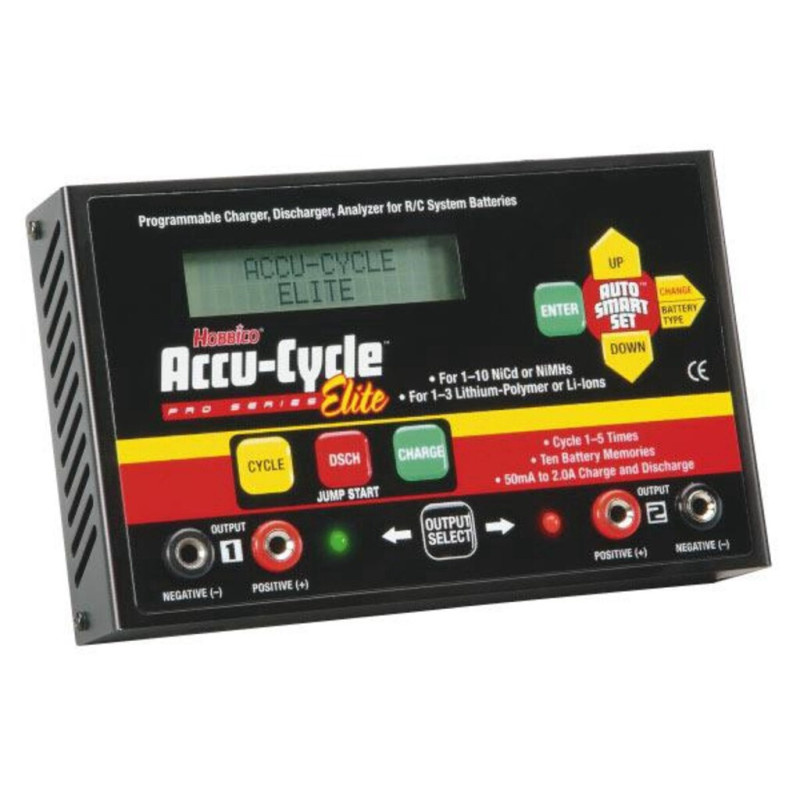

Programmable Charger, Discharger and Analyzer for Radio System Batteries

As easy as you want — as versatile as you need!

It's more than the newest Accu-Cycle: it's the best thing to happen to radio batteries in years. It's so well designed that it practically guarantees that NiCd, NiMH — even Lithium-based packs — will receive a full, deep charge and a safe, accurate discharge. At the same time, the Accu-Cycle Elite offers users unprecedented freedom of choice. Modelers can enjoy perfect charging by letting the Auto Smart Set feature calculate many settings automatically, or by creating custom routines for up to 10 packs and storing them in memory.

Lithium-pack compatible! Capable of charging and discharging 1-3 cell Lithium-Ion or Lithium-Polymer packs — or peaking, discharging and cycling 1-10 cell NiCd or NiMH packs.

Includes the Auto Smart Set feature for amazingly fast, easy and accurate results. Enter battery type, capacity and voltage, and the Auto Smart Set automatically calculates safety time-out, charge rate, trickle rate and discharge voltage cut-off.

Prevents overcharging with peak detection for NiCd and NiMH packs and cc/cv detection for Li-based packs, plus safety time-out and optional temperature sensor (HCAP0281) features that work with all three types!

Easy-to-follow flow charts are included that show how to manually program charge/discharge/cycle routines for individual packs.

Stores routines for up to 10 packs in memory and a wealth of data about each.

Easier to read and understand. On-screen messages feature fewer abbreviations, better explanations and units of measurement with every number — and appear on a big 2-line/16-character LCD!

Offers the ability to handle one pack at a time, or two packs simultaneously — even if the packs are of different cell chemistries.

AC/DC compatible — ideal for at-home preparation or at-field recharging.

Stock Number: HCAP0280

[ Check out reviews by RC Universe & R/C Power ]

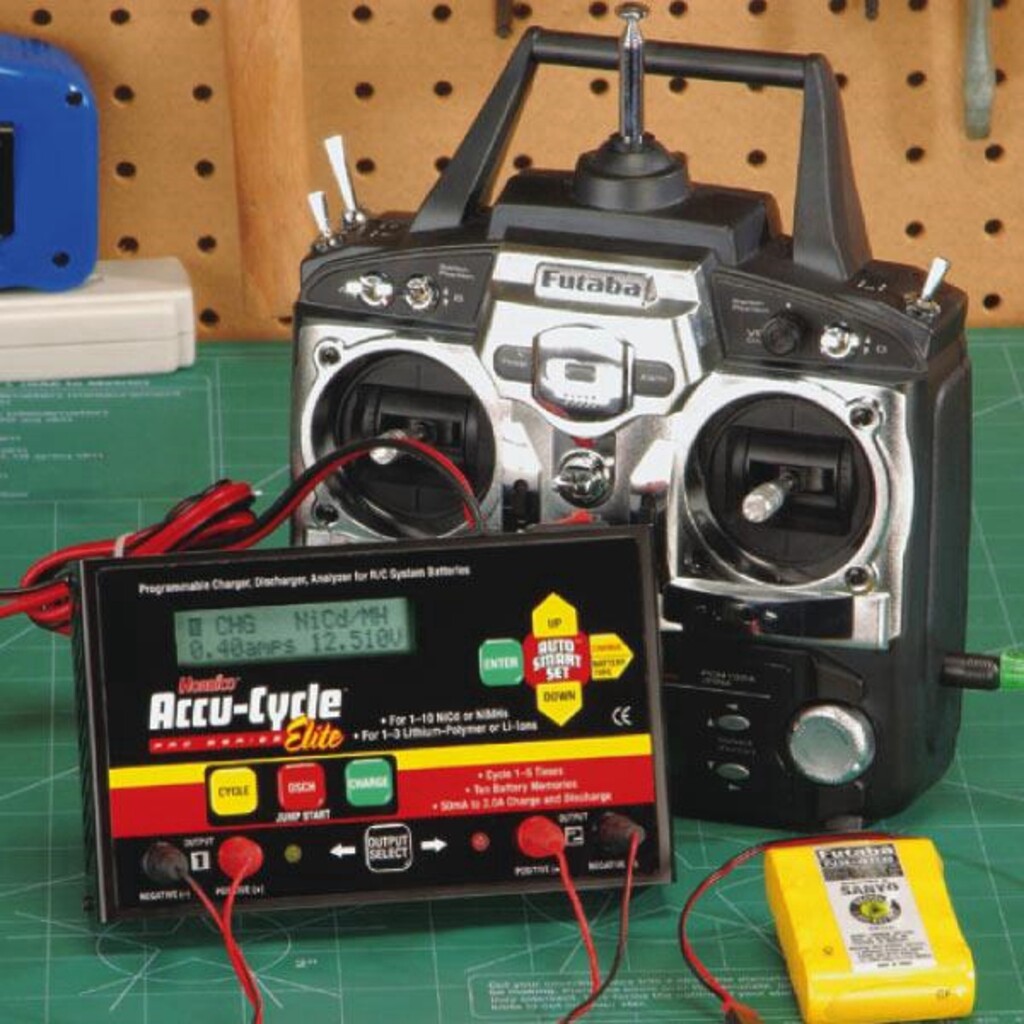

A perfect match for radio batteries, but ideal for single glow-starter cells and lithium-type park flyer batteries, too.

Enter the cell chemistry, voltage and capacity from the battery label, and the Auto Smart Set will automatically set the safety time-out period, charge current and discharge voltage cut-off for LiPo packs — and all three plus trickle charge rate for NiCd and NiMH packs!

Banana plug inputs connect directly to the AC power supply, or for at-the-field convenience to a 12V power panel's starter jacks or to the unique alligator clips which are included.

No mystery numbers or cryptic messages! The Elite's expanded text messages and labels spell everything out, from pack data to warning messages.

This is the Hobbico AC/DC Accu-Cycle Elite Battery Cycler. Charges, Discharges and Cycles NiCd, NiMH and Lithium-based battery packs. Perfect for radio batteries, Lithium Park Flyer batteries, plus single cell glow starter cells.

*** 2 Year Warranty ***

FEATURES:

Charges and Discharges 1-3 cell Lithium-Ion and Lithium Polymer packs For LiPo packs that are wired for balancing a LiPo Cell Balancer such as Great Planes' ElectriFly Equinox (GPMM3160) is compatible with the Accu Cycle Elite Peak Charges, Discharges and Cycles 1-10 cell NiCd or NiMH packs Charges two batteries at once Auto Smart Set automatically calculates safety time-out, Charge Rate, TRICKLE Rate and Discharge Voltage cut-off based on battery type, capacity, and voltage Custom Charging and Discharging routines can be created for up to 10 packs and stored in memory Prevents overcharging with Peak Detection for NiCd and NiMH packs and CC/CV detection for Lithium-based packs On-screen messages appear on large easy to see two line 16-character LCD screen, messages feature less abbreviations, better explanations and units of measurement with every number AC/DC compatible for at home or on the field recharging Optional Temperature Sensor (HCAP0281) functions w/ all battery types Two Temperature Sensor ports Two year warranty

INCLUDES:

One Accu-Cycle Elite cycler

One AC adapter/power supply (NOT AVAILABLE SEPARATELY)

Two (Red & Black) alligator clips w/banana jacks

One instruction booklet

One Main/Memory menu sheet

One NiCd, NiMH, and Lithium menu sheet

One Charge/Discharge chart w/blank memory chart

REQUIRES:

If needed, a 12V DC source, such as HCAP0800 & HCAP0200 If temperature sensor is needed, use HCAP0281

Connectors to go from the charger to the battery or radio: HCAP0101....FUTABA J Tx/Rx LEADS ALL RADIOS EXCEPT 9VAP HCAP0102....FUTABA J Tx/Rx LEADS 9VAP ONLY HCAP0105....JR Tx/Rx LEADS HCAP0106....HITEC Tx/Rx LEADS HCAP0108....CHARGE LEADS, BANANA PLUGS TO ALLIGATOR CLIPS HCAP0110....Tx BATTERY WITH 9V CONNECTOR, FUTABA J Rx CHARGE LEAD HCAP0310....BANANA PLUGS ONLY (3 PAIR)

SPECS:

Input Voltage: 11-14.5V DC AC

Power Supply: 110V AC 60Hz input, 14.5V DC 2.5A output

Number of Output Ports: two For BOTH

Outputs: Battery

Types: Nickel-Cadmium (NiCd), Nickel-Metal Hydride (NiMH) Lithium Polymer (LiPo), Lithium-Ion (Li-Ion)

Number Cells: 1-10 NiCd or NiMH (1.2-12V) 1-3 LiPo or Li-Ion (3.6-11.1V)

Fast Charge Current: * 50-2000mA

Fast Charge Termination: NiCd/MH -"negative deltaV'" Peak Detection, LiPo -"Constant-Current/Constant-Voltage" (4.2V/cell max.) Li-Ion -"Constant-Current/Constant-Voltage" (4.lV/cell max.)

Peak Detection Sensitivity: 3-15mV per cell adjustable

Fast Chg Safety Timer: * automatically calculated TRICKLE

Charge Current: * 0-200mA

Peak Detection Delay: 3 minutes

Discharge Current: 50-2000mA

Discharge Cutoff Voltage: * 0.8-1.2V per cell adjustable for NiCd & NiMH 3.7V per cell fixed for Li-Ion and LiPo

Cycle Count: 1 to 5 (NiCd and NiMH only)

Cycle Delay- Chg/Dsch: 10 minutes

Status Indicators: two tri -color LEDs (Red/Amber/Green) Optional Temp.

Cutoff: ** 60-130°F (15-54°C)

Output Connectors: banana jacks

Battery Memories: ten

Display Type: 2-line, 16 character LCD

Case Size: 3.7 x 6.1 x 1.2 in (94 x 30.5 x 155mm)

Weight: 13.23oz (375g, not including Power Supply)

Length: 6.1" (155mm)

Width: 3.7" (94mm)

Height: 1.2" (30.5mm)

* Auto Smart Set Feature, can be manually overridden except for Fast Charge safety timer ** Requires optional Temperature Sensor HCAP0281

COMMENTS:

To achieve Elite's maximum potential when using a DC input the power source must be capable of delivering at least 5A of current while maintaining 12V DC

Some key comparisons of the Accu-Cycle series; Accu-Cycle Accu-Cycle Plus Accu-Cycle Elite

Input: 110V 60Hz AC 16V DC, 3A 11-14.5V DC, w/110V 60Hz switching AC supply Batt/Chemistry Types: NiCd, NiMH NiCd only NiCd, NiMH, LiPo, Li-Ion

Battery Capacity Range: 350-1800mAh 250-2000mAh 50-5000mAh

Rx Fast Charge Rates: 25, 50, 125mA 500 and 1000mA 50-2000mA calculated w/Auto Smart Set Tx Fast Charge Rates: 50, 125mA 500 and 1000mA 50-2000mA calculated w/Auto Smart Set Tx Discharge Rates: 250, 500mAh 250, 750mA 50-2000mA
