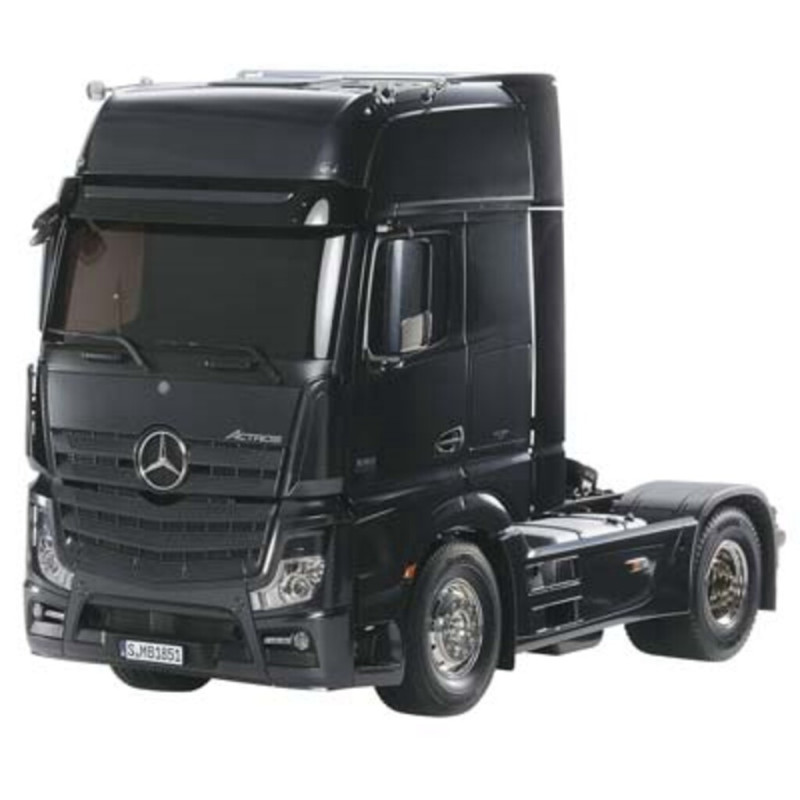

SEMI-TRUCK TAMIYA 1/14 MERCEDES BENZ 56342

FEATURES

• Chassis: Ladder frame with aluminum channels and resin cross members
• Cabin: Tilt forward operation just like full-size truck, removable fenders to depict a low carrying load
• Drive: Shaft driven from front mounted motor to rear axles which are equipped with differentials
• Motor: RS540
• Transmission: Three speed servo controlled constant mesh
• Shocks: Aluminum body, friction (not-oil filled)
• Suspension: Die cast metal front axle and reinforced resin rear axles float mounted on metal leaf springs and coil spring shocks
• Cabin: ABS plastic, black in color tilts forward separately from fenders, clear plastic windows, separate grille, mirrors, seats dashboard and other accessories add to realism
• Wheels: Chrome plated plastic
• Tires: Ten, treaded rubber construction

INCLUDES

1/14 scale Tamiya Mercedes Benz Actros 1851 kit, 540 motor, tires, wheels, decal sheet, 3-speed transmission, instructions and coupler unit for trailer (trailer not included)

REQUIREMENTS

• Radio: 4-channel with 4-channel receiver, NOTE; radio w/analog or digital trims can be used if not planning to use the Multi
• Function Unit, if Multi Function Unit will be used, a radio with analog trims MUST be used
• Servos: Two standard size for steering and shifting
• Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do not use the Tamiya TEU101BK or the TEU104BK
• Battery: 6-cell stick
• Battery Charger: Timed or peak for 6-cell battery
• Paint, building & track equipment

SPECIFICATIONS

• Length: 18" (458mm)
• Width: 7.7" (195mm)
• Height: 12" (305mm)
• Gear Ratio: Low Gear 1:32.49
• 2nd Gear 1:17.66
• 3rd Gear 1:10.66
