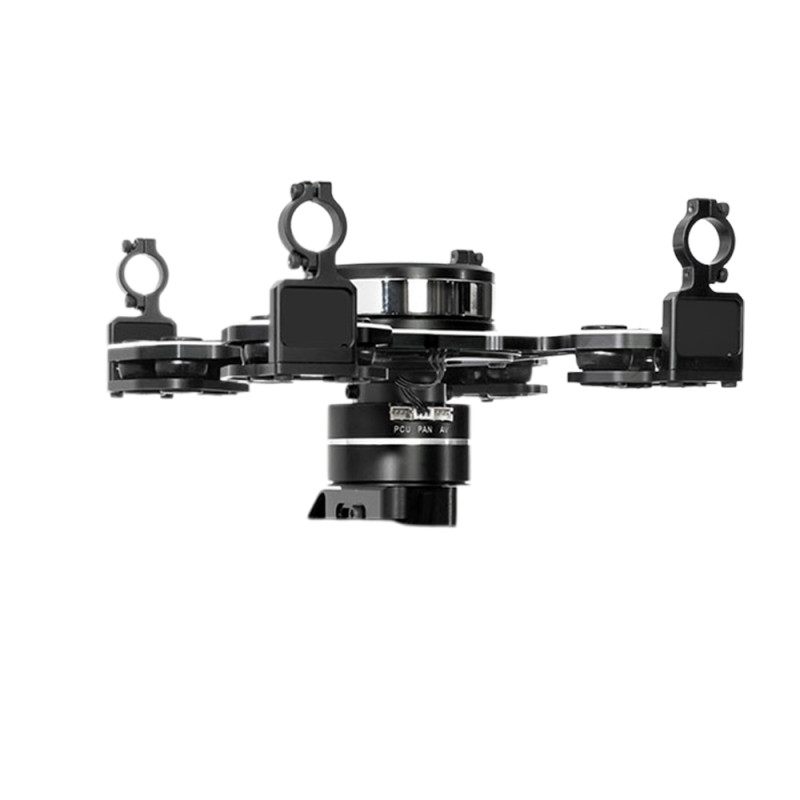

MR ALIGN GIMBAL G3-5D 3 AXIS RGG302XT

Ref: 193283
Estoque: Disponível
R$ 8.991,00
Comprar

GIMBAL G3-5D 3

Align G3 gimbal features an advanced control system with superior computational power. The highly integrated design allows for quick conversion between multicopter use and hand held use. Adjustable balance point on all 3 axis for greater camera compatibility, while the high precision brushless motors provide excellent agility and stability. Built in HDMI/AV converter and RC receiver connectivity. Supports programmability through PC interface, or connectivity to iOS/Android smartphones through Bluetooth. Equipped with automatic calibration function during power up. Supports single RC transmitter mode through APS-M, or independent remote control of the gimbal through a dedicated RC transmitter, as well as remote shutter trigger and video start/stop control to capture the optimal footage through precise framing.

G3-5D Gimbal/Camera/Lens Compatibility List (For Reference)


Gimbal Controller Specification

  • Input Voltage: DC 12V(3S)
  • Current Draw: <500 mA@12V
  • Maximum Control Range:
    • PAN 360°
    • ROLL ±30°
    • TILT 90°
  • Maximum Control Rotation Rate:
    • PAN 60°/s
    • ROLL 60°/s
    • TILT 60°/s
  • Temperature Range: -20~80°C
  • Voltage Output：5V / 0.5A
  • Dimension: 59.5x35x16.4mm

HDMI-AV(Digital to Analog) Converter Specification

  • Input Voltage: DC 12V(3S)
  • Power Consumption: 1800mW (12V/150mA)
  • Compatible Cameras: G3-5D: Canon 5D or equivalent.
  • Supported Output Format: 1800mW/ 50HZ/60HZ；720P/ 50HZ/60HZ；576P/ 50HZ/60HZ；480P/ 50HZ/60HZ；1080I/ 50HZ/60HZ；576I/ 50HZ/60HZ；480I/ 50HZ/60HZ
  • Video Output Format: NTSC(480I)
  • Signal Output Resistance: 75Ω
  • Temperature Range: -20~65°C (-4 ~ 149°F)
  • Dimension: 42x32x7mm
