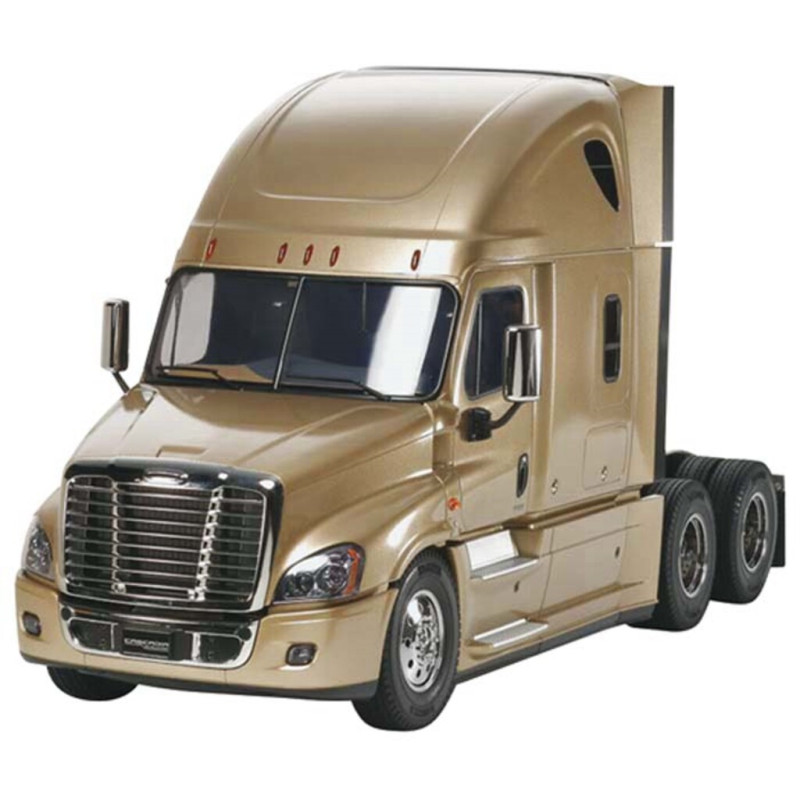

SEMI-TRUCK TAMIYA 1/14 CASCADIA EVO TRK 56340

FEATURES

• Chassis: Ladder frame with aluminum channels and resin cross members
• Cabin: Tilt forward operation just like full-size truck, removable fenders to depict a low carrying load
• Drive: Shaft driven from front mounted motor to rear axles which are equipped with differentials
• Motor: RS540
• Transmission: Three speed servo controlled constant mesh
• Suspension: Die cast metal front axle and reinforced resin rear axles float mounted on metal leaf springs and coil spring shocks
• Cabin: ABS plastic, white in color tilts forward separately from fenders, clear plastic windows, separate grille, mirrors, seats dashboard and other accessories add to realism
• Wheels: Chrome plated plastic
• Tires: Ten, treaded rubber construction

INCLUDES

1/14 scale Tamiya Cascadia Evolution semi kit, 540 motor, tires, wheels, decal sheet, 3-speed transmission, instructions and coupler unit for trailer (trailer not included)

REQUIREMENTS

• Radio: 4-channel with 4-channel receiver
• Servos: Two standard size for steering and shifting
• Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do not use the
• Tamiya TEU101BK or the TEU104BK
• Battery: 6-cell stick
• Battery Charger: Timed or peak for 6-cell battery Paint, building & track equipment

SPECIFICATIONS

• Length: 25.5" (648mm)
• Width: 7.7" (195mm)
• Height: 12.1" (308mm)
• Gear Ratio: Low Gear 1:32.49
• 2nd Gear 1:17.66
• 3rd Gear 1:10.66

COMMENTS

The Tamiya Multi Function Control Unit (TAMC6511) not included, provides many different truck related sound effects. The Multi Function Control Unit REQUIRES a radio with analog trims

• The following Tamiya paint colors are recommended in the manual;
• Light Sand Metallic (limited edition color)
• TAMR5038, TS-38 Gun Metal
• TAMR5014, TS-14 (X-1) Black
• TAMR5029, TS-29 (X-18) Semi-Gloss Black
• TAMR5046, TS-46 Light Sand
• TAMR5071, TS-71 Smoke
• TAMR8654, AS-4 Gray Violet
• TAMR8672, AS-22 Dark Earth
• TAMR8102 X-2 White
• TAMR8111 X-11 Chrome Silver
