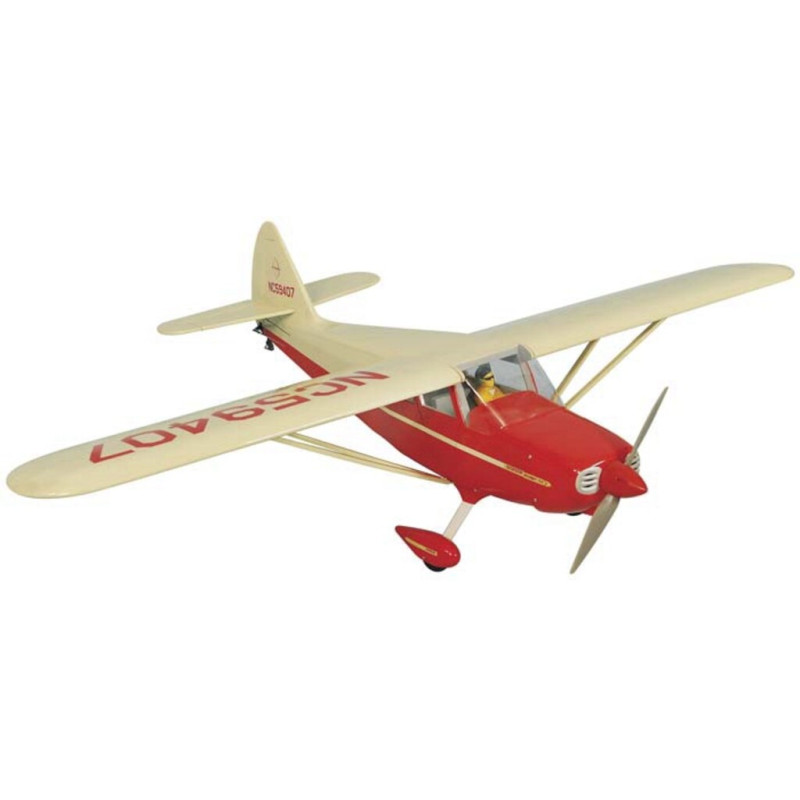

AVIAO PHOENIX STINSON 46 EP/GP ARF PMMA1357

FEATURES

• Construction: All balsa and plywood
• Wing: Bolt-on two-piece, aluminum wing joiner
• Aileron Control: Dual servo
• Cowl: Painted fiberglass
• Covering: Adhesive backed factory applied, color scheme is red and beige
• Canopy: Clear, removable for easy access to electronics, painted pilot bust
• Spinner: Red plastic 2.3" (58mm)
• Engine Mount: Two-piece composite
• Motor Mount: Plywood
• Landing Gear: Main, prebent aluminum, tail gear, spring loaded with 1" (25.4mm) tailwheel, two 2.5" (63.5mm) main wheels
• Fuel Tank: Approximately 10oz (295cc)

INCLUDES

• ARF Stinson Scale Airplane with Fuel Tank
• Motor Mount, Engine Mount
• Landing Gear, Spinner
• Pilot Bust and Instructions

REQUER PARA COMPLETAR O KIT

• Radio: 4-channel with four servos for electric power, one throttle servo if using glow power
• Glow Power:
• Engine: .46-.55 cu in (7.5-9.0cc) 2-stroke .52-.61 cu in (8.5cc) 4-stroke

• Receiver Battery: 4.8-6V / 800-1200mAh NiMH Glow fuel, prop, glow starter.
• Electric Power:
• Brushless Motor: Rimfire .46-.55

• ESC: 50-70A brushless compatible

• Battery: 4000-5000mAh LiPo battery

• Battery Charger: Compatible with selected battery Prop to match selected motor

SPECIFICATIONS

• Wingspan: 63.31" (1604mm)
• Length: 48.1" (1224mm)
• Flying Weight: 5.7 - 6.6lbs (2.6 - 3.0kg)
• Wing Area: 581 sq in (37.5 sq dm)
• Wing Loading: 24.41 oz/sq ft (74.5g/sq dm)
• Airfoil: NACA
• Center of Gravity: 2.6" (65mm) back from the leading edge of the wing at the fuselage
• Control Throws
• Ailerons: Low: 10mm up/down, 10% expo
• High: 12mm up/down, 10% expo
• Elevators: Low: 8mm up/down, 12% expo
• High: 10mm up/down, 12% expo
• Rudder: Low: 25mm right/left, 12% expo
• High: 40mm right/left, 15% expo

COMMENTS

If a replacement fuel tank is needed the Sullivan 10oz Rectangular Tank can be used. Some trimming and modification may be required.
