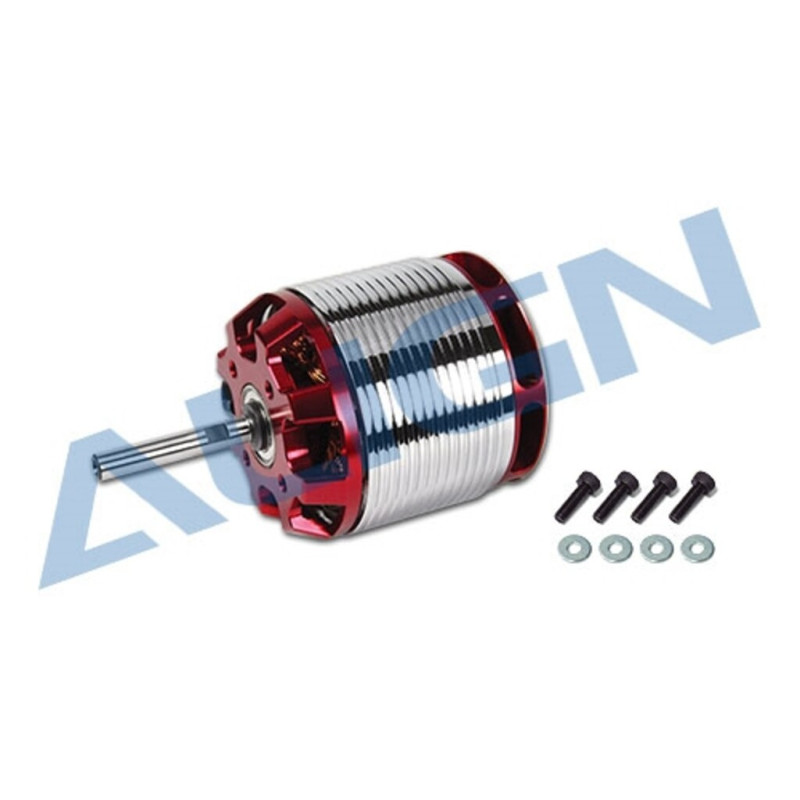

MOTOR ALIGN 800MX 520KV BRUSH HML80M12T

Ref: 185080
Estoque: Indisponível
R$ 1.267,25
Comprar
A armadura do motor 800MX é balanceada dinamicamente para eliminar o desequilíbrio típico encontrado em outros motores de outrunner. Possui alto torque, alta eficiência, estável e baixo ruído. Rolamentos de esferas de alta velocidade, poderoso magnético rotor do outrunner.  Adequado para helicópteros T-REX 700E, T-REX800E.

Especificaçãoes:
Input Voltage: 12S
Max Continuous Current: 115A/250A(2sec)
Max Output Power: 5100W/11000W(2sec)
KV Value: 520KV
Stator Arms: 12
Magnet Poles: 10

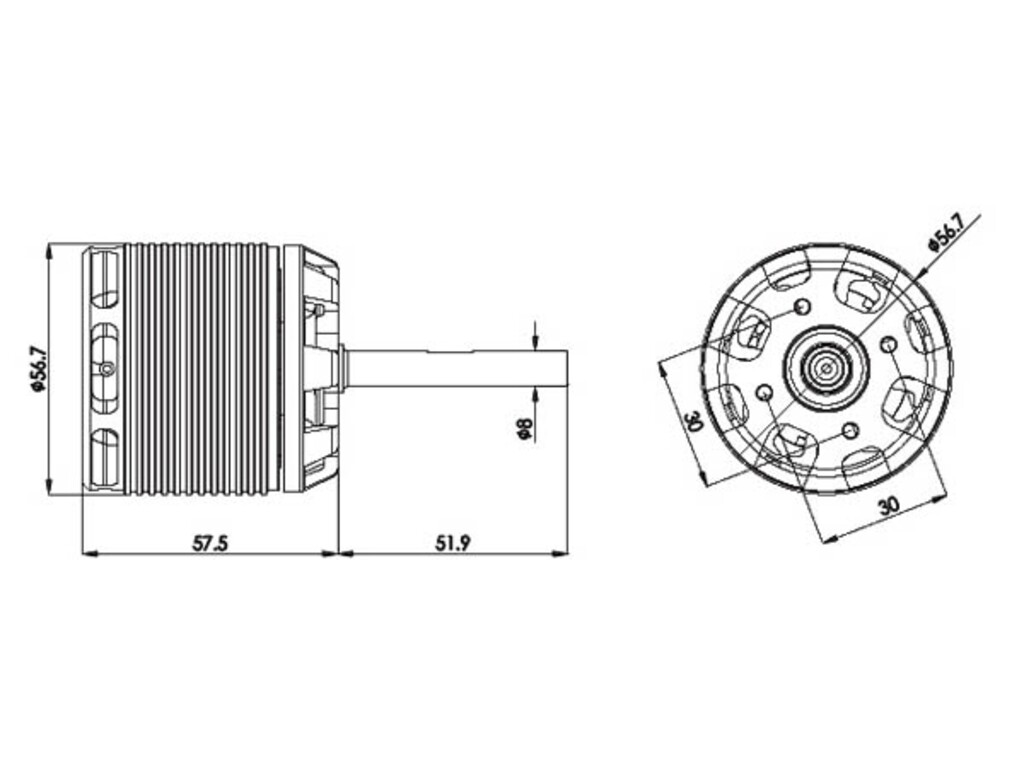

Dimension: Spindle 6x56.7x94.5mm
Weight: 508g

Instruções:
- To meet the power and torque requirements of enthusiasts, the high output 800MX motor was born in Align’s R&D lab. With dramatic increase in torque and power output, capable of 5100 watts continuous power output and 11000 watts of burst power!
- 800MX features high efficiency, superior power, excellent torque, low current draw and low temperature; it’s capable of maintaining consistent torque and head speed through continuous 3D maneuvers.
- Due to the 800MX’s high efficiency and low current draw, the standard equipment 120A electronic speed controller are sufficient to experience the power of this motor, and extend battery longevity.
- 800MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
