V-BALANCER FLIGHTPOW TRACKPOWER FPWC0110

Ref: 18449

Estoque: Disponível

R$ 360,45

Comprar

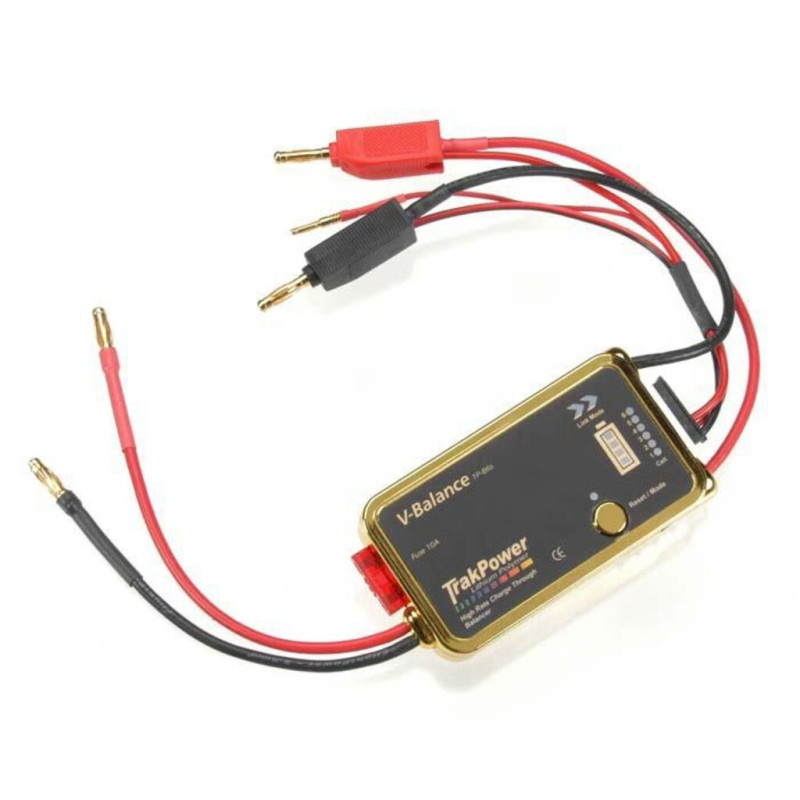

This is the TrakPower V-Balance LiPo Balancer.

FEATURES: Balancing capability of 2-6S
Up to 10A charge-through/Discharge-through balancing (Fused)
Fuel gauge to indicate overall pack voltage (can be toggled to
indicate individual cell voltages)
Battery capacity "fuel" gauge
Individual cell analysis and discharge functions
Active/Sleep indicator
Software functions: Over-discharged Sleep, Discharged disconnect Link
Mode and Sleep, balanced off charge then Sleep, full disconnect
Link Mode and Sleep, over-charged Discharge to safe and Sleep

INCLUDES: TrakPower V-balance LiPo Balancer
TrakPower 2S harness lead
Instruction Manual

REQUIRES: LiPo batteries with a compatible Balance Connector

SPECS:

Input Battery Voltage: 6V to 30V
Charger Input Voltage: 55V
Max number of cells: 2 to 6 cells Lithium Polymer
Max. through current: 10A max
Voltage resolution: ±5mV
Casing: Injection molding with built in ventilation. Maximum 135°C.
Over-charge protection voltage: 4.21V ±0.010V
Over-Discharge protection voltage: 3.00V ±0.010V
Dimensions: 3.46 x 1.96 x .62 in (88 x 50 x 16mm)

COMMENTS: This Balancer only works with the TrakPower batteries because
of the connectors and wiring.
CANNOT BE USED WITH LiPo PACKS NOT WIRED FOR BALANCING.

tlw 6/8/07
ir/jx
