3DR BLUETOOTH DATA LINK PX4 PX4-KIT-0014

Ref: 177849
Estoque: Disponível
R$ 471,90
Comprar

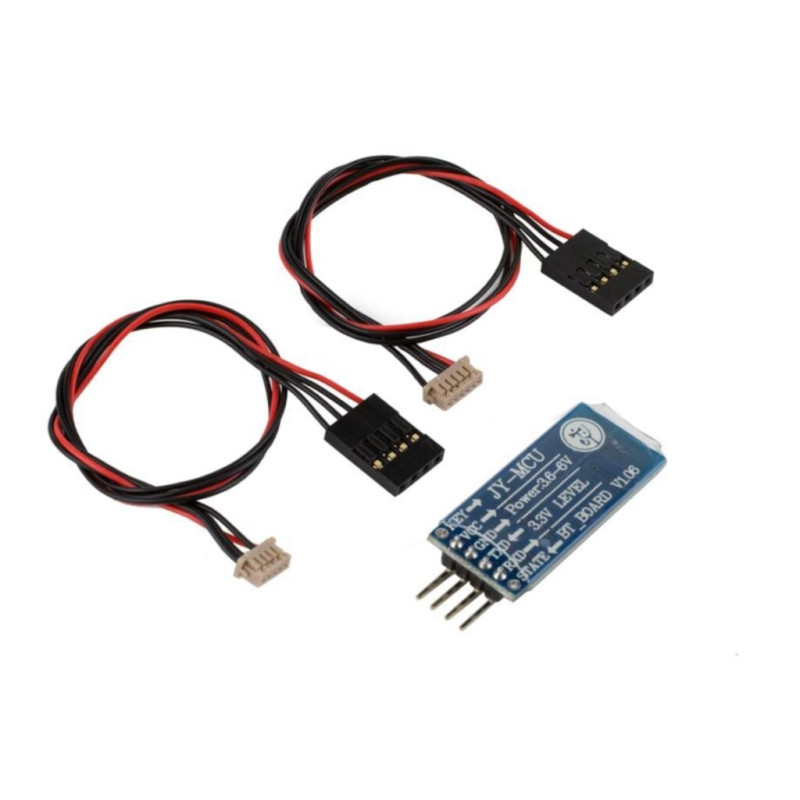

Connect to your vehicle using Bluetooth! This Bluetooth data link module allows you to connect a Pixhawk or APM autopilot to a Bluetooth-compatible Android device using DroidPlanner or Andropilot ground station apps. Leave your telemetry radio and OTG cable at home, and make a direct Bluetooth connection for pre-flight mission planning and vehicle setup.

Click here to view instructions.

Includes:

  • Bluetooth module
  • Pixhawk cable (six-position DF13 to FTDI) 20 cm
  • APM cable (five-position DF13 to FTDI) 20 cm

Specs:

  • Dimensions : 1.4" x 0.6" x 0.17"
  • Weight 9.6 g (0.3 oz)
  • Operation voltage: 3.6 to 6 V
  • I/O level: 3.3 V
  • Typical -80dBm sensitivity
  • Up to +4dBm RF transmit power
  • UART interface with programmable baud rate
  • Default baud rate: 57600
  • Supported baud rates: 9600, 19200, 38400, 57600, 115200, 230400, 460800
  • Pairing code: 1234
  • Auto-connect to the last device on power as default
  • Permit pairing device to connect as default
  • Integrated antenna
  • Range: 50 m

Note: This module is intended for pre-flight ground use only. It is not a replacement for an RC transmitter and receiver. The range of the connection is limited to standard Bluetooth range (50 m).
