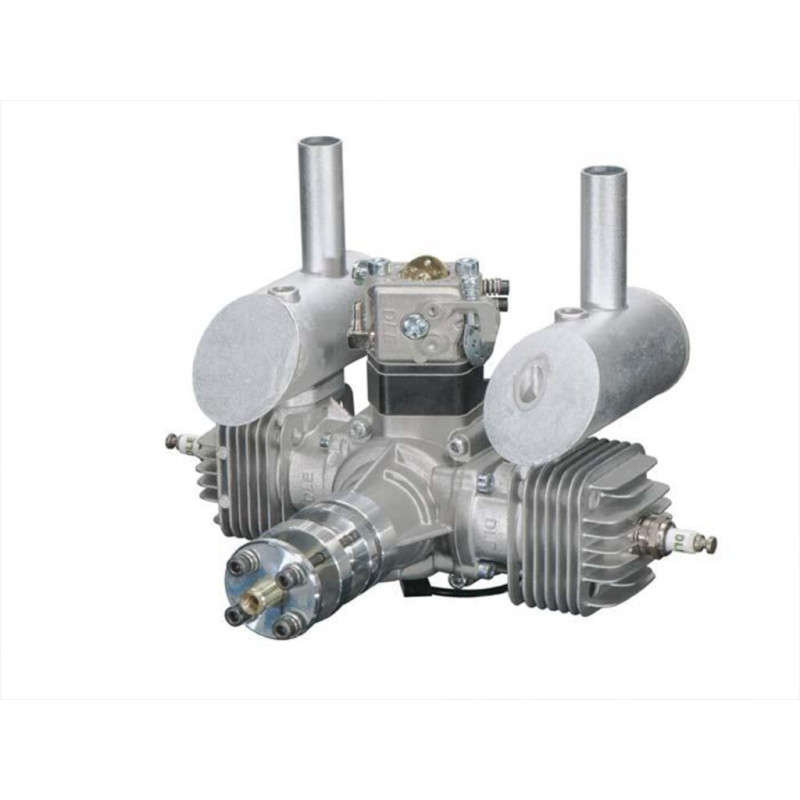

MOTOR DL ENGINE 40CC TWIN GAS WALBRO DLE40

Ref: 170758
Estoque: Indisponível
R$ 4.710,42
Comprar

FEATURES

  • Electronic ignition delvers smooth idle, easy starting and powerful throttle transition, spiral wire wrap eliminates interference
  • Updated muffler design for increased noise reduction, excellent aeration and power
  • Sealed crankshaft ball bearings
  • Optimized pumper carburetor with phenolic insert to insulate carburetor from engine heat
  • Lightweight pistons for fast acceleration, excellent compression and low vibration

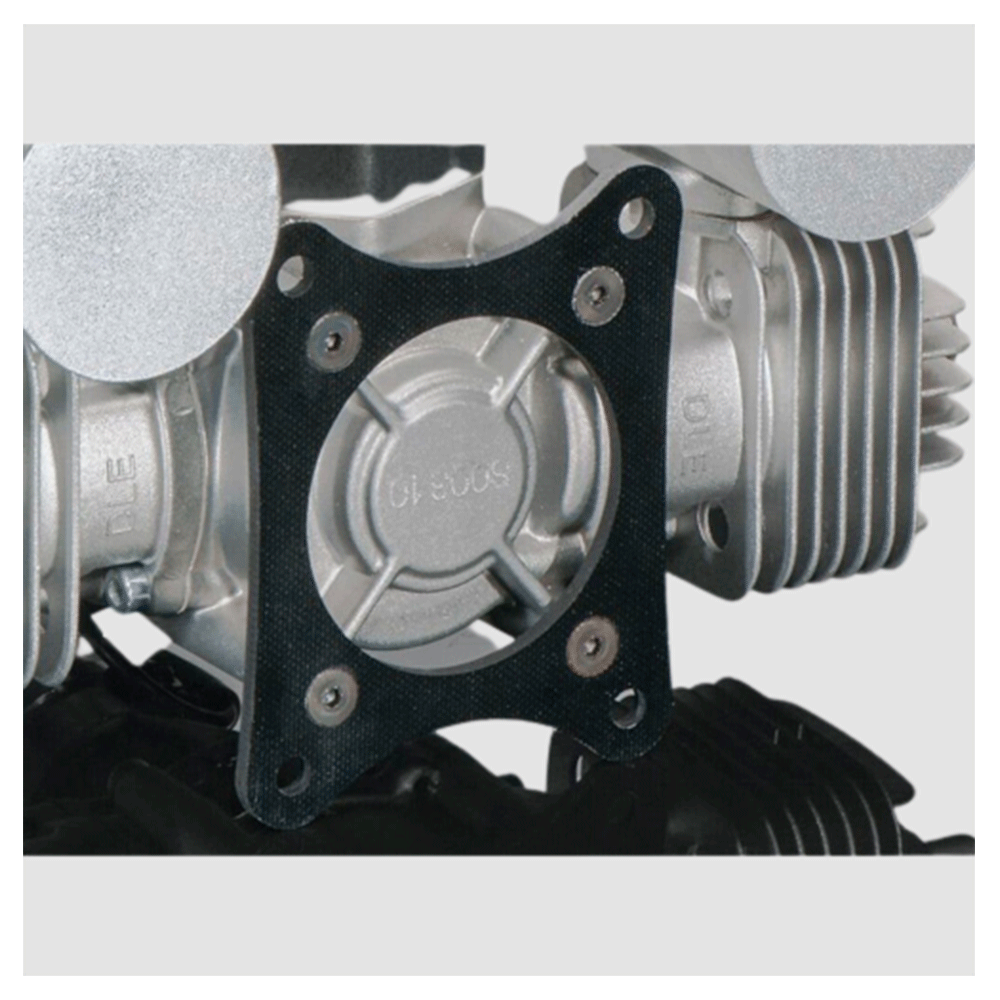

  • Composite backplate mount

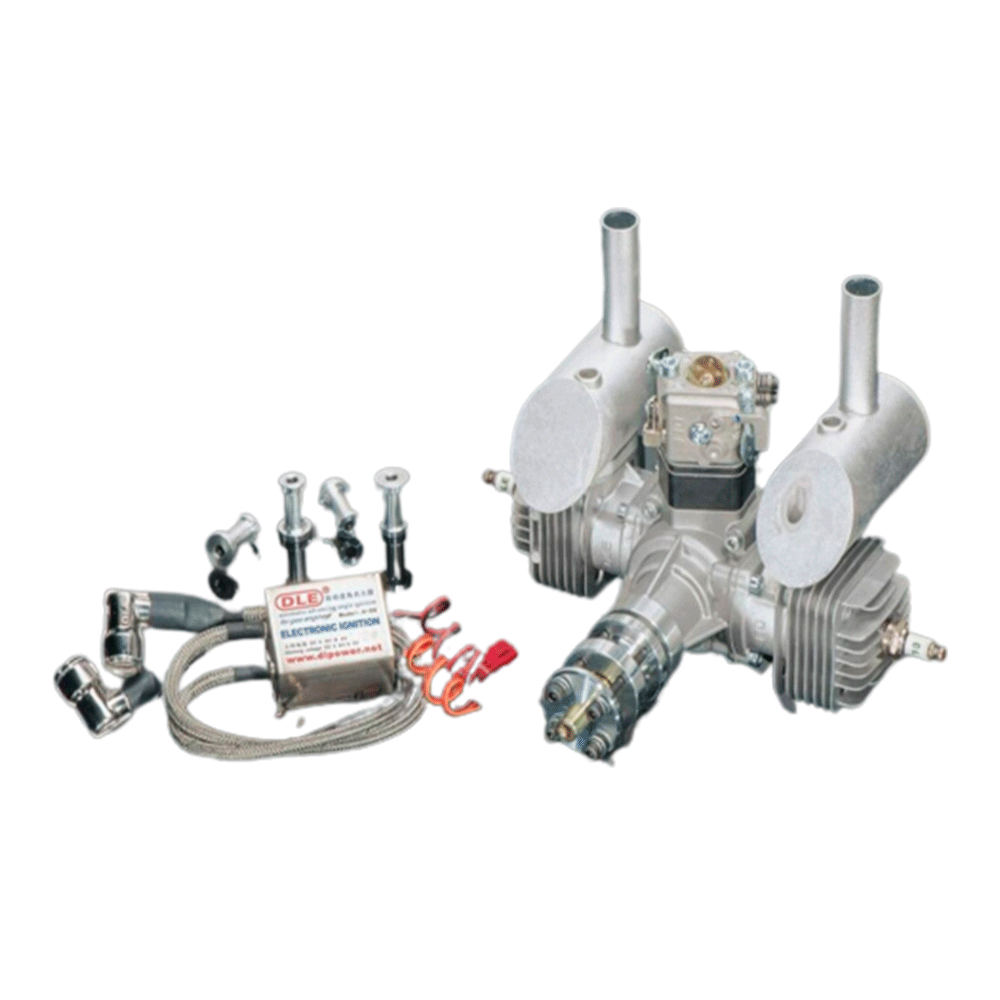

INCLUDES

  • DLE-40 Gasoline Engine with Electronic Ignition, NGK CM6 Spark Plugs,
  • Electronic Ignition, Mufflers, four 0.98" (25mm) Standoffs and Instruction Manual



REQUIREMENTS

  • 87 octane gasoline
  • 2-cycle oil, mix ratio for this engine is 30 parts gas to one part
  • Oil and must be followed exactly for warranty consideration and optimum performance
  • 4.8 - 6V NiMH/NiCd, or 6.6V LiFe or 7.4V LiPo battery for ignition (separate receiver style pack can be used) (LiPo & LiFe requires
    voltage regulator)


Propeller:

  • 19x8, 19x10, 20x8, 20x10
  • Field Equipment



SPECIFICATIONS

  • Displacement: 2.45 cu in (40.0 cc)
  • Bore (x2): 1.26" (32mm)
  • Stroke (x2): 0.98" (25mm)
  • RPM Range: 1,500-8,500
  • Performance: 4.8 HP @ 8,500RPM
  • Idle Speed: 1500RPM
  • Compression Ratio: 10.5:1
  • Overall Weight: 3.3lbs (1.5kg)
  • Engine Weight: 2.58lbs (1170g)
  • Muffler Weight (x2): 3.6oz (102g)
  • Ignition Module Weight: 5.3oz (149g)
  • Engine Mount Standoff Weight: 0.7oz (19g)
  • Miscellaneous Item Weight: 2oz (56g)
  • Width between Cylinder Heads: 7.1" (180mm)
  • Total Width Including Spark Plugs: 9.05" (230mm)
  • Distance between Mounting Hole Centers/Narrow Side: 2.1" (54mm)
  • Distance between Mounting Hole Centers/Wide Side: 2.7" (70mm)
  • Length/Backplate to Outer Edge of Prop Drive Hub: 6.3" (161mm)
  • Distance from Crankshaft Center/Outer edge of Carb: 3.5" (90mm)
  • Standoff Length: 0.98" (25mm)
  • Spark Plug Gap: 0.018 - 0.020" (0.45mm - 0.51mm)



Carburetor Settings; (carb is preset at factory and should require
only small adjustments)



  • Idle Adjustment Screw: Turn clockwise to increase idle speed,
    conterclockwise to decrease idle speed
  • Low Speed Needle: Turn needle to fully closed position, then open
    1.25 turns
  • High Speed Needle: Turn needle to fully closed position, then open
    1.5 turns-tachometer is recommended when setting high speed
    needle to obtain maximum speed
