IMAX OPTICAL TACHOMETER HELIC SK-500010

Ref: 164214
Estoque: Disponível
R$ 163,02
Comprar

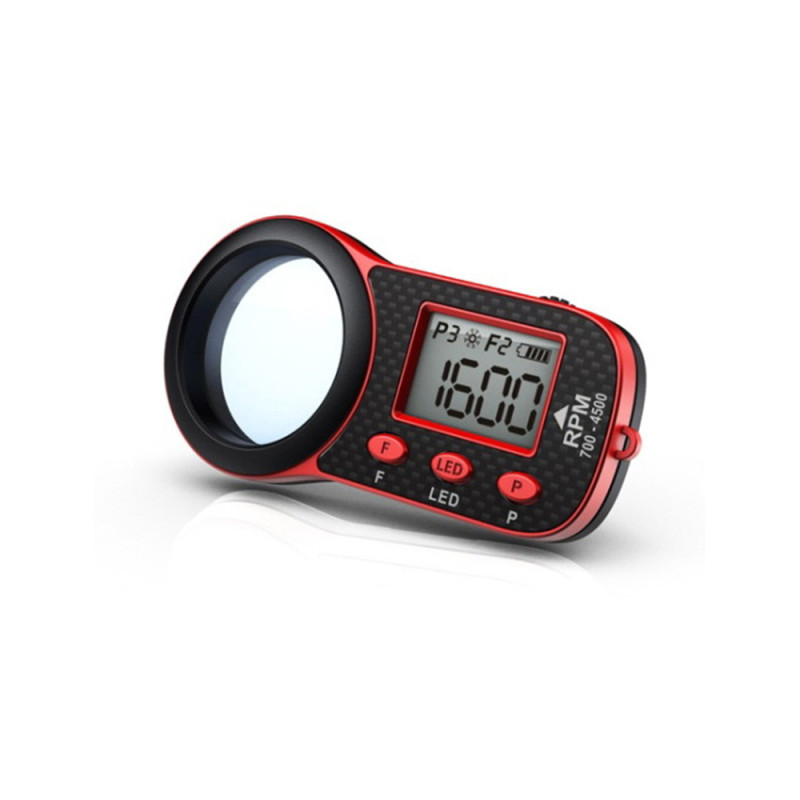

Optical Tachometer
  It is a must have tool for any pilot, and can measure RPM of any rotating object, such as all kinds of helicopters, fixed-wing airplanes with propellers and multi-copters. With high accuracy, fast response, compact size, ergonomic design and easy operation, this Optical Tachometer makes pilots have more fun!

  How it works

  As we know when the flashing frequency
of 3D Glass Screen is the same as the RPM
of a rotating object, if we view the rotating object through the 3D Glass Screen, the rotating object is "static". At this time, the flashing frequency of 3D Glass Screen is the RPM of this rotating object.
  LCD Display



  When we view the rotating
blades through the 3D Glass Screen, if the blades is"static", the flashing frequency displayed in the LCD is the RPM of this
blades.


Applied for all kinds of helicopters, fixed-wing airplanes with propellers and multi-copters.
  5 presets of Flashing Frequency/RPM
  The RPM range that the Optical Tachometer could test is from 700RPM to 4500RPM. In order to make it convenient for you to enter close RPM and find out the exact RPM in a short time, 5 presets of RPM can be saved in this unit and you could enter any preset by pressing "F" key. Each preset RPM value can be set according to your different helicopters and airplanes, and also the last RPM value before shutting off will be saved as preset.
  10 Level aperture adjustment
  As the back light of the rotating object is quite different, there are 10 levels of aperture which can be set by pressing "F" key. In this case,you could capture clear image through the 3D Glass Screen whether the light is bright or dark, so that you can get accurate RPM value of the rotating object.






  RPM Range   700-4500RPM
  Accuracy   ±1RPM



 		 Power supply   CR2032 button battery
  Weight   45g


 		 10 level aperture adjustment
  5 preset RPM value
  Rotary dial for RPM value adjustment
  LCD display
