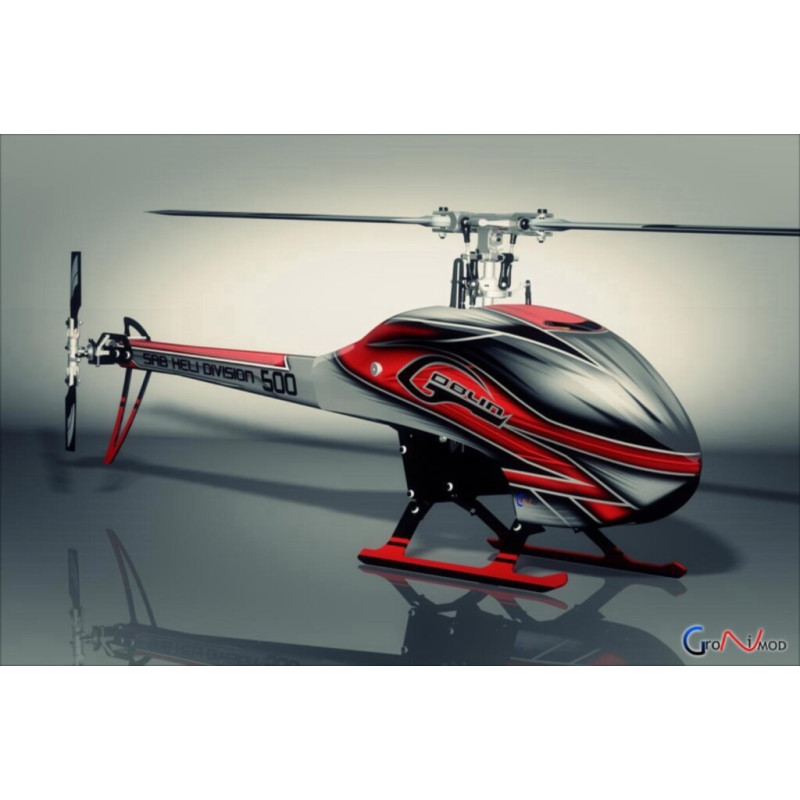

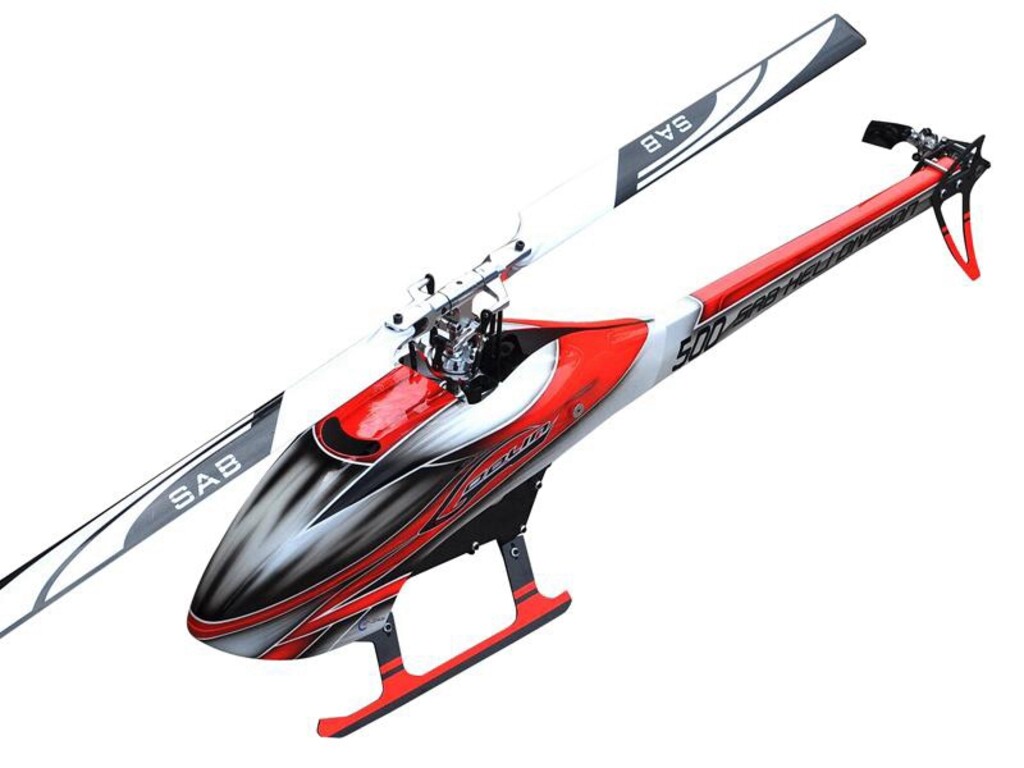

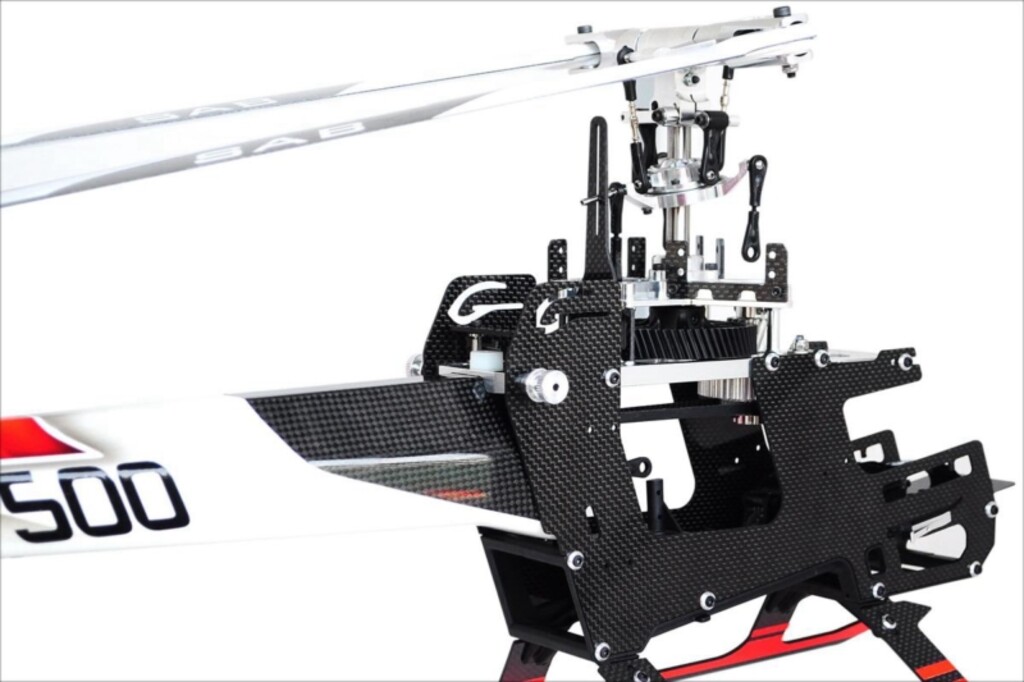

GOBLIN 500 FLYBARLESS KIT RED SG500

Ref: 159579
Estoque: Disponível
R$ 6.741,00
Comprar
http://www.goblin-helicopter.com/shop/imagesdesc/01.jpg
• Identical concept as Goblin 700
• Simple and effective design



 • Carbon fiber boom for maximum rigidity



• HPS (High Precision Head System)
• 10mm high strength steel main shaft
• 8mm high strength steel spindle shaft
 • Large tail pulleys for increased tail authority
• Dampened tail system for increased vibration tolerance

• Unique, extremely rigid transmission design
• Stiffness of the model defined by a single component
• Heat tolerant primary drive belt
 • Carbon fiber tail push rod hidden inside the boom for an aesthetically pleasing, unique design

 		 • Nylon bolt break-away system to preserve the boom during a crash

 		 • Landing gear mounting brackets don’t require bolts to be installed. The brackets are a break point during a crash preserving frames and other important parts



General Specifications
- Main rotor diameter:  1136mm (with 500 mm blades)
- HPS Head (FBL Only)
- Main blade length: 470 to 500mm
- Tail rotor diameter: 226 mm
- Tail blade length: 80 mm
- Main shaft diameter: 10 mm
- Tail shaft diameter: 5 mm
- Spindle shaft diameter: 8 mm
- Gear Ratios 6.9-11 : 1
- Weight including electronics: 1900 g (excluding flight battery).
- 18T motor pulley included (other pulley sizes available)
 - All pulleys are made for 6 mm motor shaft (5 mm motor shaft adapter included in kit)
Special Features:
- Full carbon fiber boom
- Quick release battery tray system
- Sacrificial breaking point for landing gear and boom
- Unique “inside the boom” tail push rod design
Electronic Specifications
- Cyclic Servos: Mini size (36mm)
   Normal and 3D Flight: Hitec 5245 MG, Align DS510M or DS515M, Savox SH1250, Graupner DES 678 MG, MKS DS-9660A, Futaba 9650
    HARD 3D: Futaba BLS153, Graupner HBS660 HV, JR DS3717 HV, HITEC 7245 MG HV, JR DS3711 HV
- Tail Servo: Standard size (40mm)
- Typical Speed Controller: 80/100A
  Normal and 3D Flight: Kontronik Koby 90, YGE 100 LV
  HARD 3D: Kontronik Jive 100 LV, YGE 120 LV, CC Talon 90
- Motors: (Max Diameter: 52 mm, Max Height: 52 mm)
   Normal and 3D Flight: Scorpion HK-4015-1070, Quantum 4115-1200
   HARD 3D: PYRO 600-1200, Scorpion, HKIII-4020-1100/1350, Quantum 4120-1200
- Flight Battery: (Max Dimensions: 52x53x180mm)
 6S 2800/4500 mAh.
Kit Includes:
- 18T motor pulley (other pulley sizes available)
- 500 mm main blades
- 80 mm tail blades
