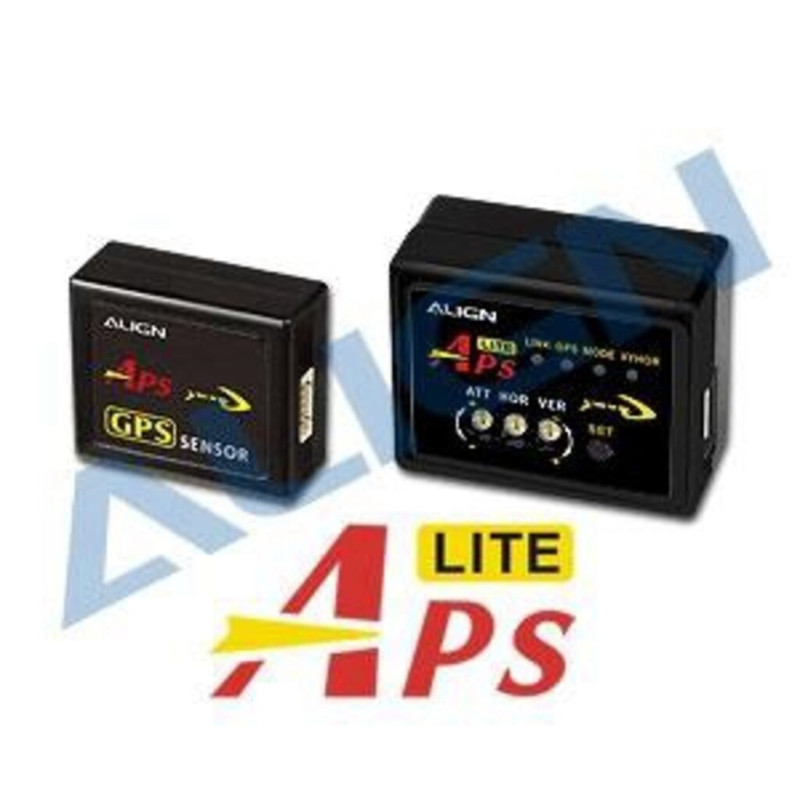

GYRO APS LITE AUTOPILOT GPS HEGAPS03T

Ref: 159104
Estoque: Disponível
R$ 3.591,00
Comprar
Product:
Product:
Product:
Package:
Instructions: Specification:
APS Lite Gyro is an electronic flight augmentation device, and can only function when used with Align's 3GX flybarless system. With APS Lite Gyro installed, the helicopter will have the ability to self stabilize, hold position as well as altitude, and even autonomous way point flights as well as return home. It is the perfect tool for flight training, as well as aerial photography applications.
Functions of Align APS Lite Gyro :
1.Semi-autonomous take off / Landing.
2.Automatic return home.
3.Emergency bailout stabilization.
4.Failsafe:Automatic return home during loss of signal situation.
5.Simple logical setting through transmitter.
6.Supports software upgrades.

Features:
- Align APS Lite has build in 3-axis accelerometer, 3-axis magnetic compass, altimeter, and GPS sensor to work with DSP processor to enable APS Lite to have precise detection and control abilities.
- For use with Align's 3GX flybarless system for ease of install and simplified setup, APSLite is functional with a few setup steps.
- Failsafe function, When helicopter lose RC signal, APS Lite will take over and fly the helicopter back to where the helicopter regains RC signal.
- Automatically helicopter stabilize function. When helicopter's attitude is not stable, switch to APS Mode will enable APS to immediately stabilize helicopter and provide a big help for the beginners.
- Supports Spektrum/JR satellite receivers and Futaba S.BUS architecture.
- Supports software upgrades.

 - Suitable Voltage Range:DC 3.5~8.4V
- Operating current consumption:<200mA @4.8V
- Operating temperatur:-20℃~65℃
- Operating humidity:0%~95%
- RoHS certified
- Hovering Precision (Depending on satellite status):
●Horizontal ±1m
●Vertical ±1m
- APS Control unit Dimension/Weight:
●35.4x27.9x17mm / 14.8g
- APS Sensor Dlmension/Weight:
●29.5x26.3x10.8mm / 12.7g
- Use for 3GX V3.1 Programmable Flybarless System
Accessories:
- APS Lite Control Unit × 1
- APS Sensor × 1
- APS gyro anti-vibration foam × 6(34x9x3mm)
- APS sensor mount × 1(34.5x30x6mm)
- APS sensor mounting platform tailboom clamp (550-700) × 1
- APS sensor mounting platform tailboom clamp (500) × 1
- APS sensor mounting platform tailboom clamp (450) × 1
- APS controller vibration dampening metal plate × 1(35.4x27.9x3mm)
- Signal Y-adapter × 1
- APS Signal wire × 1(350mm)
- APS Signal wire × 1(320mm)
-GPS Signal wire × 1(160mm)
- Self tapping screw × 2(T2x10mm)
- Self tapping screw × 2(T2.6x10mm)
- Self tapping screw × 2(T3x12mm)
- Gyro foam × 1 (3M 24x24x2mm)
- Plastic flat screwdriver × 1(Φ3xΦ7x40mm)
- 3GX DownLoad Page:(Click me)
