3DR DRONE CELLULAR KIT WLS-KIT-0001

Ref: 158022
Estoque: Indisponível
R$ 873,09
Comprar

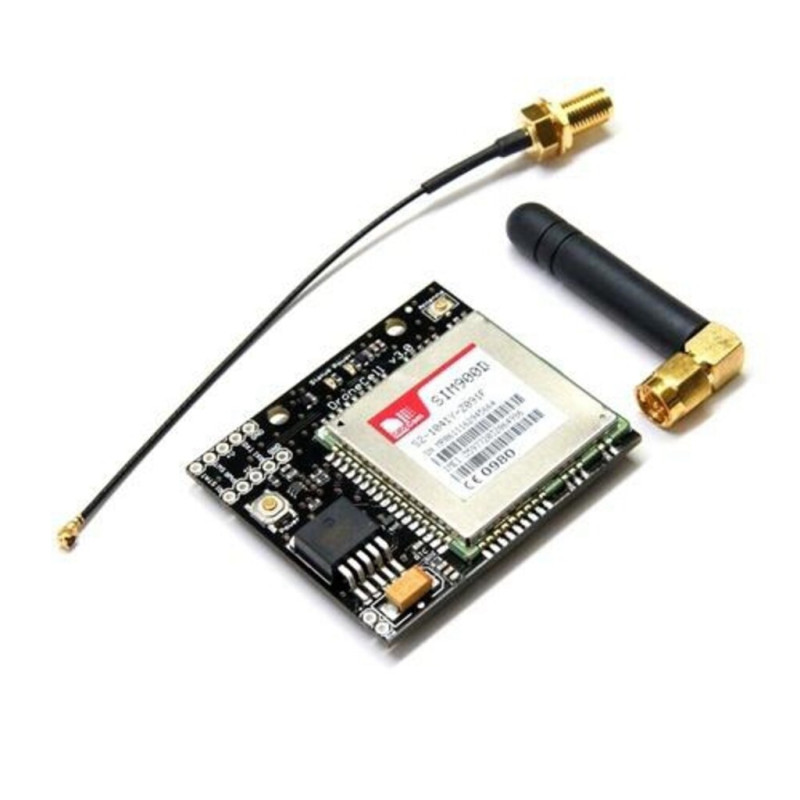

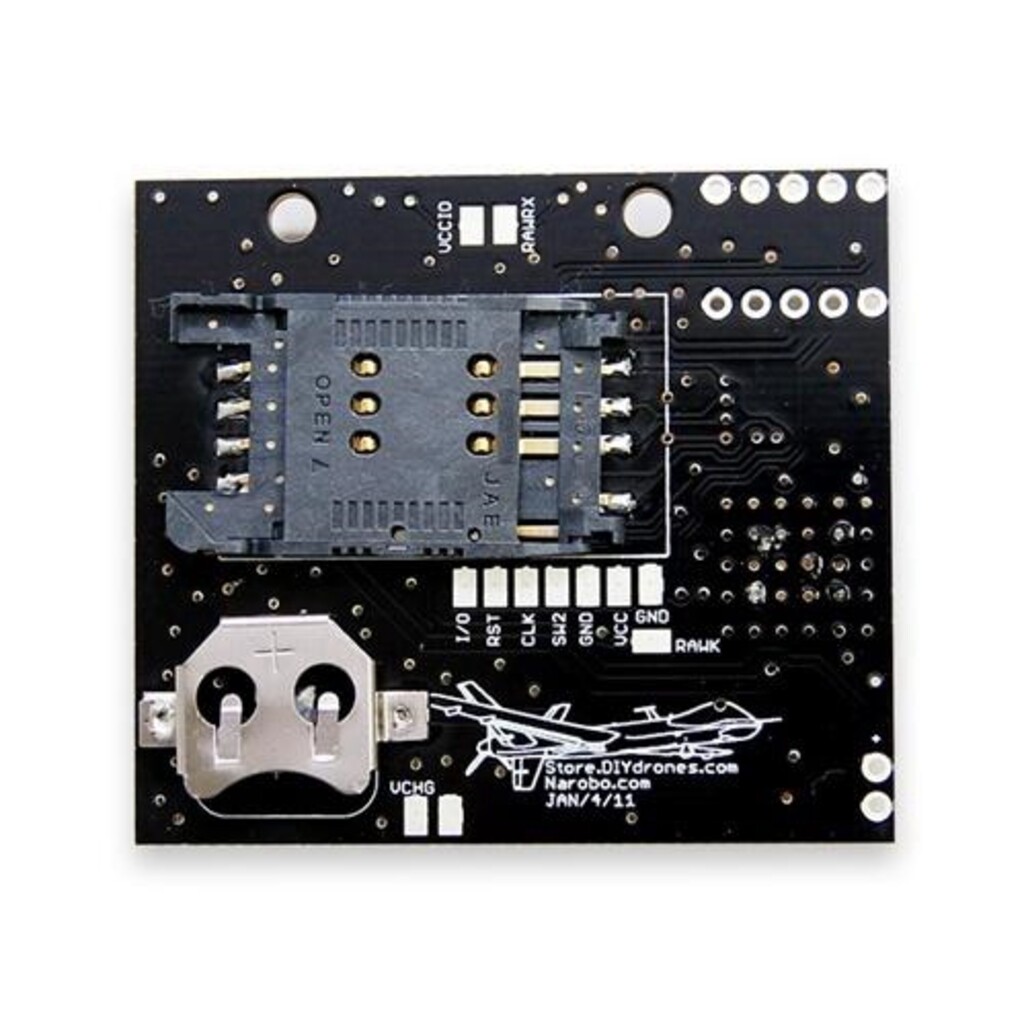

DroneCell kit

The DroneCell is a cell phone for your robotics/ electronics/ minicomputer/ anything project. Its an all-in-one communication device: communicate via texts, phone calls, or even over the internet. Any device with a TTL UART can communicate with the DroneCell. C libraries are available for download.


* Send and Receive Phone Calls
* Send Text Messages
* Communicate over the Internet
* Send and Receive Multimedia Messages ( pictures , text files )



Specifications:

LED indication for both network status and power

Small footprint (5cm x 4.5cm)

Breadboard compatible for easy prototyping

4.5VDC-16VDC power supply input

3.3V or 5V UART Interface (voltage-shifting is done on board)

High serial data rate (up to 115200 baud)

GPRS communication rate (86.5 kbps downlink) - cellular to server communication

CSD (up to 14.4 kbps) - cellular to cellular communication

Software configurable baud rate

Works with any SIM card

Quad band cellular connectivity

Internal switch to detect SIM card presence

Dial and receive phone calls (however, no microphone or speaker interface setup)

Send and receive text messages

Send and receive Multimedia Messages

Send and receive data to any Internet connected computer

Send and receive data over TCP or UDP sockets

Super long range (anywhere there is cell reception)

High altitude (at least 10,000 feet, up to 30,000 depending on Cell tower)

Phonebook entries and storage

Software libraries for AVR

Real time clock, synced to cellular tower time

User set alarms
