SPEED+MOTOR SV3 1/10 3800KV SDWIDER 2300

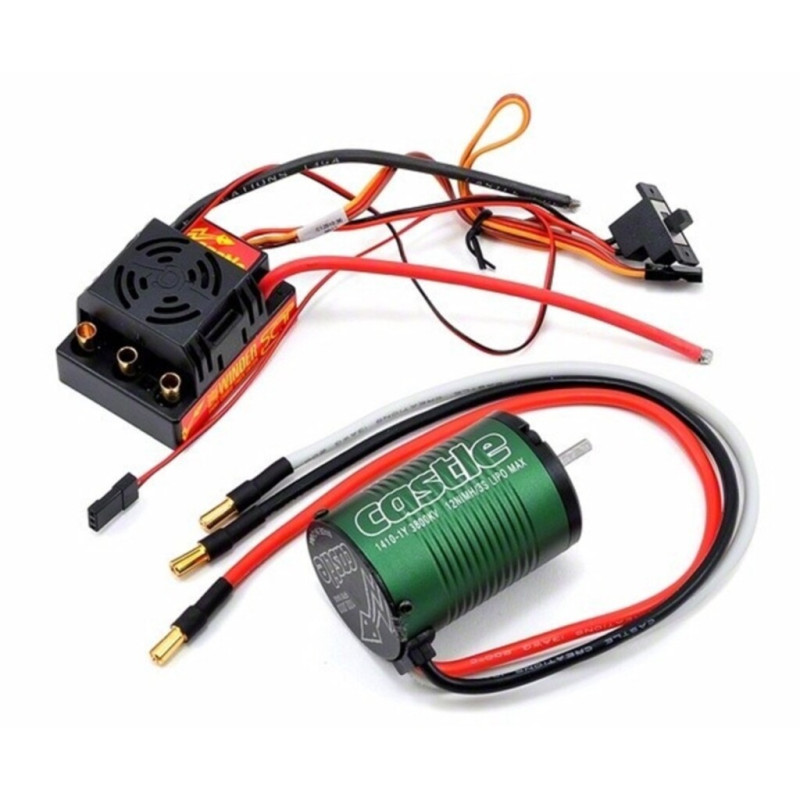

This is the Sidewinder SCT ESC and 3800kV Motor Combo from Castle Creations.

FEATURES:

Ideal for 2WD or 4WD short course racing or backyard bashing Neu-Castle 4 pole 1410 1Y motor has 50% more torque than Castle's CM36 series Sidewinder SCT has 40% greater power handling than previous Sidewinder 1/10 scale ESC Castle Link compatible (Field Link Portable Programmer Car Card (CSEM6300) required, not included) Proportional brake with reverse lockout Waterproof*

INCLUDES:

• Castle Creations Sidewinder SCT ESC
• 4mm Bullet Motor Connectors
• Neu-Castle 4 pole 1410 1Y Brushless Motor
• Instructions

REQUIRES:

Battery connector of modeler's choice

SPECS:

• ESC
• Input Voltage: Minimum 2S LiPo, maximum 3S LiPo
• Brake: Proportional
• Reversible: Yes, with lockout
• Width: 1.48" (37.5mm)
• Length: 1.93" (49mm)
• Height: 1.18" (30mm)
• Weight: 2.29oz (65g) without battery connector
• Motor:
• Pole Count: 4
• Stator Lamination Thickness: 0.0078" .2mm
• Bearings: CNC rated Japanese bearings
• Dimensions: 1.4 x 2.1" (36 x 53mm)
• Shaft Diameter: 1/8" (3.2mm)

COMMENTS

*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit. Maximum recommended vehicle weight is 6.5lbs (2.95kg)
