HELICOPTERO ALIGN T-REX 450L DOMINATOR COMBO 3GX FLYBARLESS RH45E10XT

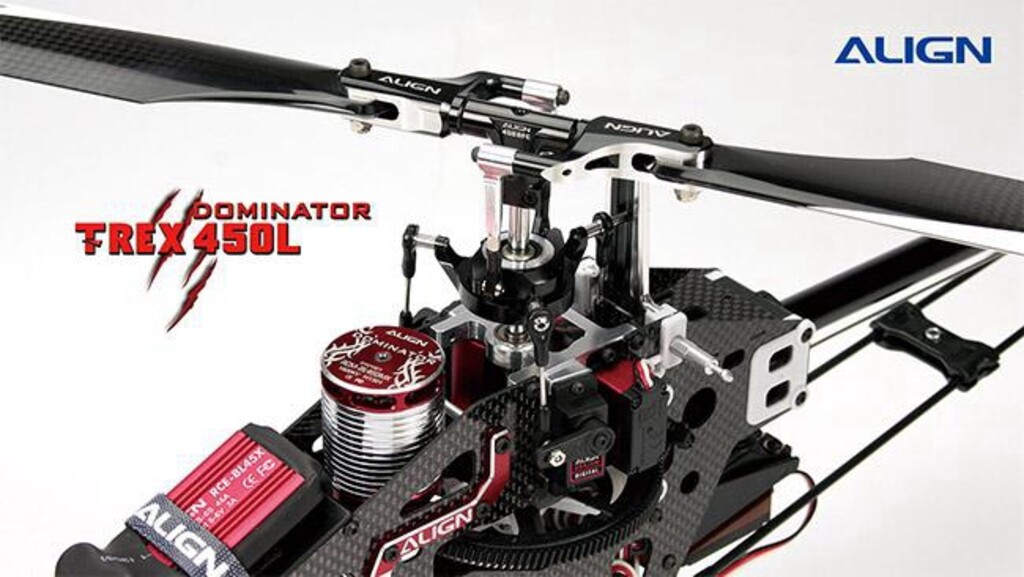

Equipped with the DFC flybarless head assembly, with extremely low CG design to minimize wind resistance while providing more direct control feel. In addition, the brand new main rotor head block and new spindle design has been incorporated as standard feature. Paired with newly designed 3D specific 360 3G main rotor blades that are both stable and agile, resulting in improved flight performance.

Carbon side frame plates utilized composite material integration technology, featuring integrated battery mounting rails. The clever use of open spaces within the frame resulting in a structure that is both rigid and aesthetically pleasing. In addition, the T-Rex 450L cleverly expands on the core concepts of T-Rex 450Pro designs, to carry on the heritage of its mature design of excellence.

Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts similar to that of T-Rex 700E DFC, for simplified servo installation and clean aesthetic. Brand new DS430M servos feature improved torque and speed, with dual bearings design to minimize deadband and provide better longevity.

Based on 6s voltage, the 460MX (1800KV) motor is tailor made for the T-Rex 450L DOMINATOR, featuring superior efficiency, high power output, extreme torque, and low current, low temperature. As a totem to the 850MX Dominator motor, The 460MX shares the same extraordinary pedigree.

Brand new RCE-BL45X electronic speed controller, capable of 2S-6S lipos, with switching BEC featuring variable voltage adjustment between 5V-6V.

Frame reinforcement plates were added to effectively increase frame rigidity and increase anti-torsion ability. Classic red anodizing increases overall aesthetics of the helicopter.

Brand new battery mounting plate with battery latching design, along with integrated mounting rails in side frames to simplify battery installs while protecting them.

New style swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.

Vertical rudder servo mount design for closer CG, increasing the sportiness of 3D flights.

Added tailboom support bridge design to increase the rigidity of the overall tailboom/support assembly.

Using competitive material and special imbedded technology for vertical tail, enhanced its structural strength and boutique texture efficiently, vivacious color providing excellent visibility.

Brand new tail blade grips with thrust bearing design, dramatically increase rudder precision and tail locking effectiveness, while increasing the longevity of bearings. The brand new extended tail rotor blades to match the 360mm main rotor blades also contributes to the tail locking performance. The new style paint scheme provides better visibility in midair.

New style dual point supported tail control assembly for slop free tail, improving on rudder resolution and control precision.
