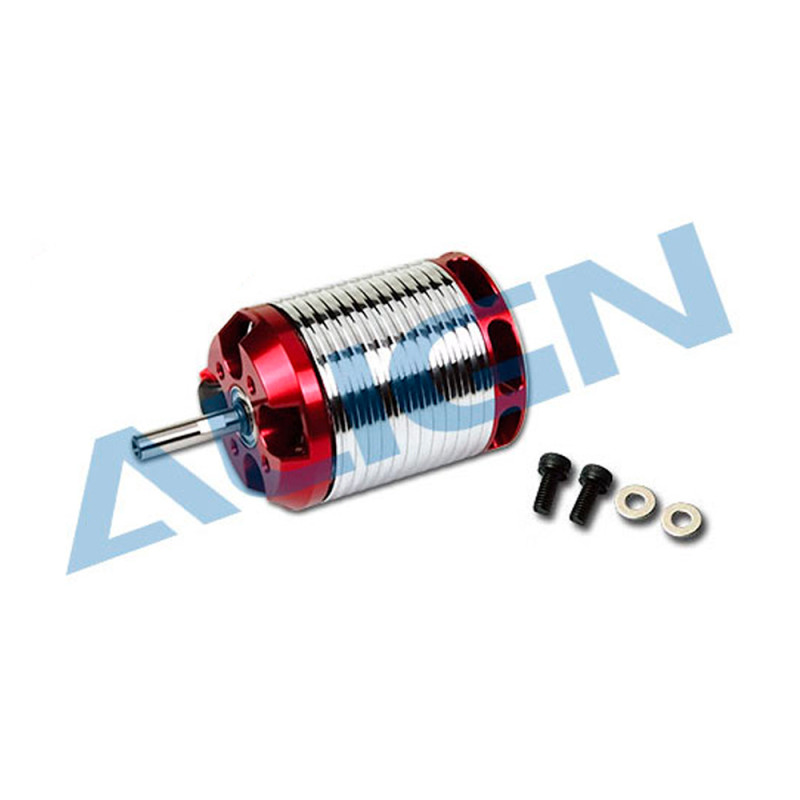

MOTOR ALIGN 460MX 1800K HML46M01T

Instructions:

• Continuation of Align over 25 years motor core technical knowledge and craft, based on 6s voltage, the 460MX (1800KV) motor is tailor made for the T-Rex 450L DOMINATOR, featuring superior efficiency, high power output, extreme torque, and low current, low temperature. As a totem to the 850MX Dominator motor, The 460MX shares the same extraordinary pedigree.
• As a totem to the 850MX Dominator motor, The 460MX shares the same extraordinary pedigree.
• Even for the none 3D pilots, 460MX 6S motor utilizes less than 5 amps at hover. Not only does this require smaller C-rating packs, the lower temperature extends the battery life at the same time. Charging time basically is cut in half. These advantages makes this an ideal motor for just about everyone.The 460MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation.
• The 460MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have.
• Maintenance free, high torque, high efficiency, low temperature variant, stable and quiet.
• Japanese made high-speed ball bearings, powerful magnetic outrunner rotor.
• Suitable for T-REX 450E series,Must with RCE-BL45X Brushless ESC(Governer Mode)(HES45X01).Effective immediately, the Align MX series motors have 50% off Lifetime service where your old motor can be exchanged for 50% off the retail pricing of a new equal spec motor. If needed, please contact to Align authorized distributors.



Specification:

• Input voltage:6S
• Max continuous current:30A/45A(5sec)
• Max output power:Approx. 650w/970W(5sec)
• KV value:1800KV
• Dimension:spindle 3.5x29.2x38mm
• Weight:Approx. 87g



Accessories:

•  Socket button head screw(M2.5X6mm) x 2
• Washer(2.6X5.8X0.6mm) x 2
• ALIGN standard 3mm gilt terminal x 3set
