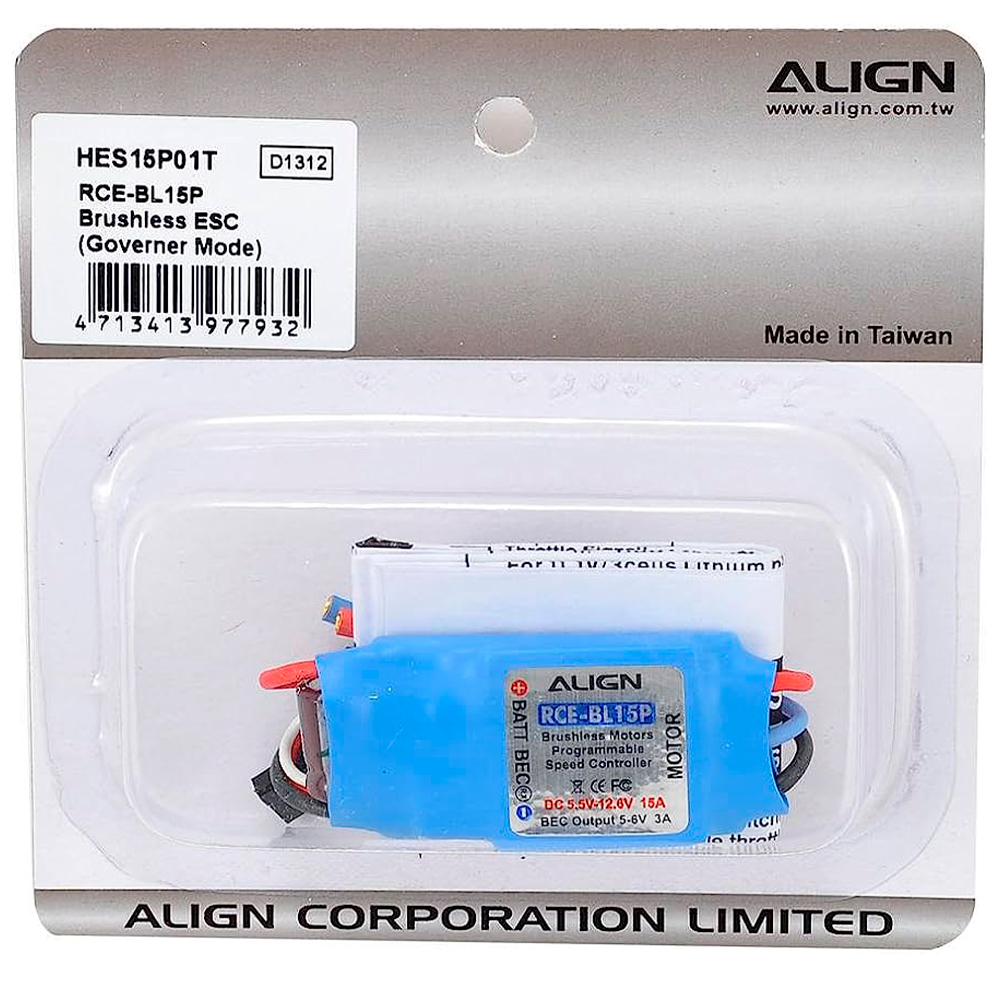

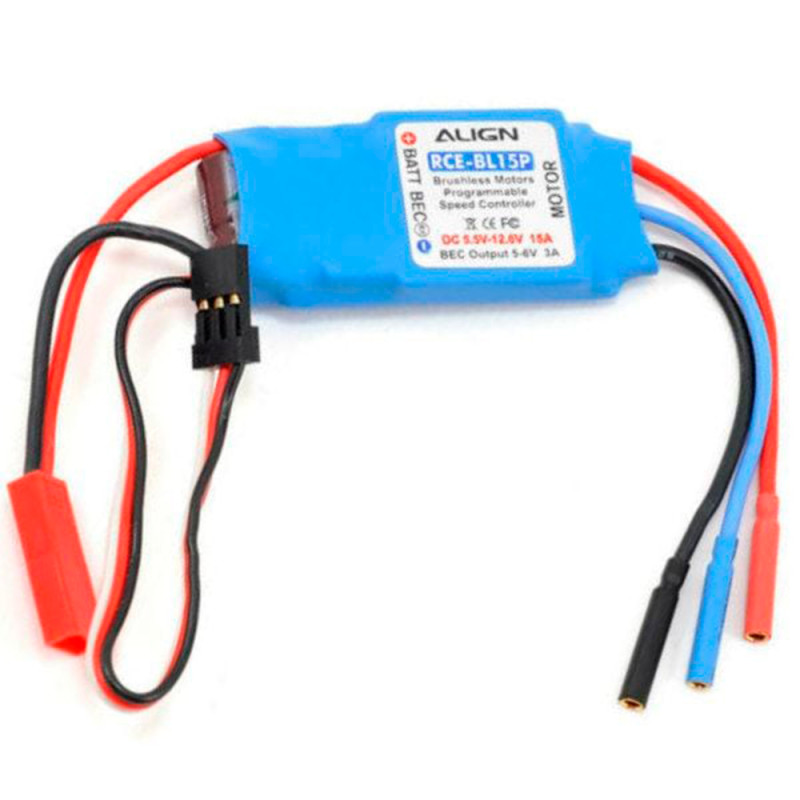

SPEED ALIGN 15A BRUSHLESS GOVER HES15P01

Ref: 137775
Estoque: Disponível
R$ 208,26
Comprar

Product:



Specifications:

  • 5-6V step-less adjustable BEC output allowing custom voltage setting to match servo specification.

  • BEC output utilizing switching power system, suitable for 7.4-11.1V (2S-3S) Li battery, with continuous current rating of 3A, and burst rating of 5A.

  • Three programmable throttle speed settings to support quick throttle response.
  • Soft Start and Governor Mode are included.

  • Small and compact PCB design for lightweight and simple installation.

  • Large heat sink for optimum thermal performance.

  • Highly compatible to work with 98% of all brushless motors currently on the market.

  • Ultra-smooth motor start designed to run with all kinds of brushless motors.

  • The power inlet utilizes a Japanese made "Low ESR" capacitor in order to provide stable power source.

  • The throttle has more than 200 step resolution that provides great throttle response and control.


Characteristics:

  • Continuous current:15Amps with proper air flow

  • Surge current: 20Amps

  • Supporting motor types:2 poles to 10+poles in/outrunner brushless motors

  • Supporting maximum RPM:2poles=>190,000rpm

  • Supporting input voltage:5.5V~12.6V

  • BEC output voltage: 5-6V step-less adjustment

  • Supporting battery types: Li-Po 2~3 cells

  • Size:47.6 X 23 X 9.3mm
  • Weight:16.4g


Accessories:

  • Plus ALIGN standard 2mm socket terminal X3pcs
