DJI 5.8GHZ VIDEO DOWN LINK TX + RX

Ref: 132466
Estoque: Disponível
R$ 824,92
Comprar

The new DJI Downlink is specially designed to work with the new On Screen Display module, and Zenmuse gimbal for professional aerial photography and video.

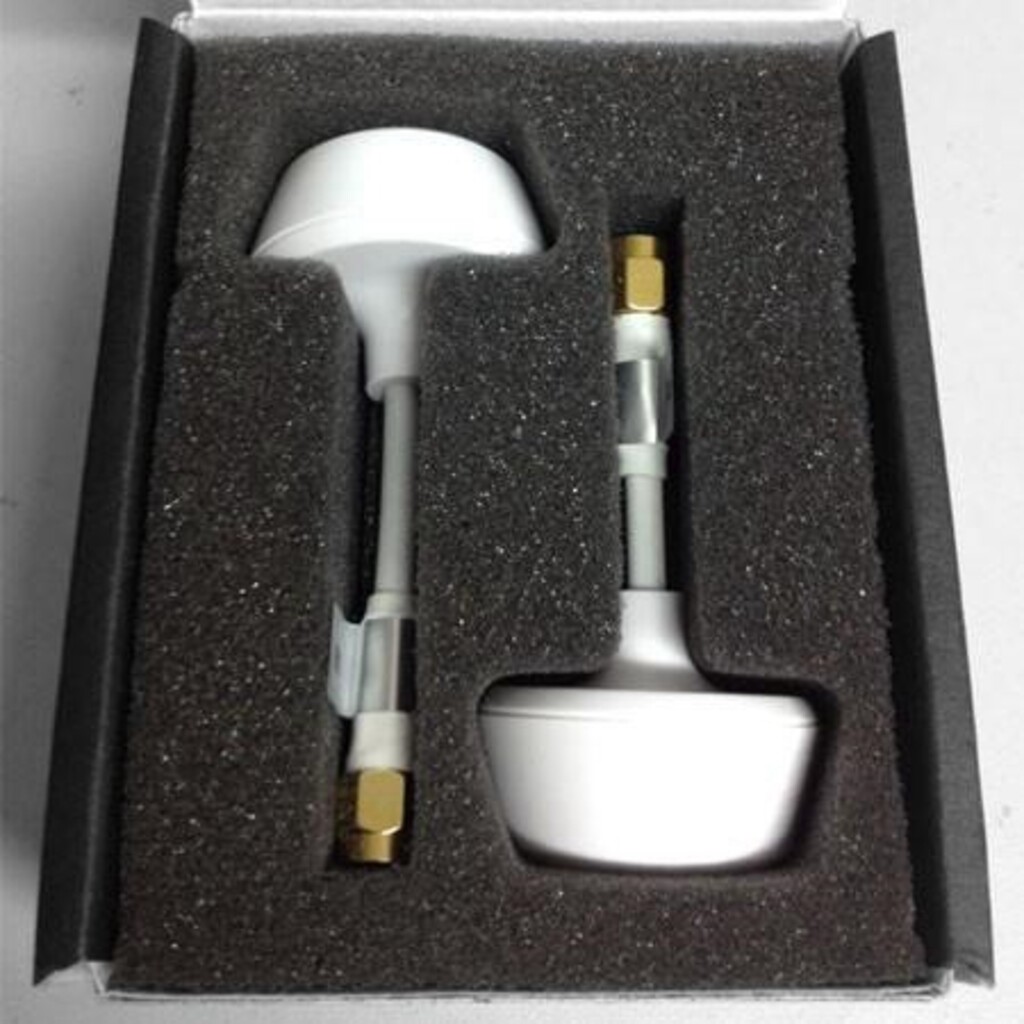

With the OSD module from DJI, voltage, altitude, distance to home, and other features are displayed on screen. This will work with either a PAL or NTSC video transmitter and overlay all this information onto your fpv goggles or monitor.  Two cloverleaf antennas are included with the Transmitter and Receiver.

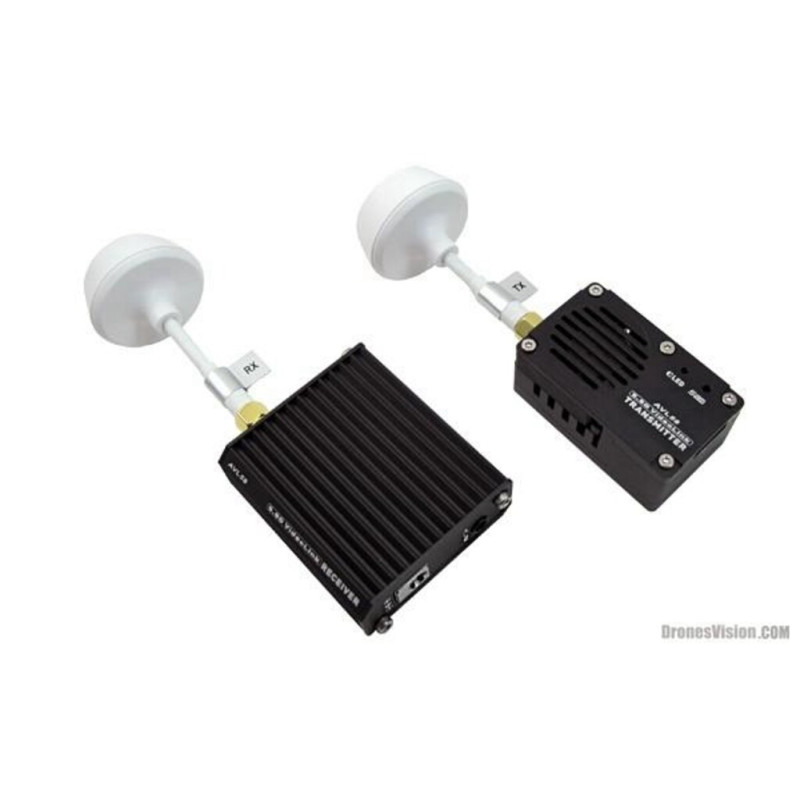

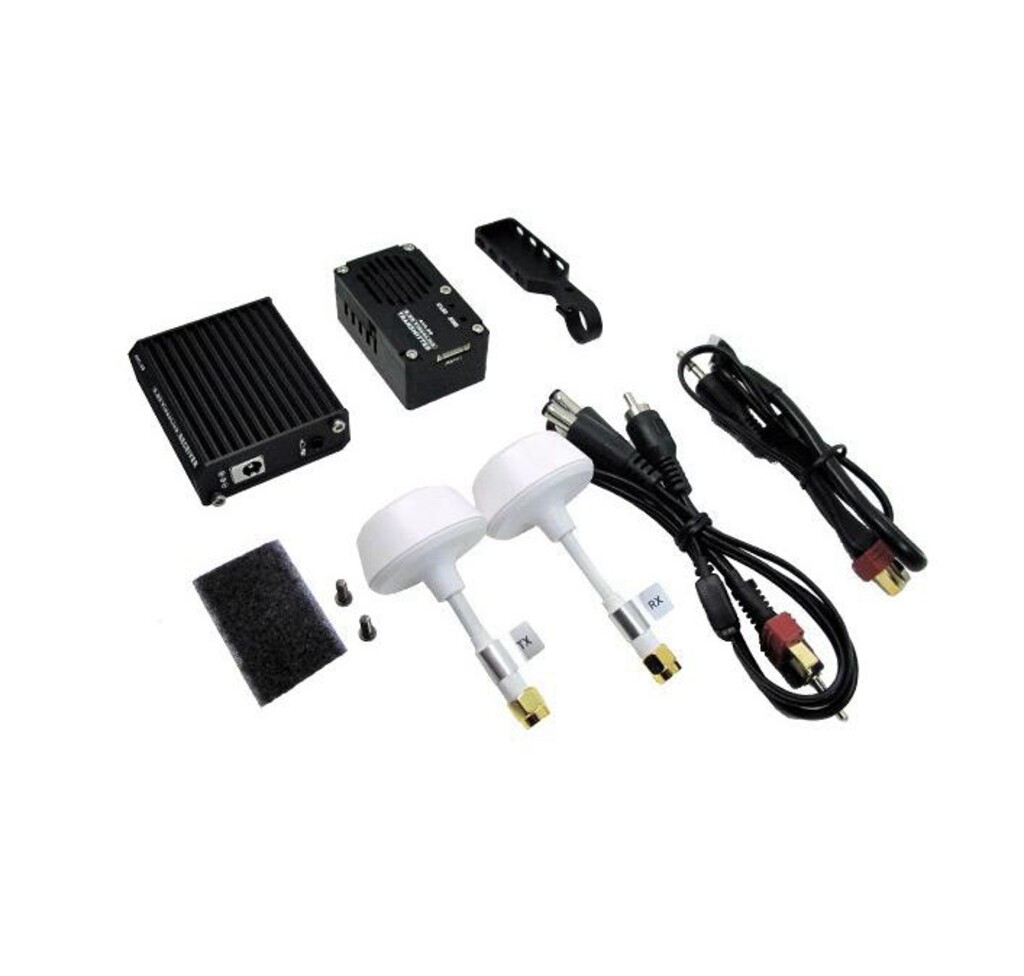

The Wireless Video Link includes both transmitter (TX) and receiver (RX) modules, working in the ISM frequency band of 5.8GHz (5725-5865MHz). Analogue modulated video signals are sent wirelessly by the TX module to the RX module, and then the video signal will be demodulated and sent to a display. There are 8 wireless channels can be selected when you are using this product.These channels are:CH1-5705MHZ, CH2-5685MHZ, CH3-5665MHZ, CH4-5645MHZ, CH5-5885MHZ, CH6-5905MHZ, CH7-5925MHZ, and CH8-5945MHZ.

The characteristics of this product are: small size, low power consumption and high sensitivity. The product can be used in many applications requiring wireless video communication. When it's used in the aero-modeling hobby, the Wireless Video Link TX will be mounted to the aircraftand the Wireless Video Link RX is connected to a display screen, allowing video signal wireless transmission
