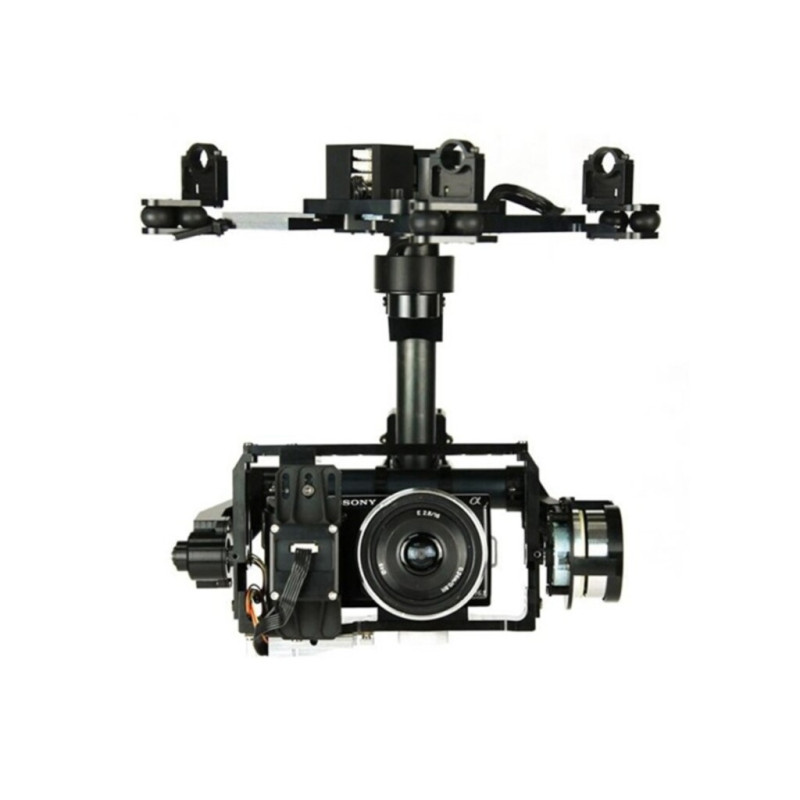

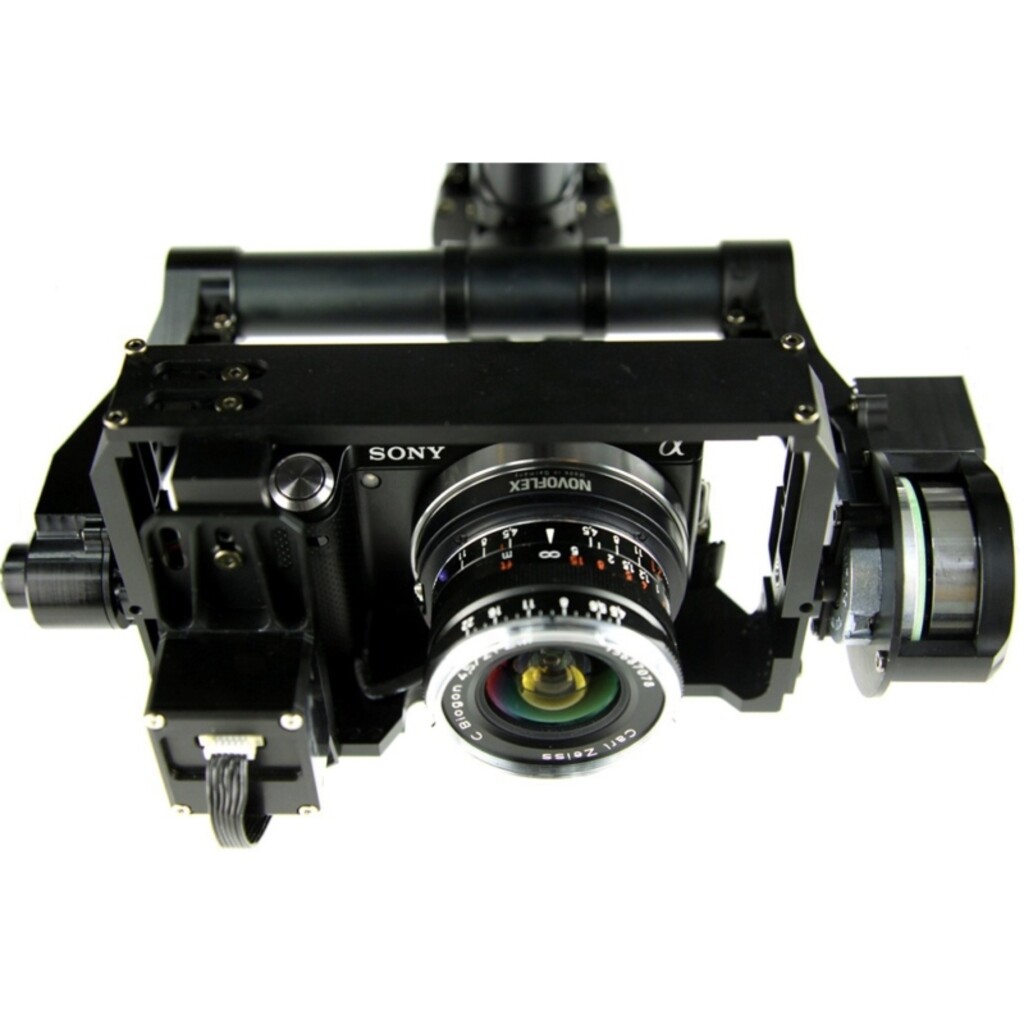

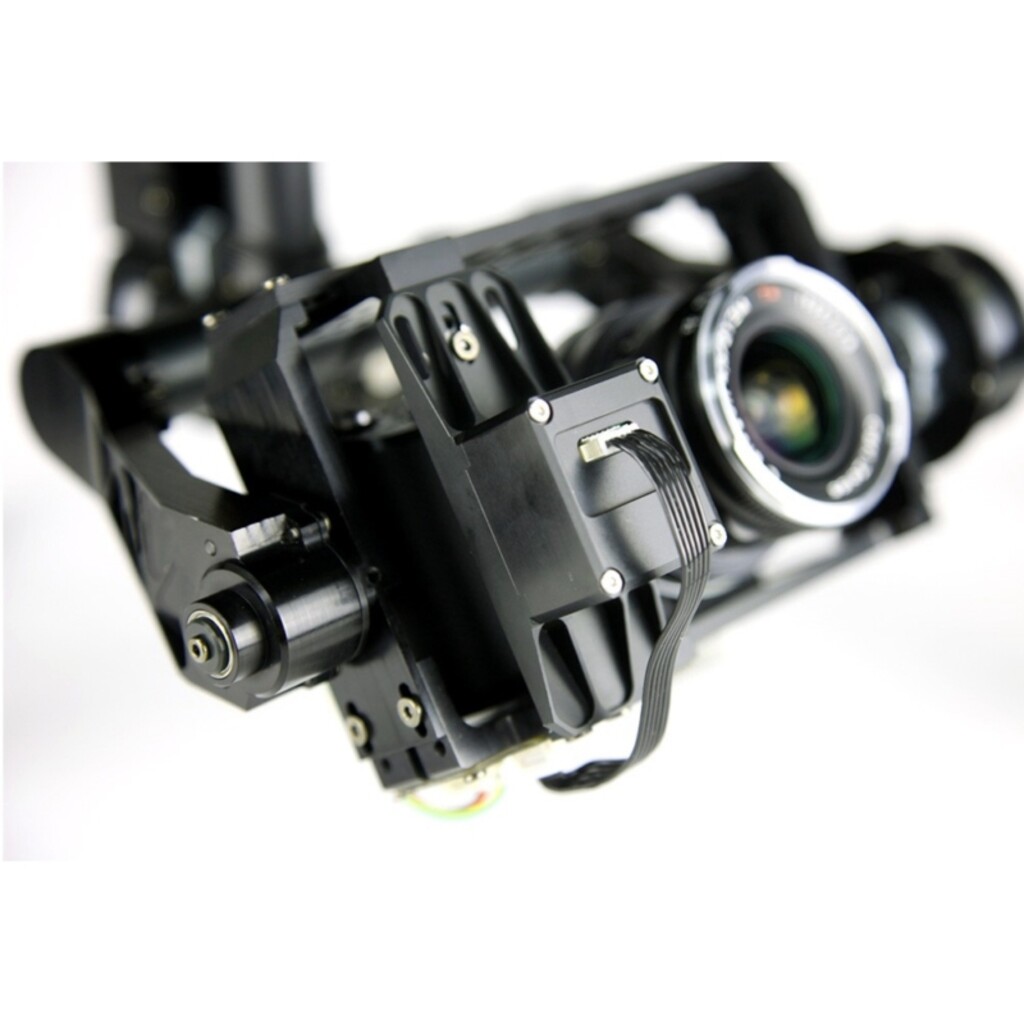

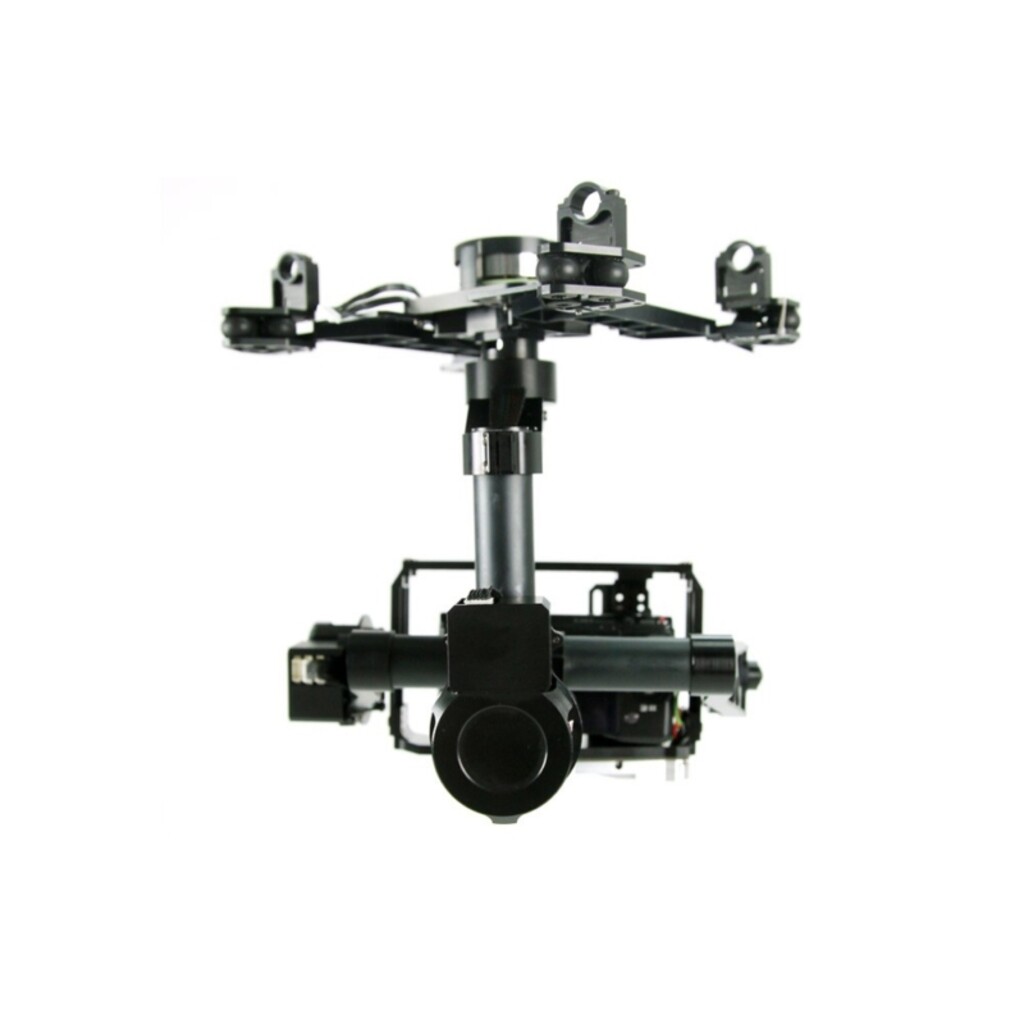

DJI ACC ZENMUSE Z15 GIMBAL SONY NEX7

Ref: 132442
Estoque: Disponível
R$ 6.863,91
Comprar

Features

High Performance 3-Axis Professional Gimbal

The DJI Zenmuse Gimbal is a milestone gimbal system which was developed for professional filming, aerial photography and for commercial use. Even if the aircraft is moving at a high speed, it can still stabilize and control the camera equipment precisely with the highest stability possible. The precision of the control angle is within the range of ±0.05°, so picture or video output will always be exactly how you want it.

Multiple Control Modes

The Zenmuse gimbal system has three types of control modes, which are Orientation-locked control mode, Non Orientation-locked control mode and Back to Mid-point mode (Horizontal mode). These three types of modes can be switched quickly from one mode to another to meet the different requirements of aerial photography. With the perfect mode and easy operation of the stable 3-axis Zenmuse gimbal, users can create excellent aerial shots and video.

3-Axis Rotation Control

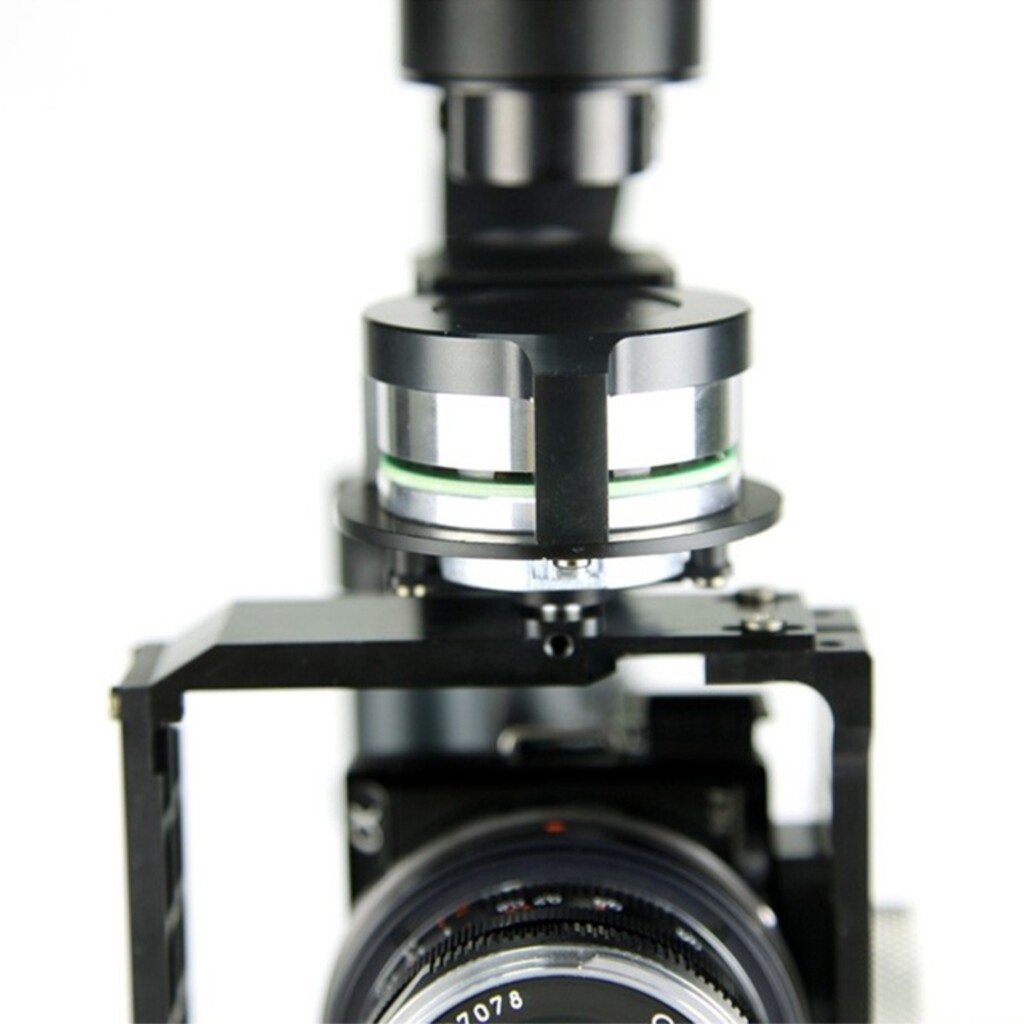

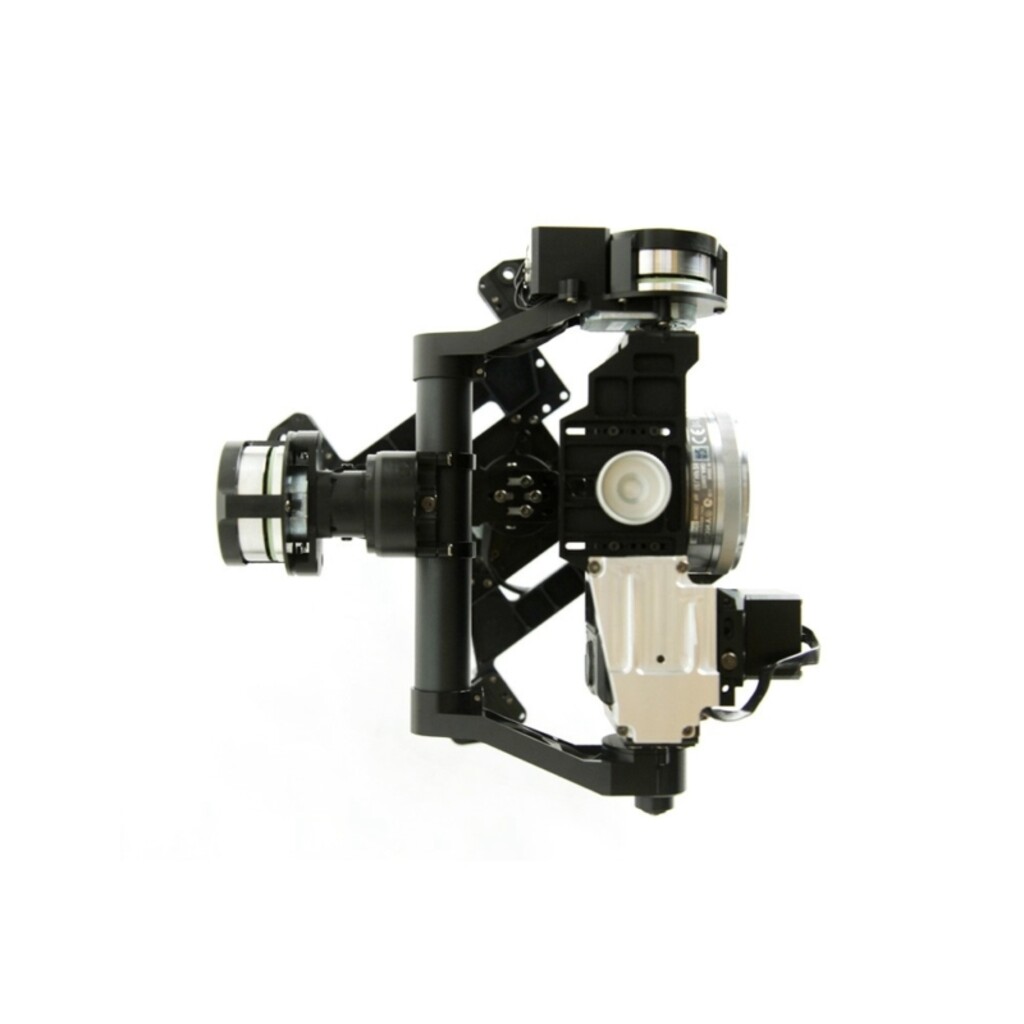

The 3-axis Zenmuse gimbal system has creative design for its mechanical structure. The slip rings inside avoid the complicated and twisted wiring. All the wires of the power and signal lines are integrated into pipes of the Gimbal, which means the axis can rotate without any limitation. The Yaw control could reach ±360°, the Pitch control could reach ±360°, and the Roll control could reach ±40° (±360° mechanic continuous rotation).

Built-In Independent Imu Module

Due to years of dedication, DJI have created a near-perfect attitude-stabilized algorithm, which, together with a high precision induction device, enables perfect attitude control. Without the requirement of extra installation and connection of extra wires, it is also easy to assemble and it can maintain stable flight.

Independent Gimbal Controller

The separate controller available for the gimbal is connected by the CAN wires with the main controller of DJI autopilot system. According to gimbal attitude feedback, it can control the rotation directions and angles high precisely and also communicate and receive real-time control orders from the main controller of the autopilot system.

HDMI-AV Module

In order to minimize the payload of aircraft, the video output module with expanded features like camera shutter is customized to transform HDMI signal to AV with neat wiring, which ensures the smooth and free movement of the 3 axial Gimbal.

S-Bus Receiver Support

The module supports most transmitters and receivers in the market. It provides the Futaba S-Bus receiver with support and it is user-friendly.



General

Built-In Functions

Three Working Modes

Orientation-locked control

Non orientation-locked control

FPV mode (Reset)

Built-in independent IMU module

DJI gimbal special servos drive module

HDMI-AV module

Wireless video transmission support

Camera shutter control support

Wide range voltage input support



Electrical & Mechanical Characteristics

Working Current

Static current: 200mA (@25V)

Dynamic current: 400mA (@25V)

Locked-rotor current: 4A (@25V)



Operating Temperature

10°C ~ 50°C



Weight

Z15-N: 1.25Kg

Z15-G: 1.3Kg



Dimensions

200mm × 200mm × 230mm



Frame Dimensions For Camera (Inside)

Z15-N: 115mm × 75mm

Z15-G: 142mm ×76mm



GCU BEC Output

10A@12V



GCU Wireless Video Transmission Power

1A @12V



GCU Weight

63g



GCU Dimensions

64.2 mm ×34.1mm ×19.5mm



Working Performance

Load Weight (Reference Value)

336g(@Sony NEX-5N with Lens and Battery)

344g(@Sony NEX-5R with Lens and Battery)

417g(@Sony NEX-7 with Lens and Battery)

489g(@Panasonic GH2 with Lumix G14 mm/F2.5 and Battery)

534g(@Panasonic GH2 with Lumix G20 mm/F1.7 and Battery)



Controlled Angle Accuracy

±0.05°



Maximum Controlled Rotation Speed

Pan axis: ±130°/s

Tilt axis: ±130°/s

Roll axis: ±30°/s



Controlled Rotation Range

Pan axis control: ±360° continuous rotation

Tilt axis control: ±360° continuous rotation

Roll axis control: ±40° (±360° mechanic continuous rotation)



Peripheral

Supported Lens Currently

SONY: E 16mm f/2.8(SEL16F28)

Panasonic: Lumix G14 mm/F2.5

Panasonic: Lumix G20 mm/F1.7


Input Power

4S~12S LiPo (Recommend 6S if with S800)



Control Requirement

Four spare receiver channels at least



Assistant Software System Requirement

Windows XP SP3; Windows 7; Windows 8



Regulatory Approvals

FCC (USA)

YES



IC (Canada)

YES



RoHS(EU)

YES
