MR RETORNO DE VIDEO 15CH 700MW 12V

Ref: 131520
Estoque: Disponível
R$ 1.267,25
Comprar

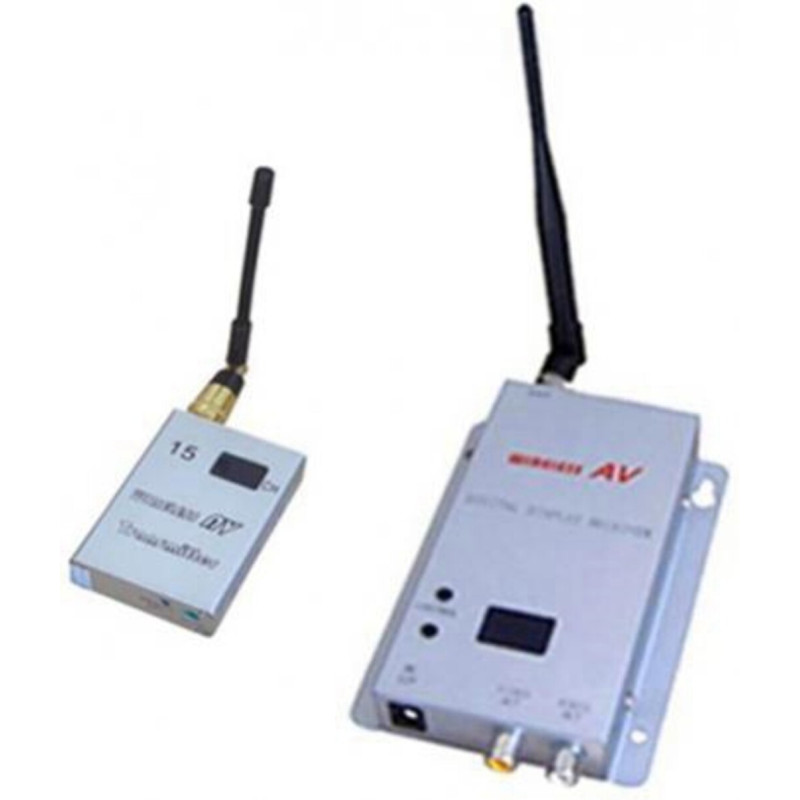

wireless audio video sender transmitter & receiver

The transmitter uses genuine Taiwan Baitong 700MW transmission module, which features small size and light weight. The transmitter with genuine extra fine antenna is very suitable for FPV. And the available transmission distance of 500-1000 meters can satisfy the requirement of the general FPV.


Specification and features:

Transmission mode: point-to-point DRMASS; relay, repeat,movable or fixed.

Advantages:

1. This equipment is specially designed as a multi-type wireless video/audio transmission system according to different situations and functions.

2.It can be configured in various powers according to different demands; various frequency bands; various sizes; wireless transmitter and receiver for different transmission distances.

3.The system boasts complete and practical functions with stable picture transmission and reliable information transfer. It can realize different effects through different combinations thus solving problems that cannot be dealt with via wire transmission.

4.This product line boasts extensive range of application. The disguised appearance is suitable for such departments taking evidence secretly as police. It can also be equipped with specialized infrared source of non-red exposure (close range, distant range) as well as pick-up lens with various focal length and apertures. The products with general appearance apply to the work of wireless picture transmission such as supervision and long-distance information exchange in factories, mines, sea, grassland, etc.

Product Parameters:
Transmitter
Volume
66*45*19mm
Channel
15 adjustable
Voltage/Current
12V 280mA
Operation Temperature
-20 to +60 centigrade
Frequency
0.9-1.2GHz
Power
700mW   27dBM
Wireless range
800M (LOS)
Video output
1Np—p
Audio/Video input port
AV(RCA)
Receiver
Volume
115*80*21mm
Operation Temperature
-20 to +60 centigrade
Voltage/Current
9-12V/250mA
Frequency
0.9-1.5GHz
Sensitivity
-85dBM
Audio/Video output port
AV(RCA)
Accessories
Power adapter
2 pcs
3dB antenna
2 pcs
AV cable
each 1 pcs
User manual
English manual 1 pcs
