FREQUENCY CHECKER HOBBICO 72MH HCAP0340

Ref: 11181
Estoque: Indisponível
R$ 257,31
Comprar

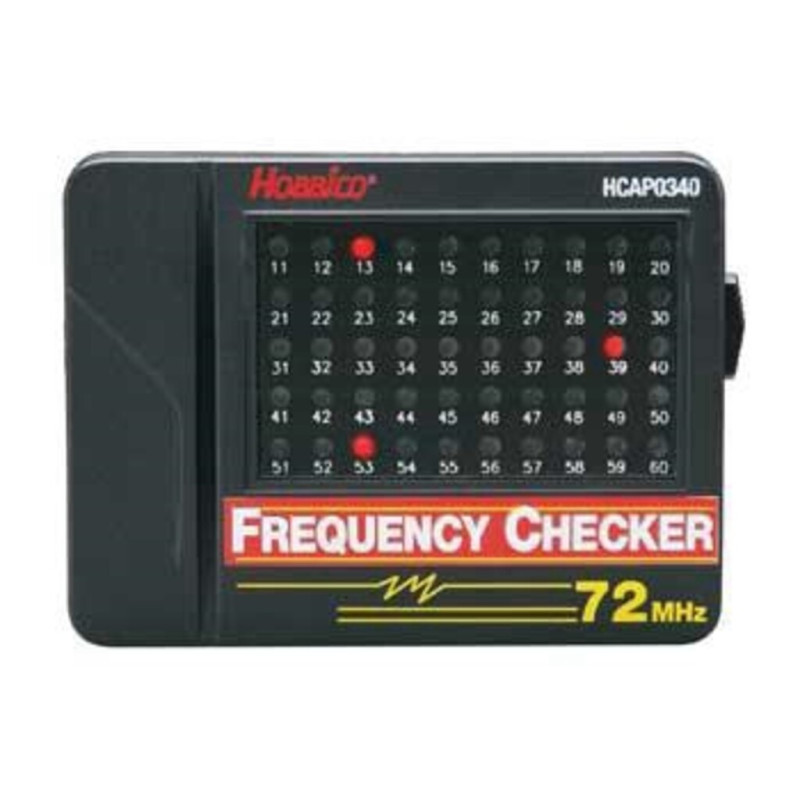

This is the Hobbico 72MHz (channels 11-60) Radio Frequency Checker.


FEATURES:

Automatically scans all 50 R/C frequencies in the 72MHz band and identifies those frequencies in use

Each frequency is shown by a dedicated LED. LED showing channel in use stays lit, and unit continues to scan 300'(91m) range without external antenna, 1000'(305m) with external antenna (not included-available separately) see



COMMENTS

Prevents accidents due to unwanted Rf interference from other modelers' radio equipment

Fits easily in pocket or Flight Box

One year limited warranty


INCLUDES:

One 72MHz Hobbico Radio Frequency Checker


REQUIRES:

3 AAA cells


SPECS:

Dimensions: 3.14" x .94" x 2.36" (80 x 24 x 60mm)

Operational Current: 20-130mA

Frequency Identifiers: 50 Red LEDs

Scan Frequency: 15 seconds

Max Operational Temperature: 32°-104°F (0°-40°C)


COMMENTS:

For clearest reception and best performance do not sit Frequency Checker on ground. Also do not aim transmitter antenna directly at Frequency Checker, as transmitter's weakest signal emits directly from the tip of its antenna.


This Frequency Checker indicates when another R/C transmitter is on a particular channel. It's important to note that the frequency checker is NOT well suited to show very brief, intermittent RF signals that could cause interference and may be present in the environment near or between R/C channels.


When using the external antenna, extra channels might appear in use if the checker is physically located very near a Tx which is emitting a signal. Moving the checker several feet away from the Tx should clear the problem. If used inside buildings which have a lot of steel/metal in the structure, extra channels might inadvertently be shown and NOT using the external antenna may deliver the best results in this situation.


The instruction sheet incorrectly states that "Range is up to 300 meters w/o external antenna" and "Range is up to 1000 meters with external antenna". INSTEAD of "meters" it should say "feet" in both places.


If needing a 75MHz frequency checker

For optional Frequency Checker Antenna
