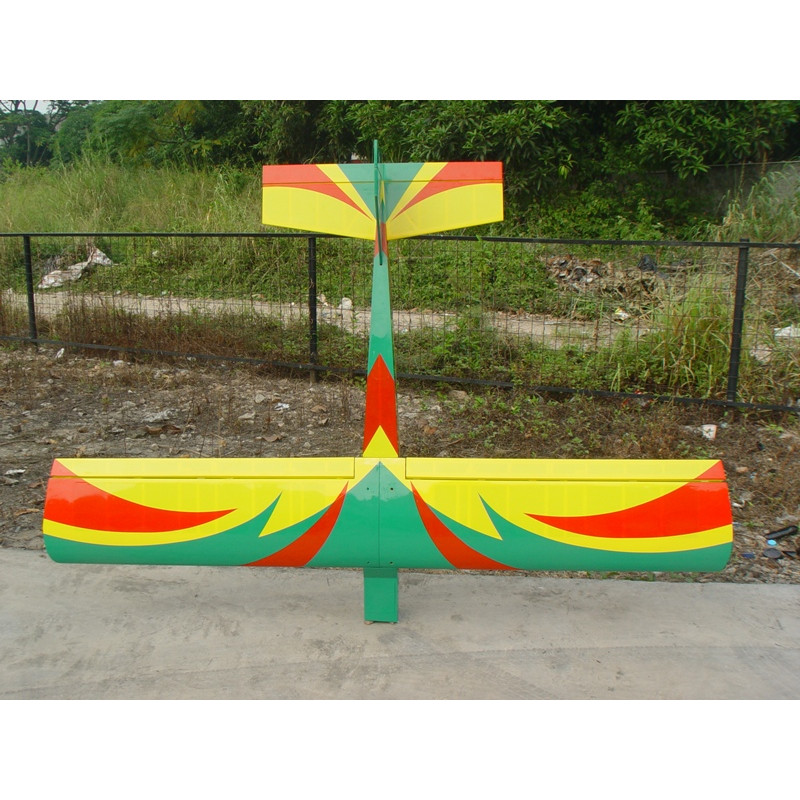

AVIAO PILOT RC TRAINER 90" (2.29M) T-03 GREEN/YELLOW/RED

Ref: 343992

Estoque: Indisponível

R$ 3.203,92

Comprar

The ideal way to get into model flying. An easy to fly, easy to build and even easy to repair high wing box construction trainer.

Ignore noisy dirty and expensive to run glow engines and start with a 20-30cc gas engine, this allows both a more stable and bettery flying plane, as well as providing you with valid equipment for when you are ready to move up to any other style of flying!

SPECIFICATIONS:

Model:	Trainer
Wingspan:	90? (2,290mm)
Length:	58.2? (1,480mm)
Wing area:	1,237 “² (7,980 cm²)
Weight:	10.8lbs (4.9kg)

FEATURES:

Self-correcting high-wing, thick semi symmetrical airfoil design makes for a very stable design, idea for beginners
Special design landing gear mounting. Very durable even with bad landings.
Optional flaps. Can be modified to include flaps in just minutes (pre-prepared aileron splitting)
Tricycle landing gear, simple, reliable and robust!
Design allows for towing gliders. Just take a few minutes to install optional towing release system (not included)
Genuine German Oracover (Ultracote) covering
Highly prefabricated, experienced builders can have air ready in under a day
Two piece plug-in wing for easy transport
Laser engraved motor mounting position, ready for either gas or electric setup
Crash kit: FREE laser cut repair wood for plywood parts on any Pilot-RC plane, just pay shipping

INCLUDED HARDWARE:

Complete air frame with all basic accessories (such as carbon fibre main undercarriage and wing-tubes, fibreglass control horns and hinges)
Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
Wheels and axels
Pre-prepared pushrods with ball links
Plastic spinner
Servo extension wires for aileron, rudder and elevator included

REQUIRED HARDWARE:

Motor: 20-35cc or equivalent electric

Servos: 4 plus throttle // Uses x2 per aileron, x1 per elevator and x1 on rudder (optional +2 for flaps if used)

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, and possibly other small accessories.

PILOT-RC RECOMMENDED HARDWARE:

Servos: Pilot-Rc PY20AL (20Kg – 0,15s at 8,4v) or
Servos: Pilot-Rc PY20AH (22Kg – 0,12s at 8,4v)
Servo arms: Pilot-Rc 1,2? Aluminium arms (included with Pilot-Rc servos)
