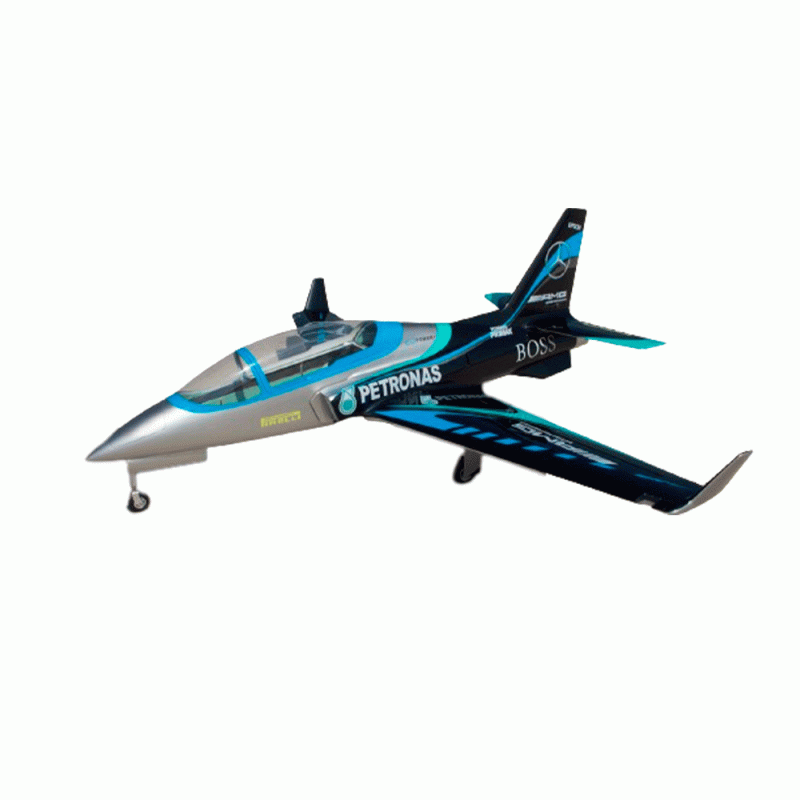

AVIAO PILOT RC VIPER JET 87" (2.0M) 10 BLACK/SILVER/BLUE RACING

Viperjets are synonymous for a great flying jet, and this one really fulfils with expectations. Fast, slow, scale, acrobatic, fun, easy, it simply ticks all the boxes for your next jet!

SPECIFICATIONS:

• Model: Viperjet 2.0
• Wingspan: 86.6? (2,200mm)
• Length: 78.7? (2,000mm)
• Weight: 23.7lbs (10.8kg)

FEATURES:

• Full composite construction, lightweight and strong
• Removable rudder, two piece wing and two piece stabiliser all for easy transport
• Painted outside the mold so no seam lines
• Pre-installed tubes for servo extension leads
• Servo operated gear doors

INCLUDED HARDWARE:

• Complete air frame (including aluminium wing-tubes and fibreglass control horns)
• Pilot-RC electric retracts and electric brakes
• Scale cockpit (minus pilot)
• Dual wall tail pipe (for 80-140N turbines)
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Air trap UAT
• Pre-prepared pushrods with ball links

REQUIRED HARDWARE:

Turbine: 80-140N

Servos: 8 high torque (minimum 20kg) // Uses x1 per aileron, x1 per flap, x1 per elevator, x1 on rudder and x1 for steering

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

PILOT-RC RECOMMENDED HARDWARE:

• Servos: Pilot-Rc PW28AH (28Kg – 0,056s at 8,4v)
• Servo arms: Pilot-Rc 1,2? Aluminium arms (included with Pilot-Rc servos)

• Simple Servo Adjuster – Use single channel for gear and doors

BUILD INFO:

Aileron: 20mm, Rudder: 25mm, Elevator: 20mm. Flap: 35mm for take off and 65mm for landing.

The CG is 160-177mm from the front leading edge on the root of the wing.
